Chevrolet Express 2500 (2012-2017) Engine Camshaft Position Sensor Guide
Having trouble starting your work van or dealing with a rough idle? Your camshaft position sensor might be the problem.
- A failing camshaft sensor will likely trigger codes P0340 or P0341 and cause hard starting, rough idling, or stalling.
- For critical sensors, choosing a proven brand like Delphi (an OE supplier for GM), Standard Ignition, or NGK is highly recommended for reliability.
- Check for damaged wiring near the sensor; a frayed harness can mimic the symptoms of a failed sensor.
- On V8 models, this is often a simple DIY replacement, but on some V6 engines, the sensor is behind the water pump, making the job much harder.
Is Your Camshaft Position Sensor Failing?
A bad camshaft position sensor in your Express van can cause problems that range from annoying to leaving you stranded. Because this sensor is so important for engine timing, a faulty one can make your van run poorly or not at all. The most common sign is the Check Engine Light turning on, but other symptoms are also common.
🎬 Watch: Common symptoms of a bad camshaft position sensorKnown Issues & Bulletins
While no specific recalls for the camshaft position sensor exist for the 2012-2017 Express 2500, General Motors has issued Technical Service Bulletin (TSB) 22-NA-080. This TSB addresses a shudder or surge feeling at steady speeds, which some owners might mistake for a transmission problem. The bulletin suggests this could be caused by a sticking camshaft actuator magnet, which is related to the camshaft position system. Also, mechanics have noted that on some Chevy Express vans, the wiring harness leading to the sensor can get damaged or frayed where it passes over the engine, causing sensor dropouts and fault codes like P0340 and P0341.
🎬 See how to diagnose P0340 and P0341 wiring issuesChoosing the Right Aftermarket Sensor
When it comes to engine sensors, quality and reliability are key. For a workhorse like the Express 2500, you don't want to be replacing the same part twice. Aftermarket brands offer a wide range of quality and price.
Brand Quality Tiers
- OEM & Premium Aftermarket (Delphi, NGK, Standard Ignition): Delphi is a well-known Original Equipment (OE) supplier for GM. Choosing a Delphi sensor is often like getting the same part that came from the factory without the dealership price tag. Standard Ignition (SMP) is another long-standing brand that often manufactures parts for OEM labels, and their parts are generally considered reliable. NGK, famous for spark plugs, also produces high-quality sensors. These brands are your best bet for a fit-and-forget repair.
- Quality Aftermarket (Hitachi, Walker Products, Holstein): Brands like Hitachi, Walker, and Holstein offer a solid balance of quality and price. They manufacture parts to meet or exceed OEM specifications and are a dependable choice for a daily driver or work vehicle.
- Budget-Friendly (Dorman, Global Parts, True Tech, Prenco): These brands provide a more affordable option. However, forum discussions among mechanics and DIYers often caution against using budget sensors for critical components like cam or crank sensors. While they can work, their lifespan and reliability can be inconsistent. A cheap sensor failing prematurely can lead to repeated repair costs and downtime.
Estimated Costs
| Part Type | Price Range |
|---|---|
| New Aftermarket Sensor | $27 - $90 |
| Shop Labor Cost | $100 - $200 |
| Total Professional Replacement | $127 - $290 |

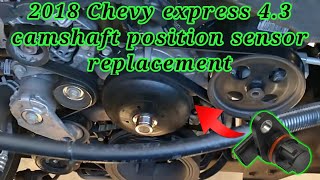

Pro Tip: The camshaft position sensor on some Express van engines (like the 4.3L V6) is located behind the water pump. This makes replacement much more labor-intensive. For the V8 engines (4.8L, 6.0L) common in the 2500, the sensor is typically more accessible at the front or top of the engine, but always verify the location for your specific engine before starting.
Frequently Asked Questions (FAQ)
Where is the camshaft position sensor located on my 2012-2017 Express 2500?
For the V8 engines (4.8L, 6.0L) in these vans, the camshaft position sensor is usually located on the front of the engine block, near the top and slightly to one side, held in by a single bolt. However, on some engine variants like the 4.3L V6, it can be behind the water pump, making it much harder to access. Always confirm the location for your specific engine before beginning work.
Can I replace the camshaft position sensor myself?
Yes, for most V8 models, this is a DIY-friendly job. It typically involves removing the electrical connector, unfastening one bolt, and swapping the sensor. 🎬 Watch: Step-by-step replacement for V8 4.8, 5.3, and 6.0 engines The difficulty is low if the sensor is easily accessible. However, if your engine requires removing other components like the water pump, the difficulty increases significantly.
What happens if I don't replace a bad camshaft position sensor?
Ignoring a failing camshaft position sensor can lead to worsening symptoms. You may experience frequent stalling, very poor fuel economy, and eventually, a no-start condition that leaves you stranded. In some cases, continued driving with incorrect timing signals could potentially cause long-term engine damage.
Do I need to perform a "relearn" procedure after replacing the sensor?
For the camshaft position sensor, a relearn procedure is not typically required. This is more common for the crankshaft position sensor. After installing the new sensor, the computer should recognize it and operate correctly. Clearing the fault codes with a scanner is recommended.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12684186 12623093 213-4689
Typically a single-bolt mount, 3-pin magnetic hall-effect sensor.
