Chevrolet Express 2500 Engine Oil Pan Guide: Leaks, Brands, and Replacement (2012-2017)
If you're seeing oil spots under your work van, this guide will help you choose the right replacement engine oil pan.
- You MUST verify your engine size (4.8L, 6.0L, or 6.6L Diesel) before ordering, as the pans are not interchangeable.
- The most common failures are leaks from the gasket, rust/corrosion on the pan itself, or stripped drain plug threads.
- Aftermarket brands like Dorman and Spectra are affordable and widely used alternatives to expensive OEM parts.
- If replacing the gasket on the original pan, be prepared to drill out the factory rivets holding the old gasket in place.
Is Your Express 2500 Leaking Oil?
The most common reason to replace the engine oil pan on a 2012-2017 Chevy Express is an oil leak. These leaks can come from a few different places. Over time, the gasket that seals the pan to the engine block can get old and brittle, allowing oil to seep out. Another frequent issue is the pan itself. Being at the bottom of the vehicle, it can get hit by road debris, causing cracks or dents. In areas with snow and road salt, the steel or aluminum pan can rust or corrode, leading to pinhole leaks. Finally, the drain plug threads can get stripped from repeated oil changes, making a proper seal impossible.
Match Your Engine!
The single most important step is to buy an oil pan that matches your van's engine. The 2012-2017 Express 2500 was available with a 4.8L V8, a 6.0L V8, and a 6.6L Duramax diesel engine. Each engine uses a different oil pan. Ordering the wrong one will mean it won't bolt up to your engine. Always verify your engine size before purchasing a new part.
Symptoms of a Failing Oil Pan
- Oil Puddles: The most obvious sign is dark brown or black oil spots on the ground where you park.
- Low Oil Light: If the leak is bad enough, your oil level will drop and trigger the low oil pressure warning light on your dashboard.
- Burning Oil Smell: Oil leaking onto the hot exhaust pipes will create a distinct burning smell.
- Visible Damage: You might be able to see rust, cracks, or dents on the pan if you look underneath the engine.
Choosing an Aftermarket Oil Pan: Dorman vs. Spectra
When replacing your oil pan, you don't have to buy an expensive part from the dealer. Aftermarket brands offer a good balance of quality and price. For the Express 2500, Dorman and Spectra are two common choices.

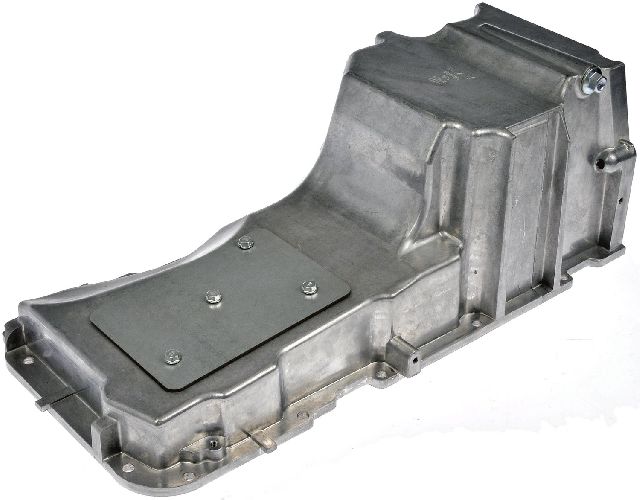

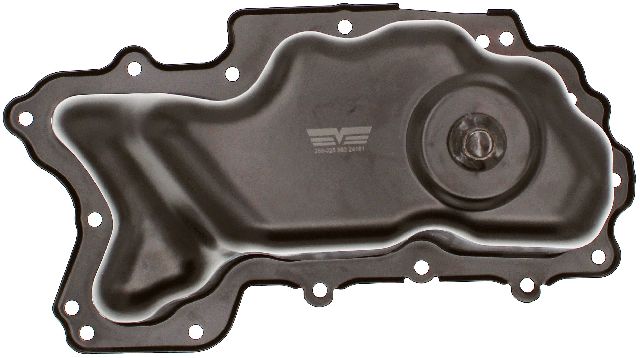

- Dorman: Dorman is a well-known aftermarket company that makes a huge variety of parts. Their oil pans are designed to be direct replacements for the original and often include a new drain plug. They are widely available and are a popular budget-friendly option.

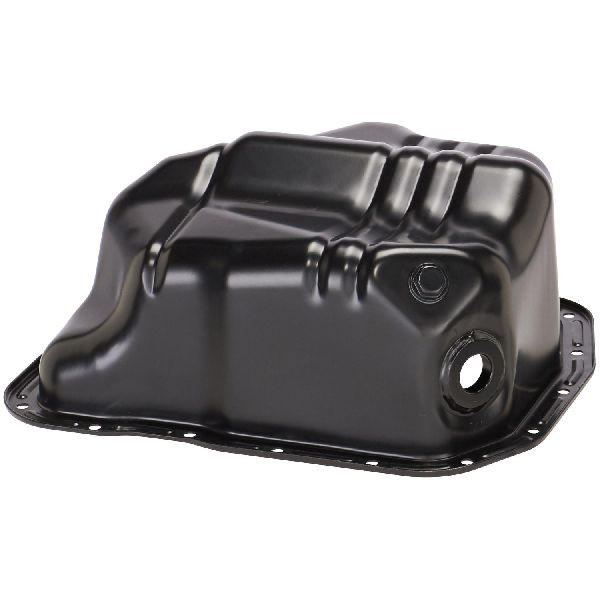

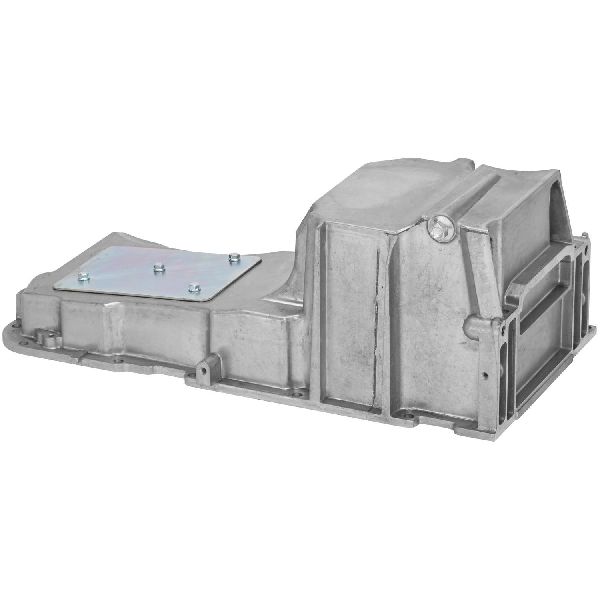

- Spectra Premium: Spectra is another trusted brand, often known for fuel tanks and cooling parts. Their oil pans are also made to OE specifications and often feature an anti-corrosive coating, which is a great benefit if you live in an area where road salt is used.
Honest Assessment: For a part like an oil pan, both Dorman and Spectra are generally considered reliable, cost-effective choices. Some mechanics and DIYers have preferences based on past experiences, but many forum discussions note that the quality is often very similar. Sometimes, the parts may even come from the same factory. The most important thing is to inspect the new pan for any defects before you start the installation.
Replacement Cost
The cost to replace the engine oil pan on a 2012-2017 Express 2500 depends on who does the work. The job is moderately difficult and can be done by a skilled DIYer, but it takes time.
🎬 See this walkthrough for replacing a 6.0L engine oil pan.| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Pan (Dorman, Spectra) | $75 - $246 |
| Shop Labor | $300 - $550 |
| Total Professional Replacement | $375 - $796 |
Frequently Asked Questions (FAQ)
Is the gasket bad or the whole pan?
First, clean the engine and oil pan area thoroughly with a degreaser. Then, run the engine for a few minutes and check for the source of the leak. If oil is only seeping from the edges where the pan meets the engine, you might only need a new gasket. However, if the pan is rusted, cracked, or the drain plug is stripped, you must replace the entire pan.
Do I have to drill out rivets to replace the gasket?
Yes, if you have the original factory oil pan, the gasket is held on by a few rivets. You will need to use a drill to remove these rivets before you can take the old gasket off the pan. 🎬 Watch: Step-by-step guide to replacing your Express oil pan gasket. The new gasket does not need to be riveted on; the bolts will hold it in place.
Can I reuse my old oil pan bolts?
It is generally safe to reuse the original oil pan bolts as long as they are clean and not rusted or damaged. Make sure to clean the threads before re-installing them. Always tighten the bolts to the manufacturer's specified torque (18 ft-lbs for many GM V8s) in the correct sequence to ensure an even seal.
What is RTV sealant and where do I use it?
RTV (Room Temperature Vulcanizing) sealant is a type of silicone gasket maker. For this job, you'll need to apply a small dab of RTV at the four corners where the engine block casting meets the front and rear covers. 🎬 Watch: How to apply RTV sealant during a gasket replacement. This helps seal the small gaps that the main gasket can't cover completely.
Helpful Videos
Technical Specifications
OEM Part Numbers: Varies by engine type (4.8L, 6.0L, 6.6L)
Material: Typically cast aluminum for gas V8 engines. The original gasket is riveted to the pan. Replacement requires disconnecting oil cooler lines and a wiring harness.
