A/C Expansion Valve for the 2012-2017 Kia Rio: A Complete Guide
If your Kia Rio's A/C is blowing warm, the expansion valve could be the problem; here's what you need to know.
- A failing expansion valve on a 2012-2017 Kia Rio will typically cause warm air or inconsistent cooling.
- Replacement is not a DIY job; it requires a professional to handle the refrigerant evacuation and recharge.
- Quality aftermarket brands like Four Seasons and Global Parts are a cost-effective alternative to OEM parts for this component.
- Always replace the receiver/drier when you replace the expansion valve to ensure system longevity.
Symptoms of a Failing A/C Expansion Valve
When the A/C expansion valve in a 2012-2017 Kia Rio starts to fail, the signs are usually related to poor cooling performance. You might notice one or more of the following issues:
- Warm Air from Vents: This is the most common symptom. 🎬 Watch: Diagnosing a Kia Rio blowing warm air If the valve is stuck closed, it restricts refrigerant flow, and your A/C will only blow warm or ambient temperature air.
- Inconsistent Cooling: The air from your vents may cycle between cold and warm. This can happen if the valve is not regulating the refrigerant flow correctly.
- Frost on A/C Components: If the valve is stuck open, it can allow too much refrigerant into the evaporator. This can cause the evaporator or the A/C lines to freeze, and you might even see frost on the vents.
- A/C Compressor Runs Constantly: A faulty expansion valve can sometimes cause the A/C compressor to run continuously, which can lead to further damage.
- Hissing Sounds: A hissing noise coming from the dashboard area could indicate that the valve is struggling to let refrigerant pass through.
No Specific Recalls or TSBs, But Check for Others
While there are no specific recalls or Technical Service Bulletins (TSBs) for the A/C expansion valve on the 2012-2017 Kia Rio, it's important to be aware of other related notices. There was a significant safety recall (NHTSA ID: 23V-652) for a potential electrical short in the Hydraulic Electronic Control Unit (HECU) that could cause an engine compartment fire. Additionally, Kia issued several service actions to improve A/C logic (SA149, SA150, SA180), but these were software updates, not part replacements. Always check for open recalls on your vehicle.
Choosing the Right Aftermarket Expansion Valve
For the 2012-2017 Kia Rio, the original equipment (OEM) expansion valve is a reliable choice, but quality aftermarket options from brands like Four Seasons and Global Parts Distributors (GPD) offer a more affordable solution. Since the expansion valve is a relatively simple mechanical part, a good quality aftermarket unit is often a practical choice.
- Four Seasons: A well-known aftermarket brand, Four Seasons provides parts that are engineered to meet or exceed original specifications. Their kits often include the necessary O-rings and seals for installation.

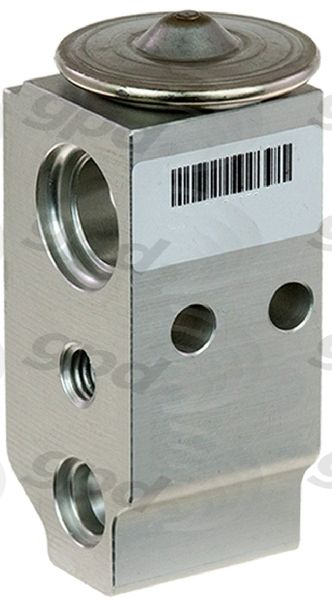

- Global Parts Distributors (GPD): GPD is another popular aftermarket supplier. Their parts are durability tested and designed to match the fit and function of the original.
Pro Tip: When replacing the expansion valve, it's highly recommended to also replace the receiver/drier (or accumulator). The A/C system will be open, and replacing the drier at the same time is a best practice that helps ensure a long-lasting repair.
🎬 See this walkthrough for replacing the expansion valve and condenser| Part Type | Estimated Cost |
|---|---|
| New OEM Part | $191 - $251 |
| New Aftermarket Part | $27 - $73 |
| Shop Labor | $87 - $128 |
| Total Professional Replacement (Aftermarket) | $114 - $201 (plus refrigerant service) |
Frequently Asked Questions (FAQ)
Can I replace the A/C expansion valve myself?
This is not a recommended DIY job for beginners. Replacing the expansion valve requires specialized tools, including a machine to safely evacuate the refrigerant from the system and then recharge it after the repair. Handling refrigerant is regulated and can be dangerous if done incorrectly. This job is best left to a qualified mechanic.
Why is my A/C still not cold after replacing the expansion valve?
If the A/C is still not working, there could be other issues. Common problems on the Kia Rio include refrigerant leaks, electrical issues with the climate control module, or a faulty A/C compressor. A proper diagnosis from a professional is needed to identify the exact cause.
🎬 Watch: Troubleshooting and recharging the Kia Rio A/C systemIs it okay to buy a cheaper aftermarket expansion valve?
Yes, for a part like an expansion valve, quality aftermarket brands like Four Seasons or Global Parts are generally reliable and can save you a significant amount of money compared to the OEM part. They are designed to meet the original specifications for fit and function.
What is the OEM part number for the 2012-2017 Kia Rio expansion valve?
The primary OEM part number for the A/C expansion valve that fits the 2012-2017 Kia Rio is 97626-1R000. There may be other superseded numbers like 97626-1W100, so it's always best to verify fitment with your vehicle's VIN.
Helpful Videos
Technical Specifications
OEM Part Numbers: 97626-1R000 97626-1W100
Block Type, Aluminum Construction, O-Ring Inlet/Outlet.
