2012-2019 Audi A6 A/C Receiver Drier and Desiccant Element Guide
Keep your A6 air conditioning blowing cold by understanding this small but critical A/C system part.
- The receiver drier MUST be replaced any time the A/C system is opened for repairs.
- This is not a DIY job; it requires a full A/C system evacuation and recharge by a professional with specialized equipment.
- Symptoms of a bad drier can overlap with a more common Audi A6 issue: a failed A/C pressure sensor. Proper diagnosis is essential.
- The high labor cost makes it wise to use a quality replacement part, even if it's a budget-friendly aftermarket brand.
Is Your Audi A6 A/C Not Blowing Cold?
If your 2012-2019 Audi A6's air conditioning isn't performing like it used to, you might have a problem with the A/C system. While several parts can cause issues, a failed A/C receiver drier is one possibility. This component is a service item, meaning it has a limited lifespan and must be replaced whenever the A/C system is opened for repairs, like when replacing a hose or the compressor.
A Note on A/C Pressure Sensors
Before assuming your receiver drier is bad, be aware that a very common issue for the 2012-2019 (C7) Audi A6 is a faulty A/C pressure sensor. This sensor can fail and tell the system to shut off the compressor, resulting in warm air from the vents. This is often a simpler and cheaper repair, so proper diagnosis is key.
🎬 Watch: How to replace a faulty A/C pressure sensor yourself.Symptoms of a Failing A/C Receiver Drier
A bad receiver drier can cause several problems. Look out for these common signs:
- Weak or No Cold Air: This is the most frequent symptom. A clogged drier can block the flow of refrigerant, preventing the system from cooling properly. 🎬 Watch: Troubleshooting an Audi A6 that blows warm air.
- Musty or Moldy Smell: When the desiccant becomes saturated with moisture, it can't absorb any more. This can lead to mold growth inside your A/C system, causing an unpleasant smell from the vents.
- Rattling Noises: If the desiccant bag inside the drier breaks apart, you might hear rattling sounds from the engine bay when the A/C is running. This is serious, as the loose desiccant material can travel through the system and cause major damage.
- Visible Frost: In cases of a severe clog, you might see frost or ice forming on the A/C lines or the condenser where the drier is located.
Choosing the Right Aftermarket Part
For the Audi A6, the receiver drier is a desiccant cartridge that fits inside the A/C condenser. 🎬 See this walkthrough on replacing a desiccant element or condenser. You don't always need to buy a whole new condenser to replace it. When shopping for a new aftermarket part, you'll find brands like Four Seasons and Global Parts.
OEM vs. Aftermarket Quality:
The original Audi part is typically made by a high-quality manufacturer like Mahle or Behr. Aftermarket brands offer a more budget-friendly option. For a simple part like a desiccant bag, an aftermarket brand like Four Seasons is often a perfectly acceptable choice. Reviews for Four Seasons A/C components are mixed, with some users reporting good experiences and others viewing them as a lower-tier option. However, the most important factor is that the part is new and installed correctly into a clean, properly serviced A/C system.
Pro Tip: The labor to replace the receiver drier is the most expensive part of the job because it requires a full A/C system service. Because of this high labor cost, it's wise to use a quality part to ensure you won't have to do the job again soon. If your budget allows, a premium aftermarket or OEM part provides extra peace of mind.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Four Seasons, Global Parts) | $13.29 - $24.85 |
| New OEM (Part only) | $40 - $60 |
| Shop Labor (includes A/C evacuation & recharge) | $387 - $568 |
| Total Professional Replacement (Aftermarket Part) | $400 - $593 |
Frequently Asked Questions
Do I have to replace the receiver drier when I replace my A/C compressor?
Yes, absolutely. The receiver drier must be replaced any time the A/C system is opened to the air. Failing to do so will likely void the warranty on your new compressor and lead to premature failure of the new part.
Can I replace the Audi A6 receiver drier myself?
This is not recommended for a typical DIY mechanic. While the part itself may be accessible, the job requires specialized equipment to safely recover the refrigerant from the system before opening it, and then to pull a vacuum and recharge the system with the correct amount of refrigerant and oil afterward. Incorrect service can lead to poor performance and damage to A/C components.
Are there any recalls for the A/C system on the 2012-2019 Audi A6?
Our research found no recalls specifically for the A/C receiver drier or major A/C components for this vehicle range. Recalls issued for these models were related to airbags and other electrical components.
What is an A/C system TSB?
A Technical Service Bulletin (TSB) is a document issued by the manufacturer to help technicians diagnose and repair known common issues. For the A6, Audi issued TSB 2044717 to address a high-pitched whining noise from the A/C, which includes instructions related to the receiver-drier insert. Another TSB for later models points to a faulty compressor regulating valve as a cause for poor cooling, a symptom that can be mistaken for a bad drier.
Helpful Videos

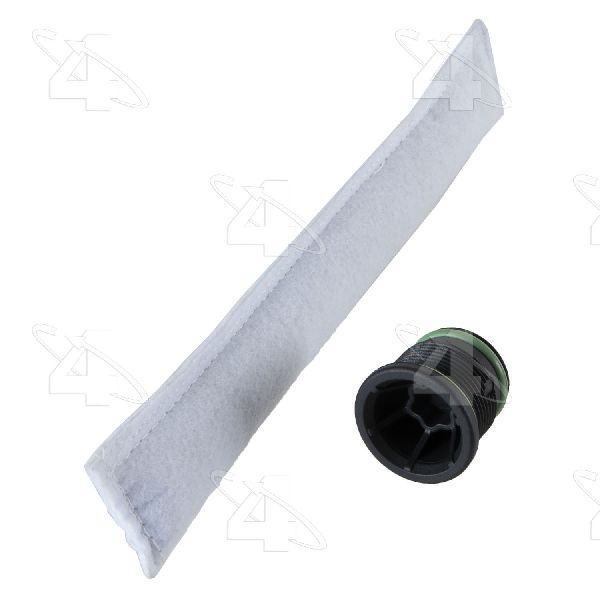

Technical Specifications
OEM Part Numbers: 4G0260403B
This is a desiccant element/cartridge that is integrated with the A/C condenser assembly. It is not a standalone, spin-on canister.
