Ford Explorer Door Lock Actuator Guide for 2012-2019 Models
If your Explorer's power locks are acting up, here is what you need to know before replacing the actuator.
- The most common sign of failure is a single door not responding to power lock commands, often with a buzzing or grinding noise.
- For this Explorer, the actuator is part of the door latch assembly; you must replace the entire unit.
- This is a manageable DIY repair for those with intermediate skills, but requires removing the entire door panel.
- Always confirm you are buying the correct part for the specific door (e.g., Front Left vs. Rear Left) as they are different.
Is Your Ford Explorer Door Lock Failing?
A common issue on the 2012-2019 Ford Explorer is the failure of the door lock actuator. This part is an electric motor combined with the door latch. When it starts to go bad, you might notice one door stops responding to the key fob or the power lock switch. This is a common problem as a vehicle gets older.
Common Symptoms of a Bad Actuator
Watch out for these signs. Usually, only one door will act up at a time.
- Power Locks Don't Work: A single door won't lock or unlock using the power buttons, but the other doors work fine.
- Strange Noises: You might hear a buzzing, grinding, or clicking sound from inside the door when you try to lock or unlock it. This is the motor trying to work but failing.
- Erratic Operation: The door lock might work sometimes and not others. It might lock but not unlock, or it might get stuck.
- 'Door Ajar' Light Stays On: The sensor that detects if the door is closed is inside the latch assembly. If this sensor fails, your Explorer might think a door is open when it's not, which can keep the interior lights on and drain your battery. 🎬 See how to troubleshoot and fix a persistent door ajar light.
Recalls and Known Issues
Ford has issued several recalls and customer service programs for door latches on this generation of Explorer, though they often focus on the latching mechanism rather than just the lock actuator. For example, Customer Satisfaction Program 19N09 extended the warranty on the driver's door latch for some 2011-2014 models that had issues with the 'door ajar' light. A door that won't latch properly is a serious safety issue. While a bad actuator is usually a convenience problem, it's important to make sure your door is latching securely.
Choosing an Aftermarket Replacement
When buying a replacement, you have a few options. The actuator is part of the complete latch assembly, so you will be replacing the whole unit.
- OEM (Motorcraft): This is the original part from Ford. It's the most expensive option but a guaranteed fit.
- Aftermarket (Standard Ignition): Brands like Standard Ignition (also known as Standard Motor Products or SMP) produce parts designed to be as good as the original. They are a trusted name in the aftermarket and offer a good balance of quality and price, often costing significantly less than the OEM part.
Pro Tip: The most common mistake is ordering the wrong part. Double-check that you are buying the actuator for the correct door (e.g., Front Driver Side, Rear Passenger Side). They are not interchangeable.
Cost to Replace a Ford Explorer Door Lock Actuator
The price can vary a lot depending on who does the work.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Part (Motorcraft) | $245 - $275 |
| New Aftermarket Part (Standard Ignition) | $120 - $140 |
| Shop Labor | $170 - $255 |
| Total Professional Repair | $385 - $525+ |
Frequently Asked Questions
Can I replace just the motor inside the actuator?
No. For the 2012-2019 Explorer, the actuator motor is built into the door latch assembly. You must replace the entire latch unit. Some videos show how to separate the actuator from the latch on rear doors, but it is an advanced repair. The standard replacement is the full assembly.
Is this a difficult DIY job?
It is considered an intermediate-level repair. You need to be comfortable removing the interior door panel, carefully peeling back the plastic water shield, and disconnecting electrical plugs and mechanical rods. It typically takes 1.5 to 2.5 hours for someone with some experience.
Do I need any special tools?
You will need a basic socket set (7mm, 10mm), a Torx bit set (T27 is common), and plastic trim removal tools to avoid scratching your door panel. 🎬 Watch this video to learn how to safely remove the door panel. A set of pick tools can also be helpful for releasing clips.
My door won't lock at all. Is it the fuse?
It could be, but it's unlikely if only one door is failing. The power locks for all doors are usually on one or two fuses. If all your doors stopped working at once, check the fuses first. If it's just one door, the problem is almost always the actuator itself or the wiring to that specific door.

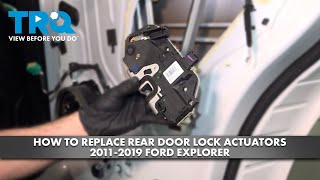

Helpful Videos
Technical Specifications
OEM Part Numbers: DG1Z-5426412-A BF6Z-5426412-B BB5Z7826412A CP9Z-5426412-A EJ7Z-5826412-A
Integrated latch and actuator assembly. Contains electric motor, mechanical latch, and door ajar sensor. Specific fitment for each door location.
