Dodge Grand Caravan (2012-2020) Ignition Knock Sensor Guide
Understand the causes, symptoms, and replacement options for a faulty knock sensor in your 3.6L Grand Caravan.
- The knock sensors are located under the intake manifolds, making replacement a labor-intensive job.
- It is highly recommended to replace both sensors, the wiring harness, and the intake gaskets at the same time.
- Failure is often caused by oil or coolant leaks from the oil filter housing contaminating the wiring.
- Common symptoms include a Check Engine Light (P0325, P0330), poor acceleration, and reduced fuel economy.
Is a faulty knock sensor a serious problem?
Yes, it can be. A bad knock sensor can't report engine knock, which can lead to serious internal engine damage if the condition persists. More commonly, a faulty sensor will send incorrect signals, causing the engine's computer to adjust timing improperly. This can result in poor performance, bad fuel economy, and ultimately, will keep the Check Engine Light on.
Common Failure on the 3.6L Pentastar
On the 2012-2020 Grand Caravan, the two knock sensors are located in the valley of the engine, underneath the upper and lower intake manifolds. This location makes them susceptible to damage from oil or coolant leaks from the nearby oil filter housing, a common issue on this engine. The wiring harness connector is often the first thing to fail due to contamination.
Symptoms of a Bad Knock Sensor
A failing knock sensor will almost always trigger the Check Engine Light. You might also notice other performance-related issues:
- Check Engine Light: The most common symptom, often with codes P0325 (Bank 1) or P0330 (Bank 2). 🎬 Watch: Diagnosing a P0330 knock sensor code on the 3.6L.
- Poor Acceleration: Your van may feel sluggish or hesitant, especially when you press the gas pedal.
- Reduced Fuel Economy: When the engine timing is off, it burns more fuel than necessary.
- Engine Pinging or Knocking: You might hear a metallic pinging or rattling sound, especially when the engine is under load, 🎬 See this breakdown of common bad knock sensor symptoms. like going up a hill.
Choosing the Right Aftermarket Knock Sensor
Because replacing the knock sensors on the 3.6L engine is a labor-intensive job that requires removing the intake manifolds, it's critical to choose a quality part to avoid doing the job twice. While Mopar is the original equipment manufacturer, several aftermarket brands offer a reliable alternative.
Brand Quality Tiers

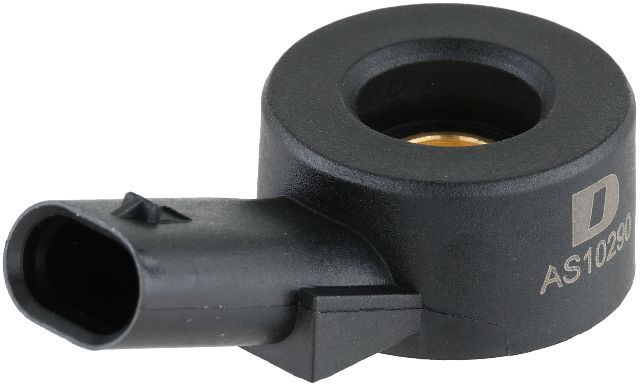

- Premium Aftermarket (Delphi, NGK/NTK, Standard Ignition): These brands are often original equipment suppliers to many automakers and have a strong reputation for quality and reliability. They are engineered to meet or exceed OEM specifications and are a trusted choice for a difficult-to-access part like this.
- Quality Aftermarket (Dorman, Walker Products, Holstein): These brands provide a good balance of value and quality. Dorman sometimes offers kits that include the sensor and a new wiring harness, which is a smart replacement given the common failure of the harness.
- Value-Oriented (Global Parts, Crown Automotive): These brands offer a cost-effective solution. They can be a good choice for a budget-conscious repair, but for a labor-intensive job, investing in a higher-tier brand for long-term peace of mind is often recommended.
Pro Tip: Replace the Harness and Gaskets
Since you have to remove the upper and lower intake manifolds to access the sensors, it is highly recommended to replace the intake gaskets at the same time to prevent vacuum leaks. Furthermore, a common point of failure is the wiring harness that connects the two sensors. It's wise to replace the harness along with both sensors to ensure a complete and lasting repair.
Cost to Replace a Dodge Grand Caravan Knock Sensor
The cost can vary significantly based on whether you do the work yourself or take it to a shop. The location of the sensors under the intake manifold makes this a more labor-intensive job than on many other vehicles.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Mopar) Sensor (Each) | $60 - $150 |
| New Aftermarket Sensor (Each) | $19 - $80 |
| Shop Labor Cost | $183 - $350 |
| Total Professional Replacement | $280 - $500+ |
Frequently Asked Questions
Where are the knock sensors located on a 2012-2020 Grand Caravan?
The 3.6L V6 engine has two knock sensors. They are located on top of the engine block, in the valley between the cylinder heads, underneath the lower intake manifold. Sensor 1 (Bank 1) is the rear sensor (closest to the firewall), and Sensor 2 (Bank 2) is the front sensor.
Can I replace just one knock sensor?
While you can replace only the one that has failed, it is strongly recommended to replace both sensors and the wiring harness at the same time. The amount of labor required to access them means you will save significant time and money by doing them all at once, preventing a repeat job if the second original sensor fails soon after.
Is this a DIY job?
For an experienced DIY mechanic, this is feasible. However, it requires significant disassembly, including removing the air intake, throttle body, and both upper and lower intake manifolds. It also involves draining some coolant to remove the oil filter housing, which is part of the procedure. Due to the complexity, many owners will prefer to have a professional shop 🎬 Watch: Step-by-step 3.6L knock sensor replacement walkthrough for DIYers. perform the replacement.
Are there any recalls for this issue?
As of early 2026, there are no specific recalls from the NHTSA for the knock sensors on the 2012-2020 Dodge Grand Caravan. Searches for recalls and Technical Service Bulletins (TSBs) did not reveal any official documents directly addressing knock sensor failure, though the issue is a well-documented problem among owners and mechanics.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5149171AA 5033316AB
The 3.6L Pentastar V6 engine uses two knock sensors. Sensor 1 is for the rear bank (Bank 1) and Sensor 2 is for the front bank (Bank 2).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
