Ford Edge Starter Motor (2012-2020): A Comprehensive Guide
If your 2012-2020 Ford Edge won't start, the starter motor could be the culprit; here's what you need to know before you buy a replacement.
- A single, loud click is a classic symptom of a bad starter on a Ford Edge, while rapid clicking usually points to a weak battery.
- Before replacing the starter, always test the battery and check the starter fuse and relay to avoid a misdiagnosis.
- A recall (18V548000) was issued for some 2018 Edge models for improperly secured starter cables, which could pose a fire risk.
- Aftermarket brands like MPA offer a cost-effective alternative to OEM Motorcraft parts, often providing new units for the price of remanufactured ones.
Is Your Ford Edge Starter Failing?
A failing starter on a 2012-2020 Ford Edge doesn't always die suddenly. Often, it gives warning signs. If you notice your Edge is cranking slower than usual, it could be an early sign the starter motor is wearing out. You might also hear a single, loud click when you try to start the engine, which points to a problem with the starter or its solenoid. A grinding or whirring noise during startup is another serious symptom, indicating the starter gear may not be engaging correctly with the engine's flywheel. In some cases, you might experience intermittent starting problems where the car starts fine one day and fails the next. If you see or smell smoke near the engine when trying to start it, this could be a severe electrical issue with the starter and you should stop trying to start the vehicle.
Don't Mistake a Bad Battery for a Bad Starter
Many symptoms of a failing starter are similar to those of a weak or dead battery. A rapid clicking sound, for instance, is a classic sign of a battery that doesn't have enough power to turn the starter motor. Before replacing the starter, it's always a good idea to have your battery tested and check that the battery terminals are clean and tight. This simple step can save you from buying a part you don't need.
Known Issues, Recalls, and TSBs
While there are no widespread recalls specifically for starter motor failure on the 2012-2020 Ford Edge, a recall was issued for some 2018 models (NHTSA Campaign ID: 18V548000). This recall concerned improperly secured power supply cables at the starter and alternator, which could lead to an electrical arc and increase the risk of a fire. Owners of affected vehicles were instructed to have dealers inspect and secure the cables. While no specific Technical Service Bulletins (TSBs) point to a design flaw in the starter itself for this year range, issues like oil or coolant leaks from higher up on the engine can drip onto the starter and cause it to fail prematurely.
Choosing a New Aftermarket Starter: Motorcraft vs. MPA
When it's time to replace the starter, you'll primarily choose between OEM and aftermarket options. For your Ford Edge, this often means deciding between Motorcraft and a brand like MPA (Motorcar Parts of America).
- Motorcraft: As Ford's official parts brand, Motorcraft parts are designed to be a direct replacement for the original components. They are often considered the benchmark for quality and fit. While some Motorcraft parts are new, many are remanufactured to meet original equipment (OE) specifications. Choosing Motorcraft provides a high level of confidence in compatibility and performance.

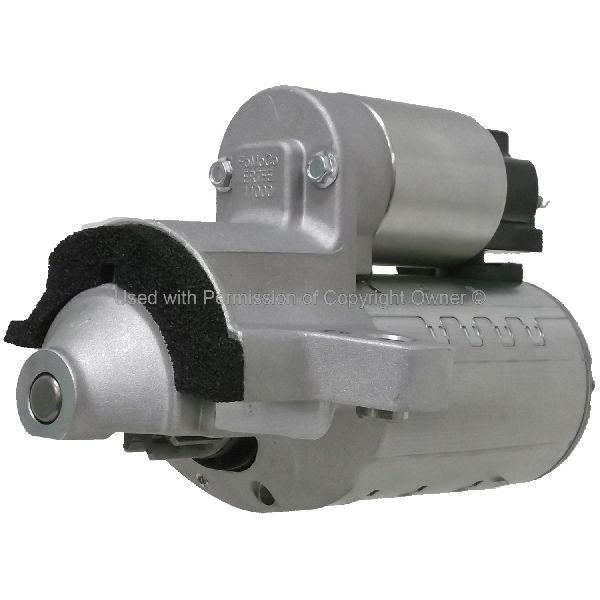

- MPA (and other aftermarket brands): Aftermarket brands like MPA offer a more budget-friendly alternative. These parts are designed to meet or exceed OE specifications for fit and function. MPA, for example, highlights features like double-sealed bearings and aerospace-quality lubricants in their starters. While aftermarket quality can vary, reputable brands provide a reliable and cost-effective solution. Many aftermarket starters are new, not remanufactured, which can be an appealing feature for some buyers.
Pro Tip: New vs. Remanufactured
You will see both "new" and "remanufactured" starters available. A new starter is made entirely from new components. A remanufactured starter has been completely disassembled, cleaned, and had all wear components (like brushes and bearings) replaced with new parts before being reassembled and tested to meet OE standards. Both can be reliable options, but a new aftermarket part can sometimes be priced competitively with a remanufactured OEM part.
Ford Edge Starter Replacement Cost (2012-2020)
The cost to replace a starter motor can vary based on the part you choose and labor rates in your area. The table below provides a general estimate.
| Category | Estimated Cost |
|---|---|
| New Aftermarket Part | $100 - $335 |
| Shop Labor | $147 - $216 |
| Total Professional Replacement | $525 - $654 |
Frequently Asked Questions (FAQ)
Where is the starter located on a 2012-2020 Ford Edge?

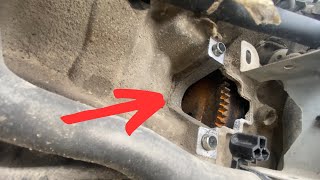

The starter's location can vary slightly depending on the engine. For models with the 2.0L EcoBoost engine, the starter is typically found at the front, on the right side, at the bottom of the engine. 🎬 Watch a 2.0L EcoBoost starter replacement walkthrough. On the 3.5L V6, it is often located on the driver's side, near the top of the engine, underneath some coolant hoses and the air filter housing.
Can I replace the Ford Edge starter myself?
For a DIYer with some mechanical experience and basic tools, replacing the starter is often feasible. The process generally involves disconnecting the battery, removing the air intake assembly for access, disconnecting the electrical wires from the starter, and then unbolting the starter itself. However, access can be tight, especially on the V6 models, making it a moderately difficult job.

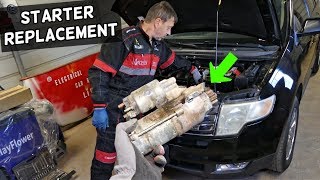

🎬 See how to replace the starter on V6 models.What should I check before replacing the starter?
Always check the battery first. Ensure it is fully charged and the terminals are clean. Also, check the starter fuse and relay. On many Ford Edge models, the starter relay is in the under-hood fuse box and can sometimes be swapped with an identical relay (like the one for the blower motor) for a quick test. 🎬 Find the starter fuse and relay on 2015-2024 models. A faulty brake pedal position switch can also prevent the car from starting on models with push-button start.
What's the difference between a single click and rapid clicking when I try to start the car?
A rapid clicking sound is usually caused by a weak battery that doesn't have enough power to turn the starter. A single, loud click typically means the battery is providing power, but the starter motor itself has failed and is not spinning.
Helpful Videos
Technical Specifications
OEM Part Numbers: K2G1-11000-BC K2GT-11000-BC 8G1T-11000-AC
The starter for the 2012-2020 Ford Edge is a 12-volt, Permanent Magnet Gear Reduction (PMGR) type. Depending on the engine (2.0L, 2.7L, or 3.5L), the pinion gear will have a specific tooth count (commonly 10 or 13 teeth) to properly engage the flywheel.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
