Chevrolet Express 2500 (2012-2021) Fuel Pressure Sensor Guide
Having trouble starting your Express van or noticing poor performance? Your fuel pressure sensor could be the problem.
- A failing fuel pressure sensor can cause serious issues like hard starting, stalling, and significant power loss.
- Check for corrosion on the electrical connector first, as noted in TSB 20-NA-197, before replacing the sensor.
- For a work van, choosing a reliable brand like ACDelco or Standard Ignition is recommended over budget options.
- Common fault codes associated with a bad sensor are P0191, P0192, and P0193.
Is Your Fuel Pressure Sensor Failing?
A bad fuel pressure sensor can cause a range of problems that you'll likely notice while driving. Because these vans are often used for work, ignoring these symptoms can lead to bigger issues and costly downtime. The most common 🎬 Watch this video to learn more about common sensor failure signs. sign is the check engine light turning on.
Symptoms of a Bad Fuel Pressure Sensor
- Check Engine Light: The ECM will trigger a check engine light if the sensor's signal is out of the expected range. Common trouble codes include P0191, P0192, and P0193.
- Hard Starting or No Start: If the ECM gets an incorrect low-pressure reading, it may not send enough fuel for the engine to start properly. You might have to crank the engine for a long time before it starts, or it might not start at all.
- Rough Idle and Stalling: An erratic signal from the sensor can cause the fuel pressure to fluctuate, leading to a rough, shaky idle or stalling, especially when you come to a stop.
- Poor Acceleration and Power Loss: When you need more power, like when accelerating or hauling a heavy load, a faulty sensor might prevent the ECM from delivering the necessary fuel, making the van feel sluggish and underpowered.
- Decreased Fuel Economy: If the sensor causes the engine to run rich (too much fuel), you'll notice a drop in your miles per gallon and may even smell fuel or see black smoke from the exhaust.
Known Issues: TSB 20-NA-197
General Motors issued Technical Service Bulletin (TSB) 20-NA-197 for some 2017-2021 Express vans (among other models). This TSB addresses issues where corrosion or damage at the fuel pressure sensor's electrical connector can cause a check engine light with codes like P0191. The fix involves inspecting the connector, cleaning it, applying dielectric grease, and sometimes replacing the connector itself. Before replacing the sensor, it's wise to check the connector first, as this could be the real source of the problem.
Choosing the Right Aftermarket Sensor
When it comes to replacing the fuel pressure sensor, you have several aftermarket options. For a work vehicle like the Express 2500, reliability is key.
| Brand Tier | Available Brands | Quality & Price Assessment |
|---|---|---|
| Premium Aftermarket / OEM Equivalent | ACDelco | ACDelco is GM's official parts brand and is considered the original equipment manufacturer (OEM). Choosing ACDelco ensures a perfect fit and performance identical to the factory part. While it's the most expensive option, it offers the highest level of reliability. |
| Quality Aftermarket | Standard Ignition (SMP), Dorman | Standard Ignition is a well-respected brand that has been trusted by technicians for years, often providing quality comparable to OEM. Dorman is a popular aftermarket choice that often offers a good balance of price and quality, sometimes even re-engineering parts to fix original flaws. However, Dorman's quality can be inconsistent for some parts, so it's often seen as a step below ACDelco or Standard. |
| Economy Aftermarket | URO Parts | URO Parts is a budget-friendly option. While they often meet or exceed OEM specifications for fitment and are backed by a warranty, they are generally considered an economy brand. For a critical component on a work van, choosing a more established brand for reliability might be a better long-term investment. |
A Note on OEM vs. Aftermarket
For a critical part like a fuel pressure sensor, sticking with a trusted brand is important. While an ACDelco part provides peace of mind, a quality aftermarket sensor from a brand like Standard Ignition can offer similar performance at a better price. Given the TSB regarding connector corrosion, regardless of which brand you choose, applying a small amount of dielectric grease to the new sensor's connector is a smart move to prevent future issues.
Frequently Asked Questions (FAQ)
Where is the fuel pressure sensor located on the 2012-2021 Express 2500?
The fuel pressure sensor is typically mounted directly on the fuel rail, which sits on top of the engine. You will need to remove the throttle body to access it. It's a small sensor with an electrical connector attached.
Can I replace the fuel pressure sensor myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical skills. The process involves disconnecting the battery, relieving fuel system pressure, removing the throttle body, disconnecting the old sensor, and installing the new one. It's crucial to wrap a towel around the sensor when removing it to catch any spilled fuel. Estimated 🎬 Check out this guide on symptoms and how to fix them. time is around 1-2 hours.
Are there any recalls for the fuel pressure sensor on these vans?
There are no specific recalls for the fuel pressure sensor itself on the 2012-2021 gasoline models. There was a recall for some 2011-2014 CNG (Compressed Natural Gas) models related to a high-pressure regulator, which is a different system. A recall for some 2021 models with the 6.6L gas engine involved a battery cable shorting near the fuse block, which could cause electrical issues and, in some cases, fire.
What does the P0191 code mean?
P0191 stands for "Fuel Rail Pressure Sensor Circuit 'A' Range/Performance." This means the signal the ECM is receiving from the sensor is not what it expects to see based on other engine conditions. 🎬 See a detailed breakdown of what causes the P0191 trouble code. It can be caused by a faulty sensor, a wiring issue (like the corrosion mentioned in the TSB), a clogged fuel filter, or a weak fuel pump.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12635273

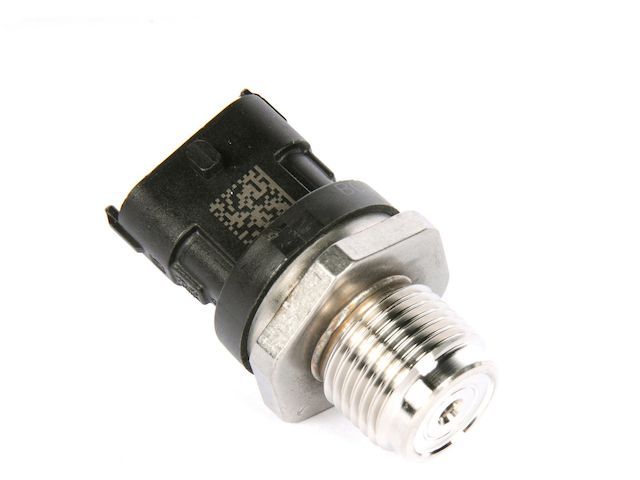

The fuel pressure sensor is a 3 or 4-pin electronic sensor that mounts to the engine's fuel rail.
