A Mechanic's Guide to Ignition Coils for the 2012-2021 Hyundai Veloster
Diagnose and replace a faulty ignition coil on your Veloster to restore engine power and smoothness.
- Ignition coil replacement on a Veloster is a very easy DIY job requiring only a 10mm socket.
- Symptoms include rough idle, power loss, and a flashing check engine light with P0300-P0304 codes.
- Owner consensus strongly recommends using OEM or premium aftermarket brands like NGK, Delphi, or Hitachi for reliability.
- Always replace spark plugs at the same time as ignition coils to prevent premature failure of the new parts.
Is Your Veloster's Ignition Coil Failing?
Ignition coil failure is a common issue on many modern engines as they age, and the Veloster is no exception. When a coil starts to go bad, the symptoms are usually obvious. The most common sign is a rough or shaking engine at idle. You may also notice a significant loss of power, sluggish acceleration, and worse fuel economy. In most cases, a failing coil will trigger the Check Engine Light. If the light is flashing, it indicates a severe engine misfire, and you should pull over and avoid driving the vehicle to prevent potential damage to the catalytic converter.
Engine Misfire Codes (Check Engine Light)
If your check engine light is on, a diagnostic scan will likely show one or more of these codes, which point to a cylinder misfire. The last digit tells you which cylinder is having a problem (e.g., P0301 is cylinder 1).
- P0300: Random/Multiple Cylinder Misfire Detected
- P0301: Cylinder 1 Misfire Detected
- P0302: Cylinder 2 Misfire Detected
- P0303: Cylinder 3 Misfire Detected
- P0304: Cylinder 4 Misfire Detected
Choosing the Right Aftermarket Ignition Coil
When it comes to ignition coils for the Veloster, owner experiences and mechanic recommendations are very clear: quality matters. While budget-friendly options exist, many forum users report issues with poor fitment and premature failure from cheaper, unbranded coils. Sticking with a known brand is a smart investment.
Brand Quality Tiers
- Premium Aftermarket (OEM Quality): Brands like NGK, Delphi, Hitachi, and Standard Ignition (SMP) are often original equipment manufacturers for Hyundai and other carmakers. Their aftermarket parts are generally built to the same high standards as the factory originals and are the most recommended choice for reliability.
- Performance Aftermarket: For Veloster N owners or those with modified engines, brands like Mishimoto offer high-performance coils designed to provide a stronger spark, which can improve performance and reliability under high-boost conditions.
- Standard/Economy Aftermarket: Brands like DriveWire, URO Parts, and True Tech offer a more affordable price point. These can be a viable option for a budget-conscious repair, but may not offer the same longevity or perfect fit as premium brands.
Pro Tip: A great way to diagnose a bad coil is to swap it with a known good one. For example, if you have a misfire code for cylinder 2 (P0302), swap the ignition coil from cylinder 2 with the one from cylinder 3. Clear the codes and run the engine. If the code returns as P0303, you've confirmed the coil is bad.
🎬 Watch: A professional guide to diagnosing Hyundai engine misfires.Cost to Replace Hyundai Veloster Ignition Coils
| Part/Service | Estimated Cost |
|---|---|
| Single Aftermarket Ignition Coil | $28 - $120 |
| Set of 4 Aftermarket Coils | $90 - $250 |
| Single OEM Ignition Coil | $100 - $220 |
| Shop Labor (for all 4) | $75 - $150 |
Brief Installation Guide
Replacing the ignition coils on a 2012-2021 Veloster is one of the easiest DIY jobs you can do. The coils are located directly on top of the engine under the plastic engine cover.
- Remove the plastic engine cover (it usually pulls right off).
- Locate the four ignition coils. Each is held in place by a single 10mm bolt.
- Press the tab on the electrical connector and unplug it from the coil. You may need to slide a small grey locking clip out first.
- Use a 10mm socket to remove the bolt.
- Gently twist and pull the ignition coil straight up and out of the engine. 🎬 Watch: A quick demonstration of removing the ignition coil.
- Installation is the reverse of removal. It's a good idea to replace the spark plugs at the same time, since you already have the coils out.
Known Issues, Recalls, and TSBs
While there are no widespread recalls specifically for ignition coil failure on the Veloster, some related issues are worth noting:
- Recall 182 / TSB 19-01-018H: Some 2013 Veloster Turbo models were recalled for an engine software update to prevent pre-ignition, a condition that could cause engine damage. This is not a coil failure, but related to the ignition process.
- Recall 23V-651000: A large recall was issued for 2012-2015 Velosters due to a fire risk from the Anti-lock Brake System (ABS) module. This is unrelated to the ignition system but is a critical safety issue to be aware of.
Frequently Asked Questions (FAQ)
Do I need to replace all four ignition coils at once?
While you can replace just the single failed coil, it is highly recommended to replace all four at the same time. Ignition coils are subjected to the same heat and wear, so if one has failed, the others are likely nearing the end of their service life. This saves you from having to do the same job again in a few months.
Should I replace my spark plugs with my ignition coils?
Yes, this is a best practice. Worn spark plugs create a larger gap, forcing the ignition coil to work harder and generate a higher voltage to create a spark. This extra strain can cause new coils to fail prematurely. Since you have to remove the coils to access the plugs anyway, doing both jobs at once saves time and labor.
🎬 See this walkthrough for replacing both coils and spark plugs.Are the ignition coils different for Turbo, Non-Turbo, and Veloster N models?
Yes, they are often different. The part numbers for the non-turbo 1.6L, turbo 1.6L, and the 2.0L Veloster N are not the same. It is critical to ensure you are buying the correct coil for your specific engine to ensure proper fit and function.
What tools do I need to replace my Veloster's ignition coils?
The job is very simple and requires minimal tools. You will typically only need a socket wrench with a medium extension and a 10mm socket. If you are also changing spark plugs, you will need a 5/8" spark plug socket.
Helpful Videos
Technical Specifications

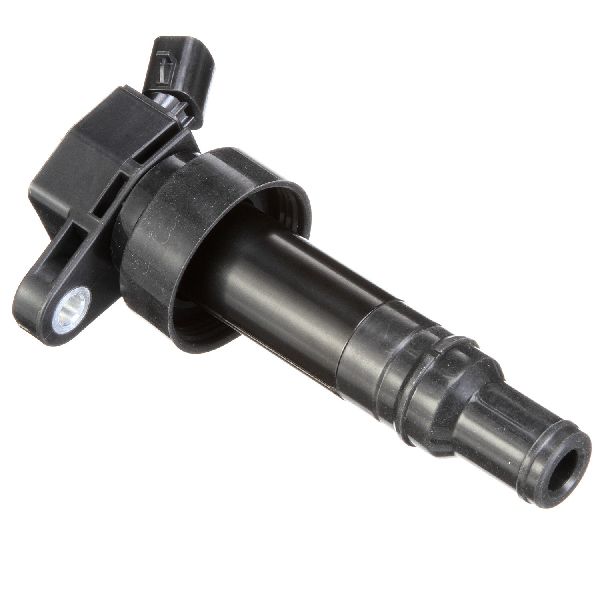

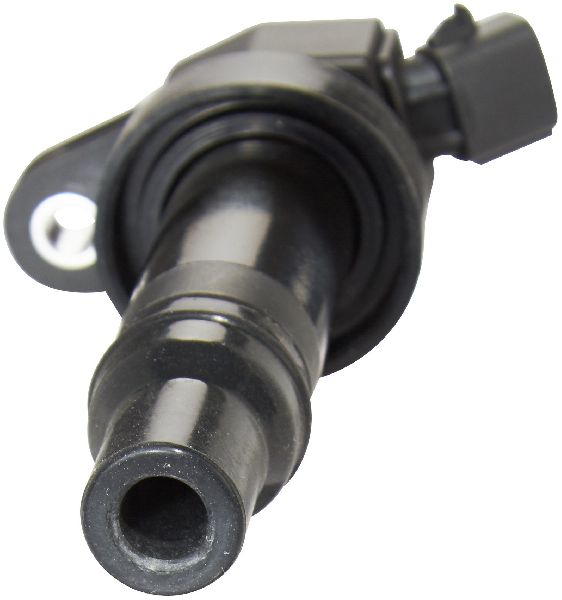

OEM Part Numbers: 27301-2B010 27301-2B100 27301-2B110 27301-2B120 27300-2GGA0
The Veloster uses a coil-on-plug ignition system. Part numbers vary between non-turbo, turbo, and Veloster N models. Always verify the correct part number for your specific vehicle and engine before ordering.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
