Ford F-250 Super Duty (2012-2022) Exhaust Manifold Hardware Replacement Guide
Tired of that ticking noise? Here’s what you need to know about replacing the exhaust manifold hardware on your Super Duty.
- Broken exhaust manifold studs are a very common problem on 2012-2022 F-250s, causing a distinct ticking noise.
- The repair is labor-intensive and costly due to the high probability of needing to extract broken studs from the cylinder head.
- It is strongly recommended to replace the exhaust manifold and gasket at the same time as the hardware to ensure a lasting repair.
- Using high-temperature anti-seize on the new hardware can make future repairs much easier.
Is Your F-250 Making a Ticking Noise?
A ticking or tapping sound, especially when the engine is cold, is the most common sign of an exhaust manifold leak on a 2012-2022 Ford F-250. This happens because one or more of the original steel studs that hold the manifold to the engine have rusted, stretched, or broken. When the engine is cold, the gap lets exhaust escape, creating the tick. As the engine warms up, the metal expands and can sometimes quiet the noise.
Other signs of failing exhaust manifold hardware include:
- A strong smell of exhaust fumes in the engine bay or inside the cab.
- Reduced engine performance and fuel efficiency.
- A Check Engine Light, sometimes with codes related to the oxygen sensors (like P0420 or P0430) which get inaccurate readings from the leak.
- Visible black soot marks around the manifold where it meets the cylinder head.
A Common Problem for Super Duty Trucks
Broken exhaust manifold studs are a well-known issue for Ford Super Duty trucks, affecting both the 6.2L gas and 6.7L Power Stroke diesel engines. The constant heat cycles cause the original factory hardware to become brittle and fail over time. It's not a matter of poor maintenance; it's a common failure point for these hardworking trucks.
Choosing the Right Aftermarket Hardware Kit

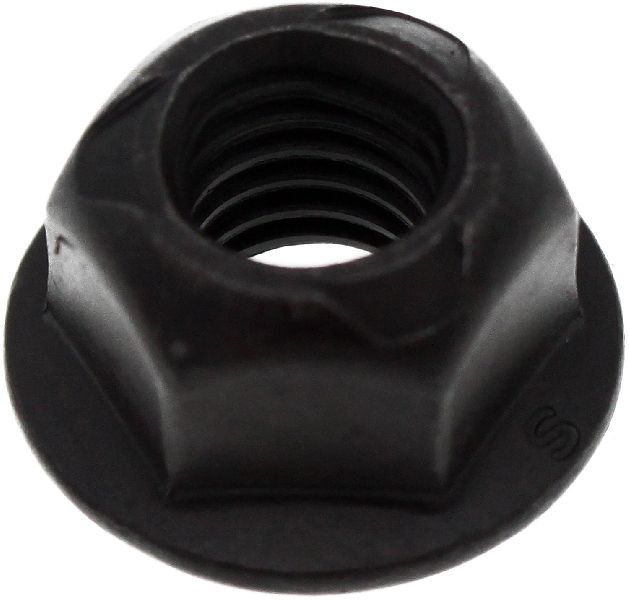

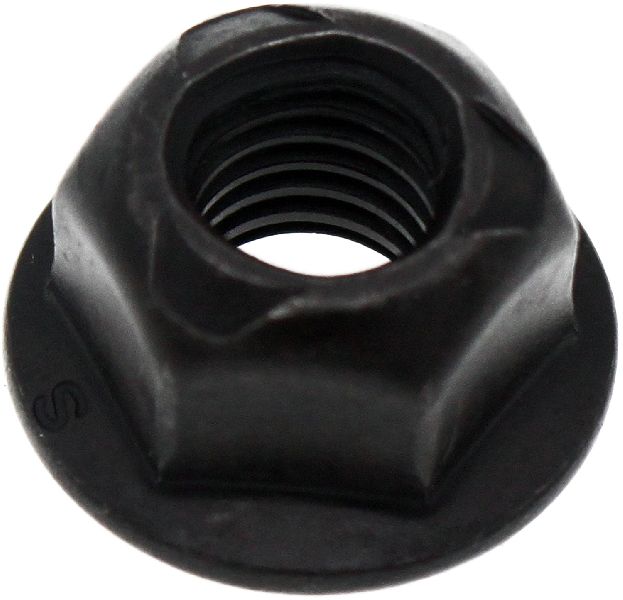

When replacing your exhaust manifold hardware, you have a choice between OEM and aftermarket parts. While OEM hardware is a direct replacement, it may have the same weaknesses as the original parts. Aftermarket brands like Dorman and Motormite often provide kits designed to be "problem solvers."
- Dorman / Motormite: These brands are widely available and offer direct-fit replacement kits. They are a cost-effective solution and often meet or exceed the quality of the original parts. Some owners have used Dorman manifolds and hardware with success. These kits provide a reliable, standard repair.
- Material Choice: The key decision is often the material. Standard steel kits are available, but many owners opt for stainless steel hardware. While not always necessary, stainless steel offers superior corrosion resistance, which can help prevent the studs from seizing or breaking in the future.
Pro Tip: Replace the Manifold and Gaskets Too
If you're going through the difficult job of replacing the hardware, it is highly recommended to replace the exhaust manifold and gaskets at the same time. An old manifold can be warped from heat, which will prevent a new gasket from sealing properly, even with new hardware. Replacing everything at once ensures a proper seal and saves you from having to do the job twice.
Cost of Replacing Exhaust Manifold Hardware
The cost can vary significantly based on how many studs are broken and how difficult they are to remove. The hardware kit itself is inexpensive, but the labor is where the cost adds up.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Hardware Kit | $36.98 - $58.07 |
| New OEM Hardware Kit | $150 - $500 |
| Shop Labor | $400 - $2300+ |
Note: Labor costs can increase dramatically if studs are broken flush with the cylinder head and require special tools for extraction. Some shops charge per broken stud.
Frequently Asked Questions (FAQ)
Why is this repair so expensive if the part is cheap?
The high cost comes from the labor involved. Accessing the manifolds can be difficult, and the primary challenge is dealing with studs that have broken off inside the aluminum cylinder head. These must be carefully drilled out and extracted without damaging the head, which is a time-consuming process requiring skill and special tools. Shops may charge between $800 and $2,700 for the job, depending on the severity.
Can I do this replacement myself?
This is a very difficult DIY job. While unbolting and re-bolting is straightforward, you must be prepared to extract broken studs. This often requires tools like stud extractors, right-angle drills, and sometimes even a welder to attach a nut to the broken stud. If you are not equipped to handle broken, seized hardware, it is best to leave this job to a professional mechanic.
🎬 Watch a DIY guide for removing rusty exhaust manifold studsShould I use anti-seize on the new studs?
Yes. Applying a high-temperature nickel anti-seize compound to the threads of the new studs is highly recommended. This will help prevent them from seizing in the future, making any subsequent repairs much easier.
Are there any recalls for this issue?
No, there are no safety recalls for broken exhaust manifold hardware on these trucks. This is generally considered a maintenance or wear-and-tear issue. However, Ford has issued a Technical Service Bulletin (TSB) for the 6.7L Power Stroke (SSM 50330) acknowledging the problem of broken studs and providing updated part numbers for the repair.
Helpful Videos
Technical Specifications
OEM Part Numbers: W715713-S431 W717172-S900 W701706-S430

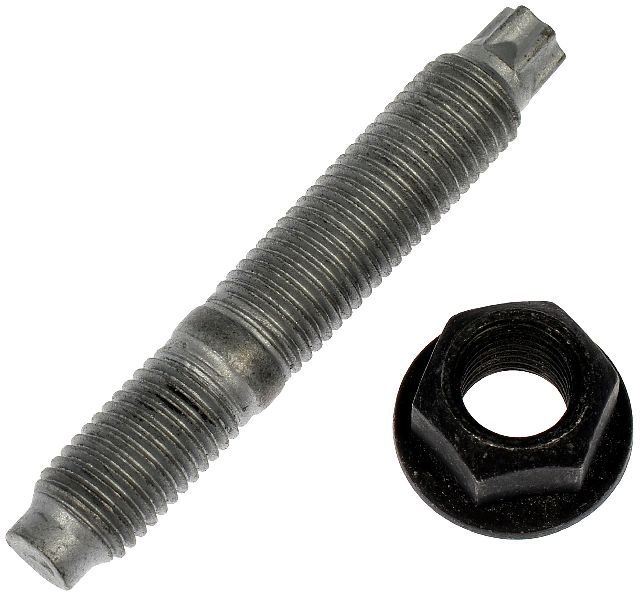

Hardware kits typically include steel or stainless steel studs and nuts. Common sizes for the 6.2L are M10-1.5 x 60mm studs. The 6.7L Power Stroke may use different length studs depending on the cylinder location.
