2012-2022 Kia Forte5 A/C Receiver Drier and Desiccant Element Guide
Understand this key part of your Forte5's A/C to keep it blowing cold and avoid expensive repairs.
- On the 2012-2022 Forte5, this part is a desiccant bag located inside the A/C condenser, not a separate unit.
- It MUST be replaced every time the A/C system is opened for any repair, such as replacing a hose or compressor.
- Replacement is NOT a DIY job; it requires specialized equipment to evacuate and recharge the refrigerant system.
- Symptoms of failure include weak cooling, musty smells, and in severe cases, rattling noises that signal impending compressor damage.
Is it a Receiver Drier or a Desiccant Element?
For the 2012-2022 Kia Forte5, the terms are often used for the same function, but the design is specific. Unlike older cars with a separate metal can called a receiver-drier, your Forte5 has a modern A/C condenser with an integrated desiccant bag. This means the filter and drying material is a small, replaceable cartridge that sits inside the condenser assembly itself. This is important to know when ordering parts, as you are typically buying just the desiccant bag, not a large, separate component.
Symptoms of a Failing Desiccant Element
A bad desiccant element doesn't usually fail on its own but gets clogged or saturated over time. When it can no longer do its job, you might notice:
- Poor A/C Cooling: The most common symptom. If the element is clogged, it restricts refrigerant flow, meaning the air from your vents won't get very cold.
- Musty or Moldy Smell: If the desiccant is saturated and can't absorb moisture, mold and mildew can grow in the A/C system, causing a bad smell from the vents.
- Rattling Noises: In rare cases, the desiccant bag can break apart. You might hear rattling as the debris circulates, which can lead to severe damage to your A/C compressor.
- Foggy Windows: An A/C system struggling with excess moisture may not be able to effectively defog your windows.
Pro Tip: Replace It When the System is Open
The number one rule for A/C work is to replace the desiccant element/receiver drier anytime the system is opened for repair. The desiccant material is designed to absorb moisture, and as soon as it's exposed to the outside air, it starts getting saturated. Failing to replace it during a compressor or hose replacement will lead to premature failure of the new parts.
Choosing an Aftermarket Desiccant Element

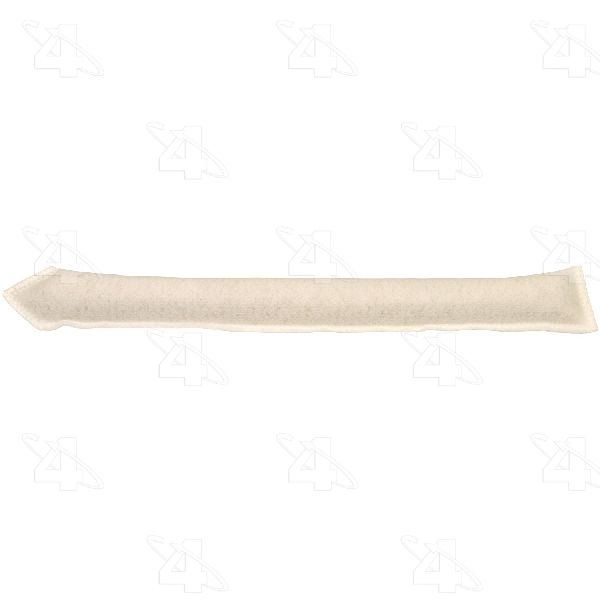

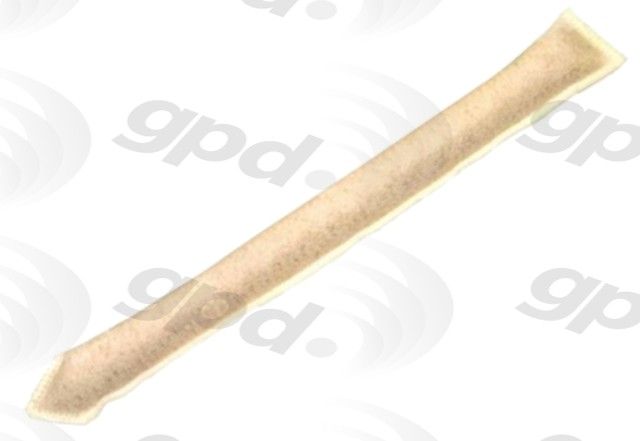

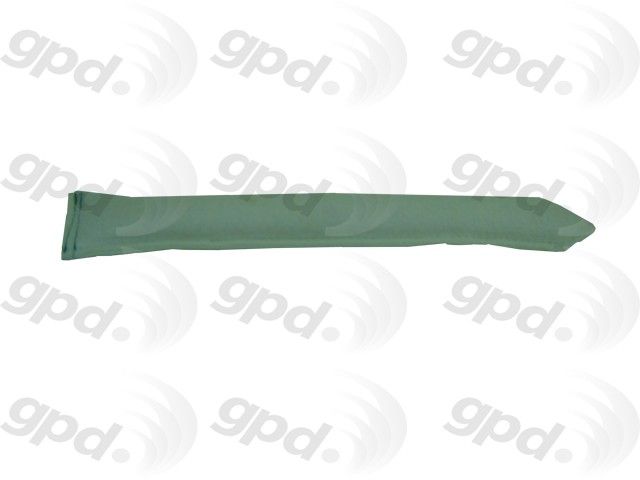

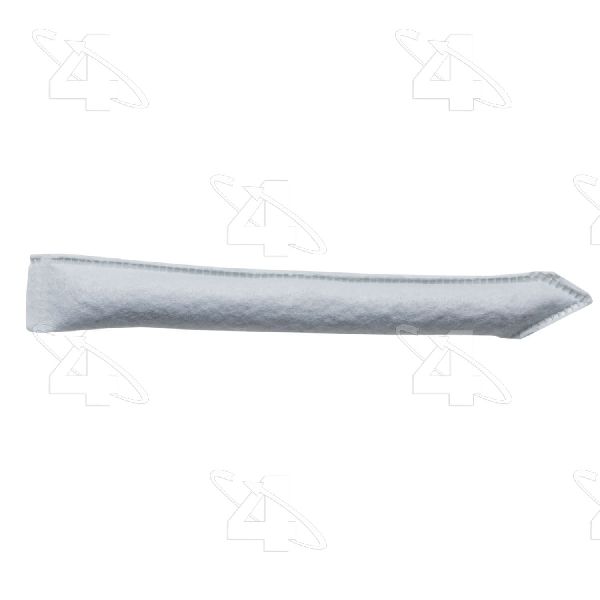

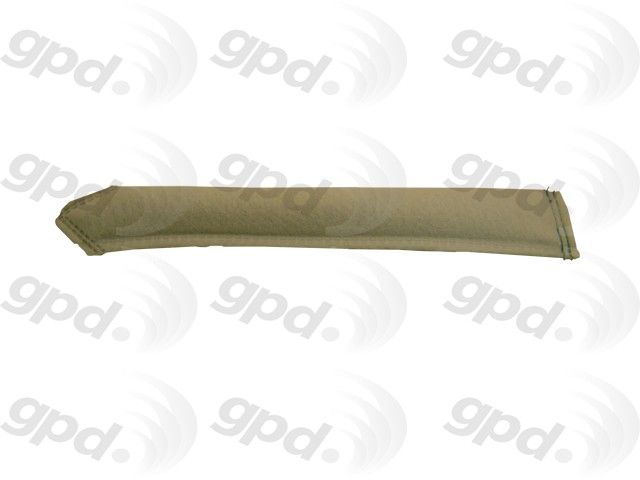

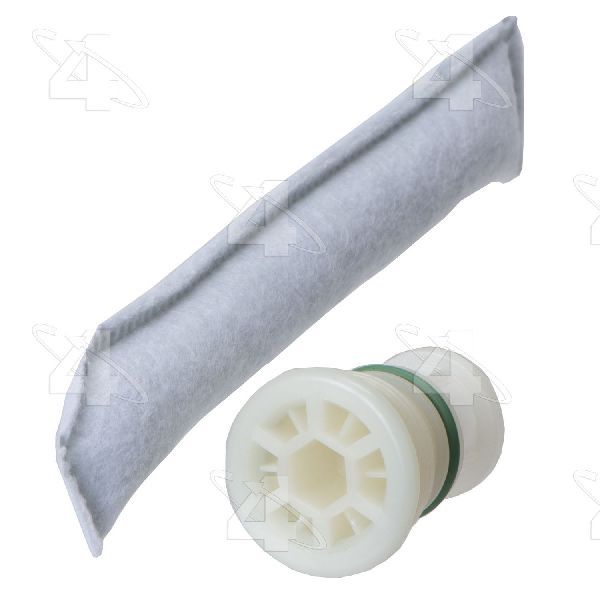

For the Forte5, aftermarket options from brands like Four Seasons and Global Parts are typically just the desiccant bag itself. Given the low price point, these are budget-friendly choices.
- OEM Quality: The original Kia part is integrated with the condenser. To get a new OEM desiccant, you may need to purchase the entire condenser assembly, which is much more expensive but guarantees perfect fit and quality.
- Aftermarket Brands (Four Seasons, Global Parts): These brands provide an affordable alternative. However, online forums and reviews show mixed experiences. Some users report Four Seasons parts can be of lower quality or have fitment issues. There is less specific feedback on Global Parts, but like most budget brands, quality can be inconsistent. For a simple part like a desiccant bag, the risk is lower than for a complex part like a compressor, but it's something to be aware of.
Warning: Professional Installation Required
Replacing the desiccant element is not a simple DIY job. The A/C system is under high pressure and contains refrigerant that is regulated by law. The process requires specialized equipment to safely evacuate the old refrigerant, replace the part, pull a deep vacuum to remove all air and moisture, and then recharge the system with the precise amount of new refrigerant and oil. Attempting this without the right tools and knowledge can damage the system and be hazardous.
Cost to Replace the A/C Desiccant Element
While the part itself is inexpensive, the labor is where the cost lies. The price reflects the need to professionally evacuate and recharge the A/C system.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Desiccant Element | $8 - $37 |
| New OEM Desiccant Element (Often part of the condenser) | $160 - $300+ (for the full condenser assembly) |
| Shop Labor (Evacuate, Replace, Vacuum, Recharge) | $235 - $345 |
| Total Professional Replacement | $250 - $400+ |
Frequently Asked Questions
Can I replace the A/C desiccant element myself?
It is not recommended for a DIYer. The job requires expensive, specialized equipment like a refrigerant recovery machine and a vacuum pump to do it correctly and safely. Opening the A/C system without proper procedure will cause more damage and release refrigerant into the atmosphere.
Is an aftermarket part from Four Seasons or Global Parts good enough?
For a simple desiccant bag, these brands are often an acceptable budget choice. However, be aware that reviews on aftermarket A/C parts are mixed, with some reports of lower quality compared to OEM. Since the labor to replace it is the main expense, using a quality part is good insurance.
Are there any recalls or TSBs for my Forte5's A/C system?
Searches found no specific recalls or Technical Service Bulletins (TSBs) for the A/C receiver drier/desiccant element on the 2012-2022 Kia Forte5. There is a TSB (CLI048) for the A/C compressor's field coil on some 2017-2020 models and a recall for a cooling fan resistor on some 2014 models, but these do not directly involve the desiccant element.
Do I have to replace the whole condenser to replace the desiccant bag?
Not usually. The desiccant bag is designed to be serviceable. A technician can remove a plug on the condenser, pull out the old bag with pliers, and insert the new one. However, if the condenser is old or damaged, or if there has been a major compressor failure that sent debris through the system, replacing the entire condenser (which includes a new desiccant bag) is the best practice.
Technical Specifications
OEM Part Numbers: 97853-2F100
This is a desiccant bag element, typically included with the condenser assembly on OEM parts.
