Lexus IS300 A/C Receiver Drier & Desiccant Element Guide (2016-2022)
Keep your Lexus A/C blowing cold by understanding this critical but often overlooked part.
- The A/C receiver drier (desiccant bag) must be replaced every time the A/C system is opened for service.
- Replacement is not a DIY job; it requires a professional with refrigerant recovery and recharging equipment.
- For this part, quality aftermarket brands like Four Seasons or Global Parts are cost-effective and reliable alternatives to OEM.
- Failure to replace the drier during other A/C repairs can void warranties and lead to catastrophic failure of the new components.
Symptoms of a Failing A/C Drier
A receiver drier doesn't usually fail on its own. Its failure is almost always a consequence of another issue, or it simply becomes saturated after years of service or when the A/C system is opened for repair. When the desiccant can no longer absorb moisture, you might notice:
- Poor A/C Cooling: This is the most common symptom. A saturated drier can't properly manage refrigerant flow, leading to weak cooling performance.
- Foggy Windows: If your windows fog up and the A/C can't clear them, it's a sign the system isn't dehumidifying the air properly, which can point to a bad drier.
- Musty or Mildew Smell: Excess moisture in the system can lead to mold and mildew growth, causing a nasty smell from your vents.
- After an A/C Repair: If another A/C part like the compressor or a hose was just replaced, but the drier wasn't, you may experience poor performance because the old drier is saturated.
Mandatory Replacement Rule
The A/C receiver drier or desiccant bag must be replaced any time the A/C system is opened to the atmosphere. The desiccant material is extremely hygroscopic, meaning it soaks up moisture from the air almost instantly. Leaving the system open for even a few hours can completely saturate the drier, rendering it useless. Most warranties for new A/C compressors are void if the drier is not replaced at the same time.
Choosing the Right Aftermarket Drier for Your IS300

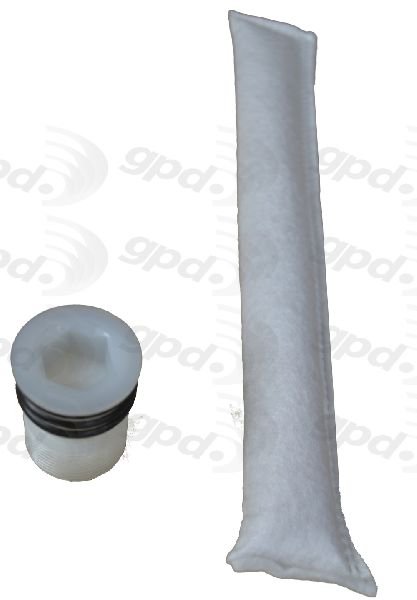

For the 2016-2022 Lexus IS300, the A/C drier is a desiccant bag that fits inside the condenser. You are not replacing a large canister, but just the bag insert. When choosing a replacement, you have options.
- OEM (Denso): The original part is typically made by Denso. It offers a guaranteed fit and the highest quality desiccant material. However, it is also the most expensive option.
- Aftermarket (Four Seasons, Global Parts): For a service part like a desiccant bag, a quality aftermarket brand is a very sensible and cost-effective choice. Brands like Four Seasons and Global Parts are well-known suppliers in the A/C industry. They manufacture parts to meet or exceed original specifications, and their driers use high-quality desiccant to ensure proper moisture absorption. Given the low cost of the part itself, the primary expense of the job is labor, making either of these aftermarket brands a smart financial decision.
Pro Tip: Before ordering, visually inspect your A/C condenser to confirm it has a serviceable desiccant element. It will look like a capped tube on the side of the condenser. Some non-standard aftermarket condensers might not have a replaceable bag, requiring replacement of the entire condenser unit.
Cost to Replace the Lexus IS300 A/C Receiver Drier
The part itself is inexpensive. The majority of the cost is the shop labor to evacuate and recharge the A/C system, which is required for the replacement.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Desiccant Element | $45 - $70 |
| New Aftermarket Desiccant Element | $20 - $22 |
| Shop Labor (including system evacuation & recharge) | $150 - $250 |
| Total Estimated Cost (Aftermarket Part) | $170 - $272 |
Frequently Asked Questions
Why can't I just replace the drier myself?
Replacing the drier requires opening the sealed refrigerant lines. It is illegal to vent refrigerant into the atmosphere. A professional shop must use a special machine to safely evacuate the refrigerant before the repair and then recharge it afterward. This is not a DIY-friendly job.
My mechanic says I need a new drier with my new compressor. Is this true?
Yes, absolutely. When a compressor fails, it often sends tiny metal particles throughout the system. The drier will catch some of this debris, becoming clogged. More importantly, replacing the compressor requires opening the system, which automatically saturates the old drier. All compressor manufacturers require a new drier to be installed to validate their warranty.
What happens if I don't replace a saturated drier?
A saturated drier allows moisture to circulate with the refrigerant and oil. This mixture creates corrosive acids that can eat away at metal components from the inside, leading to leaks and the eventual failure of your expensive A/C compressor.
Are there any recalls or TSBs for my IS300's A/C system?
There are no specific recalls or TSBs for the A/C receiver drier on the 2016-2022 Lexus IS300. However, Lexus did issue a Technical Service Bulletin (L-SB-0001-21) for some 2016-2017 IS300 models related to malfunctioning HVAC servo motors, which can cause issues like uneven air temperature or incorrect airflow from vents. This is a separate issue from the receiver drier itself but can also affect A/C performance.
Technical Specifications
OEM Part Numbers: 88474-30010 88474-12010 88474-17010
Desiccant Bag Element for Condenser. Uses R-134a refrigerant and PAG 46 oil.
