Ford Explorer A/C Compressor: A Guide for 2012-2024 Models
Everything you need to know before replacing the A/C compressor on your 2012-2024 Ford Explorer.
- If your compressor failed internally, you MUST also replace the condenser/drier and expansion valve and flush the system.
- Check for refrigerant leaks at the rear A/C lines near the muffler on models with rear A/C; this is a very common failure point.
- Motorcraft (OEM) and Valeo (OE supplier) are top-tier choices for longevity; Four Seasons and GPD are more budget-friendly options.
- A/C compressor replacement is not a beginner DIY job as it requires special tools for handling refrigerant.
Is Your Explorer's A/C Blowing Hot Air?
A failing air conditioning compressor is a common issue on the 2012-2024 Ford Explorer, especially as the vehicle ages. When it fails, you'll lose your ability to cool the cabin. Symptoms can appear suddenly or get worse over time. Understanding the signs of failure and your replacement options is key to getting your A/C running cold again.
Common Failure Symptoms
🎬 Watch: Troubleshooting why your Explorer A/C is blowing warm air.- Warm Air From Vents: The most obvious sign is when the A/C system no longer blows cold air.
- Strange Noises: A rattling, grinding, or high-pitched squealing sound when the A/C is turned on often points to internal compressor failure.
- Compressor Clutch Not Engaging: The clutch on the front of the compressor pulley allows it to cycle on and off. If it doesn't engage (click and start spinning with the pulley), it could be a failed clutch, a blown fuse, or a system pressure issue preventing it from turning on.
- A/C Works While Driving, Fails at Idle: If your A/C gets warm when you're stopped at a light but cools down when you're moving, it can be an early sign of a weak compressor or an issue with the cooling fans.
- Visible Leaks: You may see refrigerant oil (often looking like a greasy film) on the compressor body or at the A/C line connections.
Known Issues for Ford Explorer
While there isn't a single widespread recall for the A/C compressor itself across all these years, some specific issues have been noted:
- NHTSA Recall 19V-687: A small number of 2020 Explorer models were recalled because a wiring harness could rub against the A/C compressor pulley, potentially causing a short circuit.
- TSB 15-0149: Owners of 2013-2015 Explorers with the 3.5L Ti-VCT engine might experience a surging or low idle when the A/C is running. This is typically fixed with a software update to the vehicle's computer (PCM), not a compressor replacement.
- Rear A/C Line Leaks: On Explorers equipped with rear climate control, the aluminum lines running to the back of the vehicle are known to corrode and leak, especially in regions that use road salt. 🎬 See how to identify common leaks in the rear lines. This leak will cause the entire system to lose refrigerant, and the compressor will stop engaging as a safety measure.
Choosing the Right Aftermarket Compressor
When replacing your compressor, you have a choice between OEM and various aftermarket brands. Here’s an honest breakdown for your Explorer:
Tier 1: OEM or Premium OE Supplier
- Motorcraft: This is Ford's factory brand. It's the part your Explorer was built with. You can expect the best fit and longest life, but it comes at the highest price.
- Valeo: Valeo is a well-respected original equipment (OE) supplier for many automakers. Their aftermarket parts often meet or exceed OE standards and may include design improvements for efficiency. They are a strong choice for quality that is often more affordable than Motorcraft.
Tier 2: Reputable Aftermarket Brands

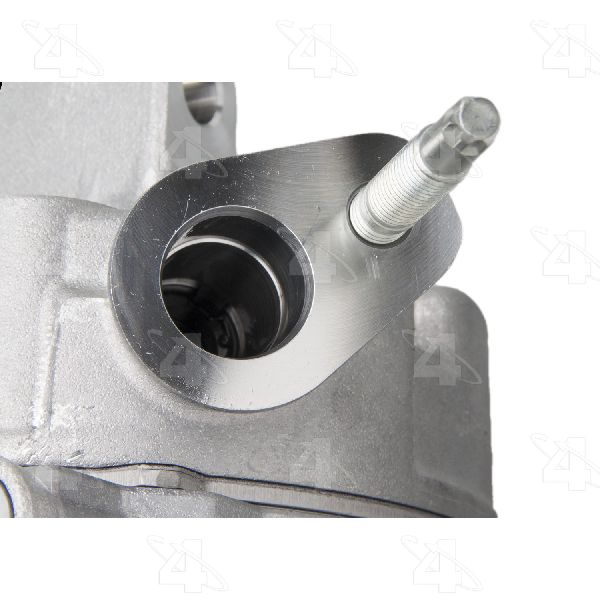

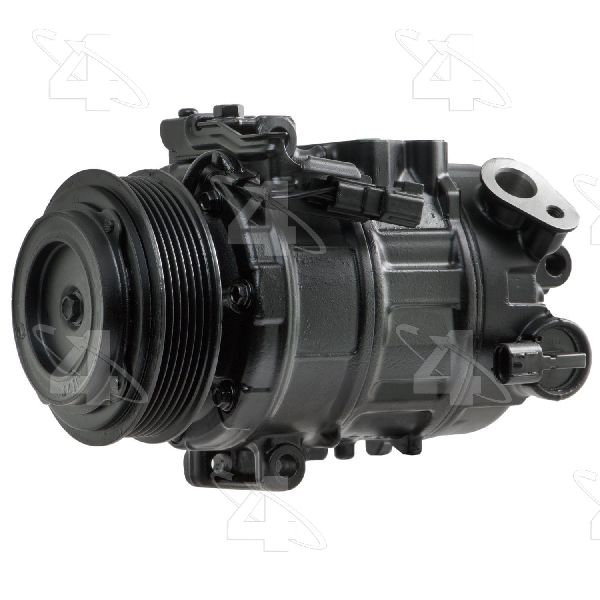

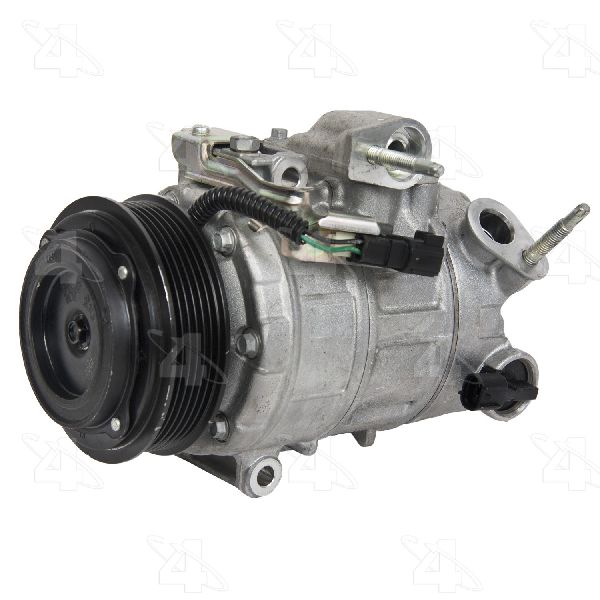

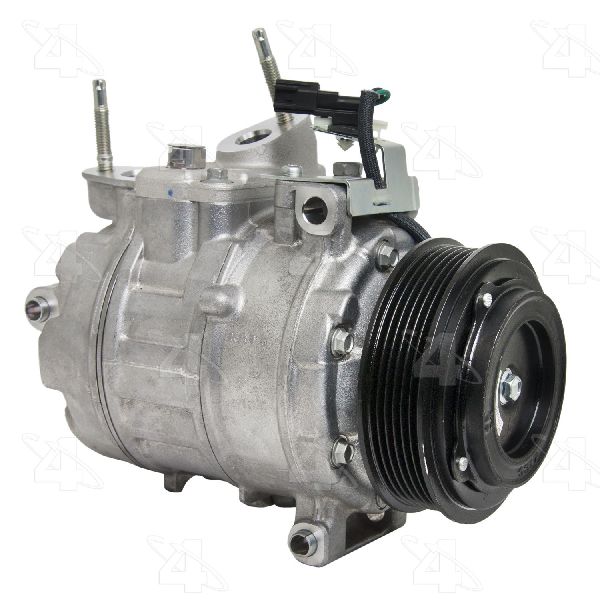

- Four Seasons: As one of the largest aftermarket A/C parts suppliers, Four Seasons offers a wide range of new and remanufactured compressors. They are a popular, budget-friendly choice. While many have success with the brand, the quality of remanufactured parts can sometimes be inconsistent.
Tier 3: Budget-Friendly Options

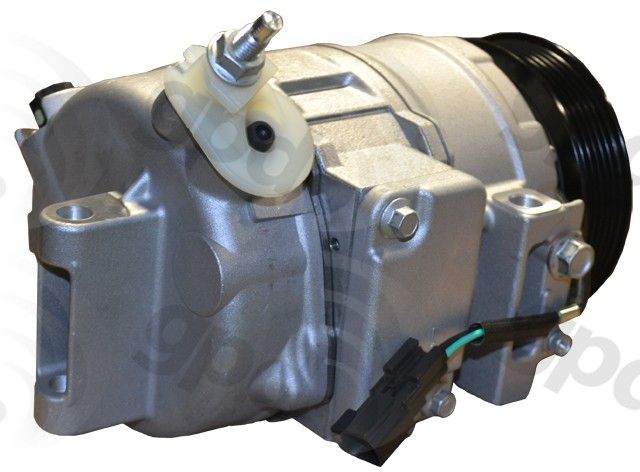

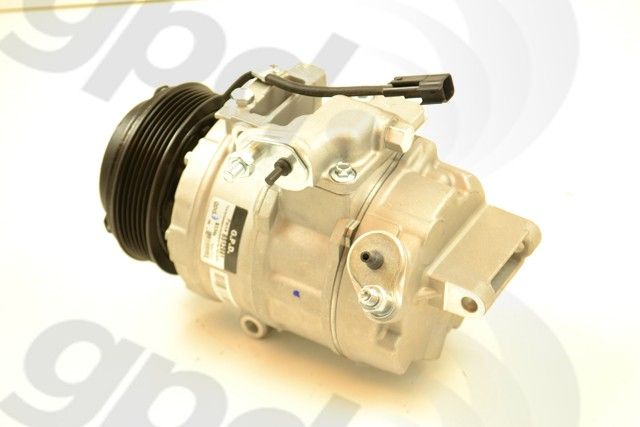

- Global Parts (GPD): This brand is known for its good fitment and for offering complete kits, which can be convenient. GPD is generally considered a budget-oriented option for getting the job done at a lower initial cost.
Pro Tip: Always Replace More Than Just the Compressor
When a compressor fails internally, it can send tiny metal fragments throughout the entire A/C system. This is often called "black death." If you only replace the compressor, these fragments will destroy the new one almost immediately. To ensure a lasting repair, you must also replace the A/C Condenser (which contains the receiver/drier on this vehicle) and the Expansion Valve. The system must also be completely flushed to remove any debris. Not doing this is the #1 cause of a new compressor failing under warranty.
Cost of Replacing Your Explorer's A/C Compressor
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Compressor | $314.12 - $793.57 |
| New OEM (Motorcraft) Compressor | $840 - $991 |
| Shop Labor | $130 - $530 |
| Total Professional Replacement (Aftermarket) | $445 - $1325+ |
| Total Professional Replacement (OEM) | $970 - $1520+ |
Costs are estimates and can vary based on your location, vehicle specifics, and the repair shop. The total cost will be higher if a full system replacement (condenser, expansion valve, flush) is needed.
Frequently Asked Questions
Can I just add more refrigerant if my A/C is not cold?
If your system is low on refrigerant, it means you have a leak. While adding refrigerant might provide a temporary fix, it will leak out again. The correct solution is to find and repair the leak. Common leak points on the Explorer are the rear A/C lines and the compressor shaft seal.
Is replacing an A/C compressor a DIY job?
This is an advanced DIY job. While the physical replacement is possible for a skilled home mechanic, the A/C system requires special tools, including a manifold gauge set and a vacuum pump, to properly and legally handle the refrigerant, 🎬 Watch this walkthrough for tips on replacing the compressor yourself. evacuate the system, and recharge it by weight. Improper procedure can lead to poor performance or damage to the new parts.
What is "A/C compressor black death"?
This term describes a catastrophic internal failure of the compressor. The inside of the compressor shreds itself, sending metal shavings and contaminated oil throughout the entire A/C system. If this happens, you must flush the system and replace the compressor, condenser/drier, and expansion valve to avoid immediate failure of the new compressor.
Why did my new compressor fail so quickly?
The most common reason is the failure to replace related components (condenser/drier, expansion valve) and properly flush the system after the original compressor failed. This leaves contaminants in the lines that destroy the new part. Another possibility is a defective replacement part or an incorrect amount of refrigerant or oil being added.
Helpful Videos
Technical Specifications
Compressor type and refrigerant capacity can vary by engine and model year. Always verify the exact part for your specific vehicle using its VIN. Models from 2012-~2015 typically use R-134a refrigerant, while newer models may use R-1234yf.
