Toyota 4Runner Wheel Speed Sensor & ABS Sensor Guide (2012-2024)
Solve your 4Runner's erratic speedometer and rough shifting by understanding its speed sensor system.
- For a 2012-2024 4Runner, the part you need is an ABS Wheel Speed Sensor, not a transmission-mounted VSS.
- A single bad sensor will cause an erratic speedometer, poor shifting, and disable the ABS and VSC systems.
- The most common trouble code is P0500, but an ABS-capable scanner is needed to identify which of the four sensors is bad.
- This is a DIY-friendly repair, but for critical electronics, choosing a reputable aftermarket brand over the cheapest option is wise.
Your 4Runner's Speedometer vs. ABS Sensor: What's the Difference?
For the 2012-2024 Toyota 4Runner, the terms "Vehicle Speed Sensor" and "ABS Sensor" refer to the same part. Unlike older vehicles with a single sensor on the transmission, your 4Runner uses four sensors, one at each wheel, to report speed data to the truck's computer systems. This data is critical for several functions, not just the anti-lock brakes. A failure in one of these sensors can cause a variety of problems that may seem unrelated at first.
Symptoms of a Failing Wheel Speed Sensor
A bad wheel speed sensor on your 4Runner will usually make itself known through several clear symptoms. Because the sensor's data is used for multiple systems, a single faulty sensor can cause a chain reaction of warning lights and performance issues.
- Erratic or Dead Speedometer: The speedometer needle may jump around, read incorrectly, or drop to zero while driving.
- Harsh or Incorrect Shifting: The automatic transmission may shift hard, late, or seem to hunt for the right gear because it isn't receiving accurate speed information.
- ABS and Traction Control Lights: The most common sign is the illumination of the ABS, VSC (Vehicle Stability Control), and/or traction control warning lights on your dashboard.
- Cruise Control Won't Engage: The cruise control system relies on a steady speed signal, so it will typically stop working if a sensor fails.
- Check Engine Light: A diagnostic trouble code, most commonly P0500, may be stored, triggering the check engine light.
Is It Safe to Drive with a Bad Speed Sensor?
You can drive the vehicle, but it's not recommended for long. Your anti-lock braking (ABS) and traction/stability control systems will be disabled, which reduces safety in emergency maneuvers or slippery conditions. You may also experience unpredictable transmission shifting. It is best to get the issue diagnosed and repaired as soon as possible.
Choosing the Right Aftermarket Sensor: Brand Quality
While Toyota OEM sensors are the benchmark for quality, they are also the most expensive. For a part like a wheel speed sensor, a quality aftermarket brand can offer a reliable repair for a fraction of the cost. However, with vehicle electronics, quality can vary. Some forum users have reported issues with the cheapest options and recommend sticking to reputable brands or OEM. Here’s a general breakdown of the brands available:

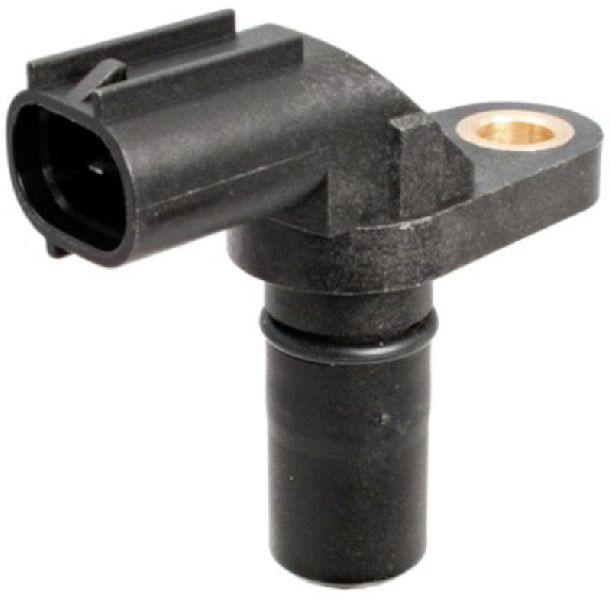

- Premium Aftermarket (Hella, Standard Ignition): Brands like Hella have a strong reputation for producing OE-quality electronic components. Standard Ignition is a long-standing aftermarket manufacturer with a wide range of sensors, though some user reviews are mixed. These brands are often a safe bet for reliability.
- Quality Aftermarket (Holstein, Walker Products): These brands aim to provide a balance of quality and value. Holstein often includes new mounting hardware, which is a plus. Walker Products markets its sensors as meeting or exceeding OEM specifications and are a popular choice.
- Value Brands (Global Parts, Vemo, Facet): These brands typically offer the lowest price point. While they can be a budget-friendly solution, they may have a higher risk of premature failure compared to premium options. Vemo is noted to focus more on European vehicles.
Pro Tip: Diagnose Before You Buy
A proper OBD-II scanner that can read ABS codes can tell you exactly which of the four wheel sensors has failed. This saves you from guessing or replacing the wrong part. Many auto parts stores will scan your codes for free. If you get a P0500 code, ask them to check for ABS-specific codes too.
🎬 Watch: How to test a wheel speed sensor for problemsCost of Replacing a 4Runner Wheel Speed Sensor
The cost can vary depending on whether you do the work yourself or have a shop do it. The part itself is the main variable.
| Item | Estimated Cost |
|---|---|
| New OEM Sensor | $150 - $260 per sensor |
| New Aftermarket Sensor | $29 - $71 per sensor |
| Shop Labor | $100 - $150 per sensor |
Frequently Asked Questions (FAQ)
How many speed sensors does my 2012-2024 4Runner have?
Your 4Runner has four wheel speed sensors (one at each wheel) that provide the vehicle speed signal. It does not have a separate, single vehicle speed sensor on the transmission.
Can I replace just one bad sensor?
Yes. You only need to replace the specific sensor that has failed. A diagnostic scan will identify the faulty sensor's location (e.g., "front right," "rear left").
Is replacing a wheel speed sensor a DIY job?
Yes, for someone with basic tools and mechanical experience. The job involves removing the wheel, unbolting the sensor from the wheel hub area, and unplugging its electrical connector. 🎬 Watch: How to replace the ABS sensor wiring harness It can typically be done in under an hour.
🎬 See this walkthrough on replacing a 4Runner ABS sensorDo I need to reset the computer after replacing the sensor?
Usually, the warning lights (ABS, Check Engine) will turn off on their own after a short period of driving once the computer receives a good signal from the new sensor. You can also clear the codes with an OBD-II scanner or by disconnecting the battery for about 15 minutes, though clearing with a scanner is the preferred method.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89516-60260 89516-60270 89542-04020
This part is an ABS Wheel Speed Sensor. Four are used on the vehicle, one at each wheel. They provide the speed signal for the speedometer, transmission control, ABS, and stability control systems.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
