Toyota Camry Engine Oil Pressure Switch: A Comprehensive Guide (2012-2024)
Is your oil light on? This guide explains what the engine oil pressure switch does on your Camry and how to choose the right replacement.
- Never ignore the oil pressure light; always check your oil level first.
- For 2018-2024 models, a winter warning might be due to oil condensation (TSB T-SB-0104-21), not a bad switch.
- Replacement is a simple DIY task with a 24mm deep socket, making it a cost-effective repair.
- A quality aftermarket brand like Beck Arnley or Standard Ignition offers a reliable repair without the higher OEM price.
Understanding the Engine Oil Pressure Switch on Your Camry
The engine oil pressure switch is a critical safety component. It's a sensor that constantly checks your engine's oil pressure. Think of it as a simple guard: as long as the pressure is above a safe minimum, the switch remains open, and the dashboard light stays off. If pressure drops—due to low oil level, a failing oil pump, or other issues—the switch closes, completing an electrical circuit and instantly illuminating the oil pressure warning light on your instrument cluster. Ignoring this light can lead to catastrophic engine failure.
Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can cause confusing symptoms. Because it can fail in several ways, it's important to know what to look for. The most common sign is an issue with the oil pressure light, but leaks can also occur.
- Oil Light On with Normal Oil Level: If you've checked your dipstick and the oil level is correct, but the oil light stays on, the switch itself might be faulty and stuck in the 'on' position.
- Flickering Oil Light: A light that flickers, especially at idle or low RPMs, can indicate a switch that is failing or borderline low oil pressure.
- Oil Leak: The switch has seals that can degrade over time. A common failure is an oil leak from the body of the switch or the electrical connector. Oil can sometimes even leak through the sensor's internal diaphragm and out the connector pins.
Known Issue: TSB for 2018-2024 Camry Models
Toyota issued Technical Service Bulletin (TSB) T-SB-0104-21 for some 2018–2024 Camry models with A25A-FKS, A25A-FXS, M20A-FKS, or M20A-FXS engines. This TSB addresses an "Oil Pressure Low" warning and possible DTC codes P05202A or P052477, especially in extremely cold weather. The cause is often moisture from blow-by gases condensing in the oil during short trips, which can freeze and restrict oil flow, triggering the sensor. The fix usually involves an oil and filter change and ruling out other issues, not necessarily replacing the switch itself.
Choosing a Replacement: OEM vs. Aftermarket
When it's time to replace the switch, you have a choice between Original Equipment Manufacturer (OEM) and aftermarket parts. For a simple part like an oil pressure switch, a quality aftermarket part is often a reliable and cost-effective choice.
- OEM: Made by Toyota's supplier (often Denso), this part is a guaranteed fit and matches the original quality. It's the most expensive option.
- Premium Aftermarket (e.g., Beck Arnley, Standard Ignition): These brands have a strong reputation. Beck Arnley is known for sourcing parts from OEM suppliers, so you might get an OEM-quality part in a different box. Standard Ignition is a long-standing, reputable manufacturer known for quality control.
- Standard Aftermarket (e.g., Facet, Holstein, Global Parts): These brands offer a balance of quality and value. They are designed to meet original specifications and are a perfectly acceptable repair for most daily-driven vehicles. Facet, for example, highlights its use of robust materials and precision engineering.
Pro Tip: For a critical but inexpensive part like this, spending a few extra dollars for a reputable aftermarket brand like Beck Arnley or Standard Ignition can provide extra peace of mind without the high cost of an OEM part from a dealership.
Cost to Replace a Toyota Camry Oil Pressure Switch
Replacing the oil pressure switch is one of the more affordable repairs you can perform on your Camry.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Part | $50 - $75 |
| New Aftermarket Part | $13.67 - $30.05 |
| Shop Labor | $71 - $105 |
| Total Professional Replacement | $145 - $179 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on a 2012-2024 Toyota Camry?

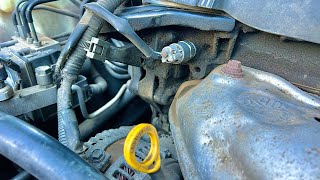

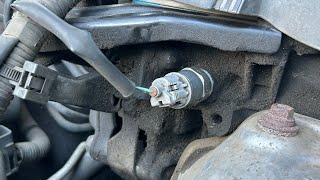

The oil pressure switch is typically located on the engine block, often near the oil filter housing or the exhaust manifold. On the 2.5L 4-cylinder engine, for example, it is found to the right of the exhaust manifold at the top of the engine. It is a single-wire connector.
Can I replace the oil pressure switch myself?
Yes, this is a very feasible DIY job for most home mechanics. It requires basic tools, including a 24mm deep socket. The process involves disconnecting the electrical connector, unscrewing the old switch, and installing the new one. Be prepared for a small amount of oil to drip out.
What does the code P0520 mean?
P0520 stands for "Engine Oil Pressure Sensor/Switch 'A' Circuit Malfunction." This code is triggered when the vehicle's computer (PCM) detects a problem with the sensor or its circuit. It could be caused by a faulty switch, wiring issues, or actual low oil pressure. The TSB for 2018+ models also specifically mentions a related code, P05202A.
Are there any recalls for the Camry oil pressure switch?
As of now, there are no specific safety recalls issued by the NHTSA for a faulty engine oil pressure switch on the 2012-2024 Toyota Camry. However, there is a Technical Service Bulletin (TSB) for 2018-2024 models that relates to the oil pressure warning system.
Helpful Videos
Technical Specifications
OEM Part Numbers: 83530-60020 83530-28020 83530-AA011 83530-AA010
Typically a single-pin, normally closed switch that opens with sufficient oil pressure. Requires a 24mm deep socket for removal/installation.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
