A Guide to Replacing Ignition Coils on the 2013-2016 Mini Cooper Paceman
Keep your Paceman's engine running smoothly by understanding when and how to replace your ignition coils.
- Ignition coil failure is a common issue for the Paceman, often due to heat exposure.
- Symptoms include a check engine light (P0300-P0304 codes), rough idle, and poor acceleration.
- Replacing all four coils at once is highly recommended; MINI issued a TSB suggesting this practice.
- This is a very easy DIY repair that can be done in under 30 minutes with basic tools.
Is Your Paceman Running Rough? It Could Be an Ignition Coil
Ignition coil failure is a known issue on many modern MINIs, including the Paceman. The coils are located deep within the engine, where they are exposed to significant heat, which can cause them to wear out over time. A failing ignition coil can cause a range of problems, from annoying hesitations to a car that won't start at all. Recognizing the symptoms early can save you from a bigger headache down the road.
Symptoms of a Failing Ignition Coil
If your Paceman's ignition coil is going bad, you'll likely notice one or more of these signs:
- Check Engine Light: This is often the first sign. A scan will typically show misfire codes like P0300, P0301, P0302, P0303, or P0304, which point to the specific cylinder that's having a problem. You might also see codes P0351 or P0352, which directly indicate an ignition coil circuit malfunction. 🎬 Watch this guide to diagnosing and fixing misfire codes.
- Engine Misfires and Rough Idling: You may feel a sputtering, coughing, or jerking sensation from the engine, especially when starting the car or idling at a stoplight. 🎬 See how to identify common misfire symptoms and the fix.
- Poor Acceleration: The car might feel sluggish or hesitate when you press the gas pedal.
- Reduced Fuel Economy: When a cylinder misfires, unburned fuel can pass through the engine, meaning you'll be stopping for gas more often.
- Hard Starting: The engine may crank for longer than usual before it finally starts, especially in cold weather.
Known Issues and Technical Service Bulletins (TSBs)
MINI has issued Technical Service Bulletins (TSBs) regarding ignition coil failures on these engines. For example, TSB SI M12 01 15 addresses misfires due to failing Bosch ignition coils caused by high-temperature fluctuations. The bulletin notes that the original Bosch coils can deteriorate over time and recommends replacing them. In some cases, it advises replacing all coils at once with an updated part from a different manufacturer like Delphi or Eldor, even if only one has failed. There have been no major safety recalls for ignition coils on the 2013-2016 Paceman, but MINI did offer an extended warranty for this part to some owners.
Choosing the Right Aftermarket Ignition Coil
When it comes to replacing ignition coils, you have several options. While the original equipment (OEM) part is always a safe bet, high-quality aftermarket brands can offer similar performance for a lower price. Here’s a breakdown of brands based on quality and owner feedback.
Tier 1: OEM & Premium Aftermarket
These brands are either the original suppliers to MINI or are known for producing parts that meet or exceed OEM standards. They are your best bet for longevity and performance.
- Bosch: A well-known OEM supplier for many European cars, including MINI. Bosch coils are a reliable, direct-replacement option.
- Delphi: Another top-tier OEM manufacturer for MINI. In fact, MINI's own service bulletins recommend switching from original Bosch coils to Delphi coils in some cases, making them an excellent choice.
- NGK: While famous for spark plugs, NGK also produces high-quality ignition coils that are a trusted choice for many owners.
Tier 2: Reputable Aftermarket
These brands offer a good balance of quality and value. They are a solid choice for daily drivers and budget-conscious owners who still want a reliable part.
- Hella: A German brand with a strong reputation for quality lighting and electronic components.
- Hitachi: A well-regarded manufacturer of automotive electronics, offering reliable performance.
- Standard Ignition (SMP): A long-standing brand in the aftermarket, offering parts that are a dependable alternative to OEM.
Tier 3: Economy Brands
These brands provide the most affordable options, suitable for getting a vehicle back on the road on a tight budget. Quality and lifespan may not match the higher-tiered brands.
- DriveWire, Global Parts, True Tech, Walker Products: These brands offer functional replacements at a low price point. While they will get the job done, their long-term durability may be less than premium options.
Pro Tip: It is highly recommended to replace all four ignition coils at the same time. They have all been exposed to the same heat and wear, so if one has failed, the others are likely not far behind. This can save you from repeating the repair in the near future.
Cost to Replace Mini Cooper Paceman Ignition Coils
| Part Type | Typical Cost (Per Coil) |
|---|---|
| New OEM (Bosch/Delphi) | $55 - $95 |
| New Aftermarket | $31 - $85 |
| Shop Labor | $50 - $100 |
Note: Costs are estimates and can vary based on location and supplier. Shop labor is for replacing all four coils.
Frequently Asked Questions
Can I replace the ignition coils myself?
Yes, this is a very DIY-friendly job. The ignition coils are located directly on top of the engine and are easily accessible. The process involves removing a plastic engine cover, disconnecting an electrical connector, and pulling the coil straight out. No special tools are required, and the job can typically be done in under 30 minutes.
🎬 See a detailed walkthrough for replacing Paceman coils and plugs.Should I replace my spark plugs at the same time?
It's a great idea. Since you already have the ignition coils out, the spark plugs are right there. Worn spark plugs can put extra strain on the ignition coils, causing them to fail prematurely. Replacing them together ensures the entire ignition system is fresh.
What is the difference between an OEM and aftermarket coil?
OEM (Original Equipment Manufacturer) coils are the same parts the car was built with, in this case likely from Bosch or Delphi. High-quality aftermarket coils from brands like NGK or Hella are designed to perform just as well but are often cheaper. Economy aftermarket brands are less expensive but may not have the same durability or performance as OEM or premium brands.
What happens if I don't replace a bad ignition coil?
Ignoring a bad ignition coil can lead to more serious problems. Continuous misfiring can allow unburned fuel into the exhaust system, which can damage the expensive catalytic converter. It also causes poor performance, bad fuel economy, and could leave you stranded.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12138616153 12137594937 12137571643 12137562744

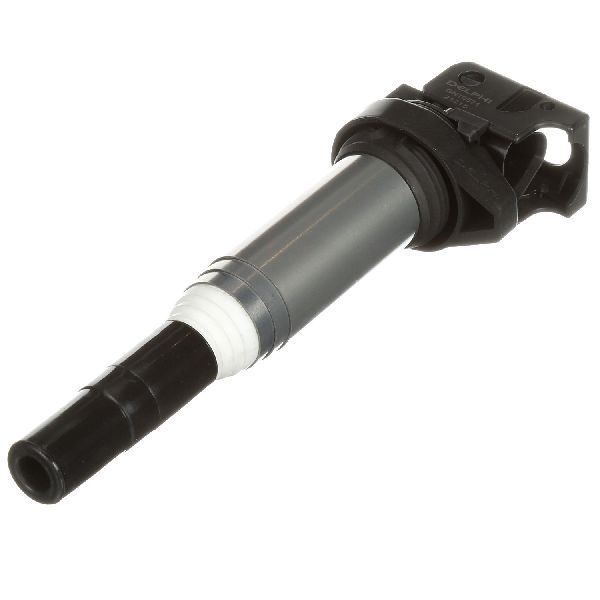

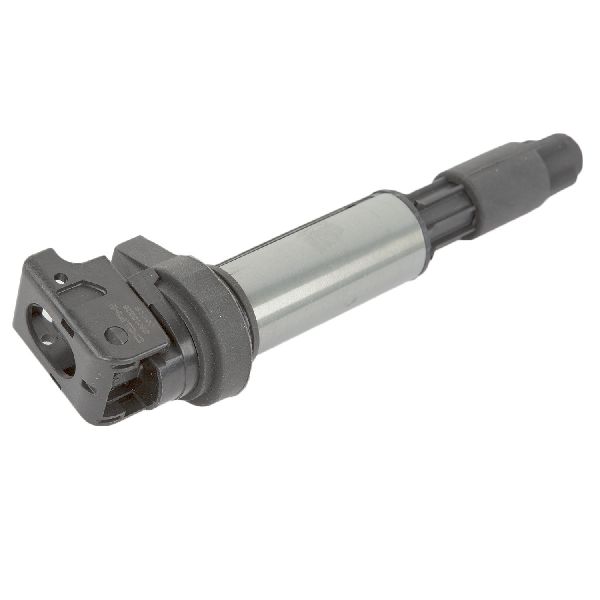

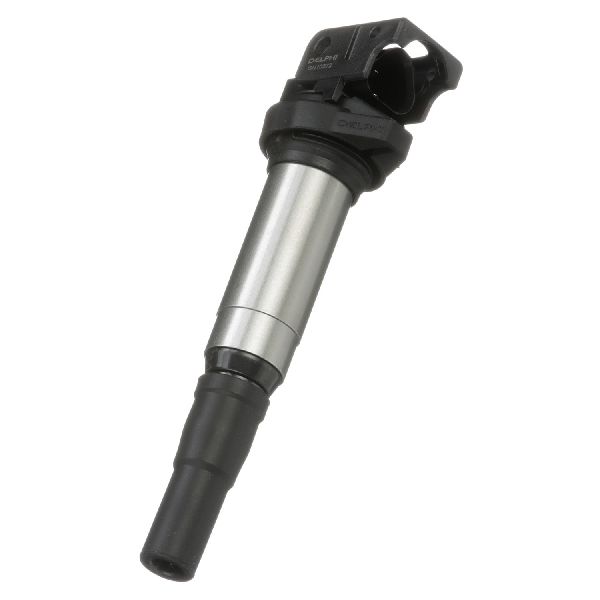

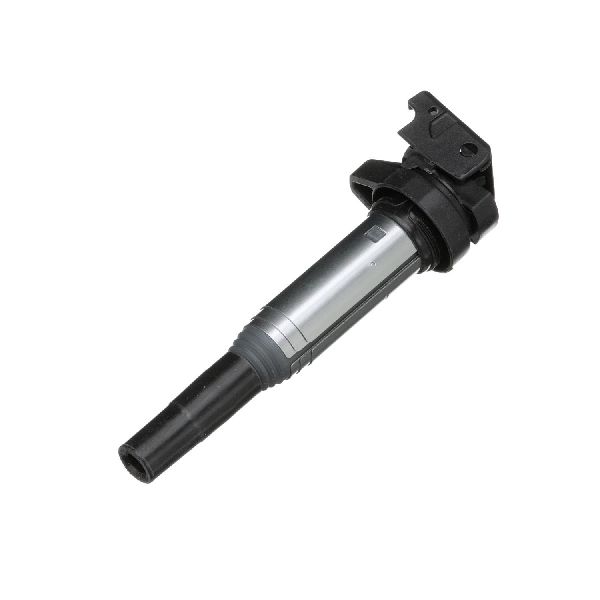

This vehicle uses four individual 'pencil' or 'coil-on-plug' style ignition coils. The original coils were often made by Bosch, but were commonly superseded by Delphi or Eldor parts per MINI's service bulletins.
