Ford Focus HVAC Heater Hose Guide: 2013-2017
Losing heat or spotting coolant leaks? Your HVAC heater hoses might be the problem.
- The quick-connect fittings on the heater hoses are a common failure point on 2013-2017 Focus models, leading to coolant leaks.
- Symptoms include no cabin heat, visible leaks, a sweet coolant smell, and potential engine overheating.
- High-quality aftermarket brands like Gates offer OEM-equivalent performance and are a reliable, cost-effective choice.
- It is highly recommended to replace both the inlet and outlet hoses at the same time and consider using a special disconnect tool for the job.
Is Your Ford Focus Losing Heat? It Could Be the Heater Hoses
If the heater in your 2013-2017 Ford Focus isn't working, or if you're finding puddles of coolant under your car, a failing HVAC heater hose is a likely suspect. These hoses are a critical part of your heating and engine cooling systems. Over time, the rubber and plastic components can degrade from constant heat and pressure, leading to leaks and other problems. The quick-connect fittings at the firewall are a known weak point on these models.
Symptoms of a Failing Heater Hose
- No Heat in Cabin: This is one of the most obvious signs. If a hose is blocked or leaking, hot coolant can't reach the heater core, leaving you with cold air from the vents.
- Coolant Leaks: You may see orange or green puddles on the ground under the engine bay. Look for white or colored crusty residue on the hoses themselves or on the firewall where they connect.
- Sweet Smell: Leaking coolant has a distinct sweet smell. You might notice it inside the cabin or outside the car, especially when the engine is warm.
- Engine Overheating: A significant leak in a heater hose can lead to a low coolant level. If the engine loses too much coolant, it can overheat, which is a serious problem that can cause major engine damage.
- Visible Damage: Check the hoses for cracks, bulges, or soft, spongy spots. The plastic connectors can also become brittle and crack.
Important Recall Information: Engine Block Heater
There is a recall (NHTSA ID: 26V011) for some 2013-2018 Ford Focus models equipped with an accessory engine block heater. The block heater itself (not the HVAC hoses) can crack, leak coolant, and create a fire risk when plugged in. If your vehicle has a block heater, do not use it until you have confirmed with a Ford dealer that this recall has been addressed.
Choosing the Right Aftermarket Part
When replacing your heater hoses, you have a choice between OEM (Original Equipment Manufacturer) parts from Ford's brand, Motorcraft, and aftermarket parts from brands like Gates. For this specific part on the 2013-2017 Focus, both are excellent choices.
- OEM (Motorcraft): These are the exact parts your car was built with. They guarantee a perfect fit but are often the most expensive option. Common part numbers are KH-901 and KH-902.

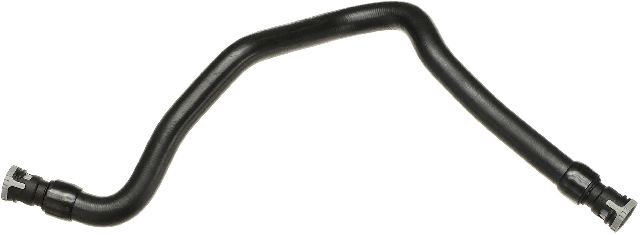

- High-Quality Aftermarket (Gates): Gates is a highly respected brand that often supplies parts to car manufacturers directly. Their hoses are made from high-quality EPDM rubber designed to resist electrochemical degradation, which is a primary cause of hose failure. For this application, a Gates hose offers OEM-level quality and fit, often at a better price.
Given the quality and reputation, choosing an aftermarket hose from Gates is a reliable and cost-effective decision for your Ford Focus.
Pro Tip: Make the Job Easier
The quick-connect fittings at the firewall can be difficult to remove. Consider buying a special disconnect tool (like Lisle 39200) to make releasing the clips much easier and avoid damaging the connections. 🎬 See how this special tool makes disconnecting the hoses easy. It's also a good practice to replace the hose clamps whenever you install new hoses to ensure a tight, leak-free seal.
How Much Does a Heater Hose Replacement Cost?
The cost can vary depending on whether you do the job yourself or take it to a shop. The replacement is considered moderately difficult for a DIYer due to tight access.
🎬 Watch this step-by-step walkthrough of the heater hose replacement.| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Hoses (e.g., Gates) | $28 - $96 |
| New OEM Hoses (Motorcraft) | $55 - $75 |
| Shop Labor | $95 - $275 |
| Total Professional Replacement | $155 - $370+ |
Cost estimates are approximate and can vary by location and vehicle specifics.
Frequently Asked Questions
Can I just replace the leaking O-ring in the connector?
Yes, some DIYers have successfully replaced just the O-rings inside the quick-connect fittings, which is a very cheap fix. However, it can be difficult to find the exact size O-ring and to install it correctly without damaging the hose. Replacing the entire hose assembly is the more reliable, long-term repair.
🎬 Watch: How to replace just the O-rings for a cheap fix.Do I need to replace both heater hoses at the same time?
It is highly recommended. Both hoses are the same age and have been exposed to the same conditions. If one has failed, the other is likely not far behind. Replacing both at once saves you from having to do the same job again in the near future.
Is a special tool required for the replacement?
While not strictly required, a heater hose disconnect tool makes removing the quick-connect fittings at the firewall much easier and reduces the risk of breaking the plastic connectors. Many mechanics and experienced DIYers strongly recommend using one.
What kind of coolant should I use for my 2013-2017 Ford Focus?
Your Ford Focus requires a specific type of coolant. Always use Motorcraft Orange Antifreeze/Coolant or a coolant that meets Ford's specification WSS-M97B44-D. Using the wrong type can cause damage to your cooling system.
Helpful Videos
Technical Specifications
OEM Part Numbers: KH-901 KH-902 CV6Z-18472-AS
Molded EPDM rubber and plastic construction with quick-connect fittings designed for Ford's WSS-M97B44-D coolant.
