Ford C-Max Engine Oil Pressure Switch: A Complete Guide (2013-2018)
Is your oil light on? This guide covers the common causes and solutions for engine oil pressure switch issues on your 2013-2018 Ford C-Max.
- Never ignore the oil pressure light; stop the engine safely and check the oil level immediately.
- A faulty switch is a common, inexpensive cause for the oil light on a C-Max with a correct oil level.
- Replacement is a simple DIY job for most home mechanics, located near the oil filter.
- Choose reputable aftermarket brands like Standard Ignition or Hella for a reliable repair.
Is Your Oil Light On? What It Means for Your C-Max
Seeing the red oil pressure light on your dashboard can be alarming, but it doesn't always mean your engine is failing. Often, the issue is a faulty engine oil pressure switch. This small sensor can fail in a few ways: it can get clogged, develop an internal short, start leaking oil through the switch itself, or simply wear out. When it fails, it can send incorrect signals, causing the warning light to come on even when the oil pressure is perfectly fine.
Immediate Action Required
If your oil pressure warning light comes on, stop the engine as soon as it is safe to do so. Driving with low oil pressure can lead to catastrophic engine failure. First, check your oil level. If the level is correct, the problem could be the switch, but you should not drive the vehicle until the cause is properly diagnosed.
🎬 See how to diagnose a P0520 code and oil light.Choosing the Right Aftermarket Switch
For the 2013-2018 Ford C-Max, the original equipment (OEM) oil pressure switch is a reliable part, but like any component, it can fail over time. Aftermarket switches offer a cost-effective alternative without a significant compromise in quality for this specific part. The key is to choose a reputable brand.
Aftermarket Brand Tiers
- Tier 1: Reputable OEM-Quality Brands: Brands like Standard Ignition (Standard Motor Products) and Hella are well-regarded in the industry. Standard is a long-standing American manufacturer known for quality control, and Hella is a major OEM supplier that ensures their aftermarket parts meet high standards. These are excellent choices for a reliable, long-lasting repair.
- Tier 2: Quality Budget-Friendly Options: Brands like Rostra Powertrain and True Tech offer a more affordable price point. Rostra is an IATF-certified manufacturer that also produces parts for OEMs, suggesting a commitment to quality control. While specific reviews for their oil pressure switches are less common, the brand has a decent reputation for other electronic components. True Tech appears to be a private label associated with various auto repair shops, with reviews generally pointing to honest service rather than part-specific quality. These brands can be a good value, but sticking to the more established names like Standard or Hella may provide extra peace of mind.
Pro Tip: Check for Leaks
When replacing the switch, check the old one and its electrical connector for signs of oil. If oil has wicked up into the connector, it's a sure sign the switch has failed internally and needs replacement. Clean the connector thoroughly with an appropriate electrical cleaner before installing the new part.
Known Issues, Recalls, and TSBs
While searching for information specific to the oil pressure switch on the 2013-2018 Ford C-Max, no specific recalls or Technical Service Bulletins (TSBs) for switch failure were found. However, Ford did issue a recall (NHTSA Campaign Number: 23V905) for some 2016-2018 Ford Focus and 2018-2022 EcoSport models with 1.0L engines related to an oil pump belt tensioner that could cause a loss of oil pressure. This recall does not apply to the 2.0L engine used in the Ford C-Max, but it highlights the importance of heeding any oil pressure warnings.
Cost of Replacement
The cost to replace the engine oil pressure switch is very reasonable, especially if you do it yourself. The part itself is inexpensive, and labor is minimal.
| Cost Category | Estimated Price |
|---|---|
| New Aftermarket Part | $6.73 - $28.74 |
| New OEM (Ford) Part | $18.00 - $26.00 |
| Shop Labor Cost | $61 - $90 |
| Total Professional Replacement | $94 - $129 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on a 2013-2018 Ford C-Max?

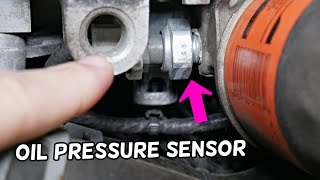

On the 2.0L engine in the Ford C-Max, the oil pressure switch is typically located on the engine block, often near the oil filter housing. 🎬 Watch: This video shows the exact sensor location and replacement. This makes it relatively accessible from underneath the vehicle once any undertrays are removed.
🎬 Watch this walkthrough of the replacement process on a 2.0L.Can I replace the oil pressure switch myself?
Yes, this is a very DIY-friendly repair for those with basic tools. The process generally involves safely raising the vehicle, disconnecting the electrical connector, using a wrench or deep socket to unscrew the old switch, and then installing the new one. Make sure the engine is cool and be prepared for a small amount of oil to drip out when you remove the old switch.
What are the symptoms of a bad oil pressure switch?
The most common symptoms are an oil pressure warning light that is always on or flickers intermittently, and an oil pressure gauge (if equipped) that reads zero or behaves erratically. In some cases, a failed switch can also leak oil.
Does a flickering oil light always mean the switch is bad?
Not always. A flickering light can indicate a faulty switch, a poor electrical connection, or, most seriously, borderline low oil pressure. Always check your engine oil level first. If the level is correct, the switch is a common and inexpensive part to replace as a next diagnostic step.
Helpful Videos
Technical Specifications
OEM Part Numbers: BE8Z-9278-A 1S7Z-9278-AA SW-6682 3M519278AB
Common thread sizes include M12x1.75. Connector types can vary, but are often a 1-pin or 2-pin rectangular shape. Always verify the exact part for your vehicle before purchasing.
