Choosing the Right Spark Plugs for Your 2013-2018 Ford C-Max
Keep your C-Max hybrid running smoothly with the correct spark plugs for its unique engine.
- The recommended spark plug replacement interval is 100,000 miles, but symptoms may appear sooner.
- Using OEM Motorcraft or high-quality Iridium aftermarket plugs from brands like NGK or Denso is highly recommended for longevity and performance.
- A flashing check engine light indicates a severe misfire that requires immediate attention to prevent catalytic converter damage.
- Replacing spark plugs on the C-Max 2.0L engine is a simple DIY job that can be done in under an hour with basic tools.
Signs of Failing Spark Plugs in a Ford C-Max
When your spark plugs are nearing the end of their life, your C-Max will give you several warning signs. You might notice the engine hesitates or stumbles during acceleration. A rough idle, where the car shakes or vibrates more than usual when stopped, is another common symptom. Perhaps the most obvious sign is the check engine light, which may come on with misfire codes like P0300, P0301, P0302, P0303, or P0304. You may also experience a noticeable drop in fuel economy and find the engine is louder than normal.
Don't Ignore a Flashing Check Engine Light
If your check engine light is flashing, it signals a severe misfire that can quickly damage your expensive catalytic converter. 🎬 Learn more about the common causes of engine misfires. You should stop driving and have the vehicle inspected as soon as possible to prevent further damage.
Choosing the Right Aftermarket Spark Plugs
The original Ford Motorcraft plugs for the C-Max are a high-quality iridium design, meant to last up to 100,000 miles. When shopping for aftermarket replacements, it's best to stick with plugs that meet or exceed these original specifications. Iridium and platinum plugs are recommended for their durability and performance in the C-Max engine.
Brand Quality Tiers
- Top Tier (OEM-equivalent or better): NGK and Denso are highly respected brands that often supply original parts to manufacturers. Many owners consider them a top choice. The original Motorcraft plugs (part number SP-537) are also an excellent, reliable option.
- Mid-Grade (Reliable Aftermarket): Bosch and Autolite offer quality double platinum and iridium plugs that are a good alternative to OEM. They provide a balance of performance and price.
- Economy (Budget-Friendly): Champion is a well-known brand that offers more budget-friendly options. While functional, they may not offer the same longevity as iridium or double platinum plugs.
Some C-Max owners on forums strongly recommend using only the OEM Motorcraft spark plugs to avoid potential issues. While quality aftermarket plugs from brands like NGK or Denso are generally reliable, sticking with Motorcraft is the safest bet if you are unsure.
Spark Plug Replacement Cost for 2013-2018 Ford C-Max
The cost to replace spark plugs can vary based on the parts you choose and whether you do the job yourself. The job is straightforward for a DIY mechanic with basic tools.
| Item | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Spark Plugs (Set of 4) | $35 - $60 |
| New Aftermarket Spark Plugs (Set of 4) | $23 - $83 |
| Shop Labor | $100 - $150 |
| Total Professional Replacement | $123 - $233 |
Frequently Asked Questions
How often should I replace the spark plugs on my Ford C-Max?
The recommended service interval for the original Motorcraft iridium spark plugs is around 100,000 miles. However, if you experience symptoms like rough idling or misfires, you may need to replace them sooner.
Is it difficult to replace the spark plugs myself?
No, for most DIYers, this is a relatively easy job. The spark plugs are located on top of the engine under individual ignition coils. You will need a ratchet with an extension, a 5/8-inch or 16mm spark plug socket, and an 8mm socket to remove the coil bolts. The entire process should take less than an hour.

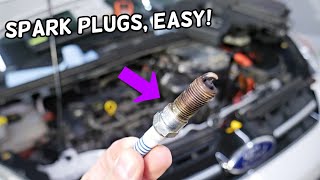

🎬 Follow this step-by-step video to replace your C-Max spark plugs.Do new spark plugs need to be gapped?
Most modern iridium and platinum spark plugs come pre-gapped from the factory. While it's always a good practice to verify the gap with a feeler gauge, you should not attempt to adjust the gap on fine-wire iridium plugs, as you can easily damage the delicate electrode. The correct gap for the Ford C-Max 2.0L engine is typically between 0.047 and 0.051 inches, though some sources state a tighter gap of 0.027-0.031 inches for certain plugs. Always confirm the spec for the specific plug you are installing.
Are there any recalls for Ford C-Max spark plugs?
No, there are no specific recalls for spark plugs on the 2013-2018 Ford C-Max. There was an ignition-related recall for some 2015 models where the engine might not turn off, but this was a software issue with the body control module, not the spark plugs themselves.
Should I replace ignition coils with the spark plugs?
It is not always necessary. Unlike spark plugs, ignition coils are not a routine maintenance item and should only be replaced if they have failed. If you have a misfire code for a specific cylinder (like P0301, P0302, etc.) and a new spark plug doesn't fix it, the coil for that cylinder may be the culprit. 🎬 Watch this guide on how to fix Ford misfire codes. Some owners choose to replace them as a set for peace of mind, but it is not required.
Helpful Videos
Technical Specifications
OEM Part Numbers: SP-537 CYFS-12Y-2 SP-530-X AYFS-32Y-RX
The 2013-2018 Ford C-Max uses a 2.0L 4-cylinder engine. The OEM spark plugs are typically Iridium fine-wire plugs. The spark plug socket size is 16mm or 5/8 inch. Torque specification for tightening is approximately 12-15 Nm.
