Cadillac XTS (2013-2019) Engine Oil Pressure Switch and Sensor Guide
Understanding the oil pressure switch in your 2013-2019 Cadillac XTS and how to choose the right replacement part.
- A faulty oil pressure switch on the XTS causes an erratic gauge or warning light; the most common fault code is P0521.
- Do not drive with the oil pressure light on, as it could be a real low-pressure condition that can destroy the engine.
- The switch is located in a tight spot on the front-driver's side of the engine; a special socket is recommended for DIY replacement.
- For reliability, choose an OEM (ACDelco) or a reputable aftermarket brand like Standard Ignition over budget options with poor reviews.
Is Your Oil Pressure Light On? What It Means for Your XTS
The engine oil pressure switch in the 2013-2019 Cadillac XTS is a small but vital sensor. When it fails, it can cause confusing and alarming warnings on your dashboard. Understanding these symptoms is the first step to a correct diagnosis.
Common Failure Symptoms
- Oil Pressure Warning Light: The most common sign is the red oil pressure light illuminating on your dash. This light means you should stop the engine as soon as it is safe to do so.
- Erratic Gauge Readings: The oil pressure gauge may behave strangely. It might be stuck at zero, maxed out at the highest reading, or jump back and forth unpredictably.
- Check Engine Light: A failing oil pressure switch can trigger the Check Engine Light. A common trouble code associated with this is P0521 🎬 Watch this video to see how to fix code P0521. (Engine Oil Pressure Sensor/Switch Range/Performance).
Choosing the Right Aftermarket Oil Pressure Switch
When replacing the oil pressure switch, you have options besides the expensive dealership part. However, not all aftermarket brands are created equal, especially for an important sensor like this.
Brand Quality Tiers
- OEM (ACDelco): The original part (ACDelco D1843A) is the benchmark for fit and quality. It's the safest, most reliable choice, designed specifically for your vehicle by GM.
- Premium Aftermarket (Standard Ignition): Brands like Standard Ignition (SMP) are well-regarded in the industry. They often have robust quality control and engineering, making them a reliable alternative to OEM. Their parts are designed to provide accurate readings and a long service life.

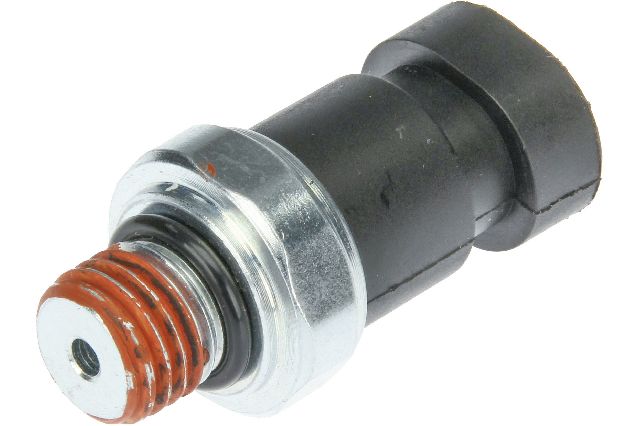

- Budget Aftermarket (URO Parts): URO Parts is known as a budget-friendly option. While some of their mechanical parts are acceptable, their electrical components have a mixed reputation. Some owners report these sensors failing prematurely or even breaking during installation. This brand is a gamble; it may work fine, or it may cause you to do the job twice.
- Unknown Brands (True Tech): Searches for the "True Tech" brand of auto parts did not yield information about a parts manufacturer. Results consistently point to independent repair shops with this name. Without verifiable information or reviews, installing a part from an unknown brand is not recommended.
Replacement Cost for 2013-2019 Cadillac XTS
The cost to replace the oil pressure switch depends on who does the work and the quality of the part you choose. The location of the switch on the 3.6L V6 makes it a moderately difficult job due to tight access.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (ACDelco) Part | $50 - $75 |
| New Aftermarket Part | $27.94 - $65.68 |
| Shop Labor Cost | $146 - $215 |
| Total Professional Replacement | $200 - $290 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on the 2013-2019 XTS?
On the 3.6L V6 engine, the oil pressure switch is located on the front of the engine, on the driver's side. It is screwed into the oil filter housing, below the oil filter and near the power steering lines. It is difficult to see and reach from above. Access is improved by removing the engine cover and air intake tube.
Can I replace the XTS oil pressure switch myself?
Yes, this is a DIY-feasible job for someone with mechanical experience and the right tools. However, it is not for beginners. 🎬 Watch a step-by-step walkthrough of the 3.6L sensor replacement. The tight access makes it challenging, and a special oil pressure switch socket is highly recommended to avoid complications. The job typically takes 1 to 1.5 hours.
Is the oil pressure switch the same as the oil level sensor?
No. The oil pressure switch (the part this article is about) measures the pressure of the oil being pumped through the engine. The oil level sensor is located in the oil pan and simply measures the amount of oil available. A bad pressure switch will give you a warning light or bad gauge reading, while a bad level sensor might give a "low oil level" message on the driver information center.
My oil light is on. Is it safe to keep driving my XTS?
No, it is not recommended. If the light is on, you don't know if you have a $40 sensor problem or a $4,000 engine problem. Pull over as soon as it is safe, turn off the engine, and check the oil level using the dipstick. If the oil level is fine, it's likely the sensor, but you should still have the vehicle towed or inspected by a professional to confirm the actual oil pressure with a mechanical gauge.
Helpful Videos
Technical Specifications
OEM Part Numbers: D1843A 12674782 12616646
The sensor for the 2013-2019 Cadillac XTS 3.6L V6 is a 3-terminal switch that both sends a pressure reading to the gauge and signals the computer.
