Cadillac XTS Manifold Absolute Pressure (MAP) Sensor: A Complete Guide (2013-2019)
Understanding the signs of a failing MAP sensor and how to choose the right replacement for your 3.6L V6 XTS.
- A failing MAP sensor on the XTS causes rough idle, poor acceleration, and bad fuel economy, often with a P0106 check engine code.
- Replacement is moderately difficult as the sensor is located under the intake manifold, which must be lifted for access.
- While replacing the MAP sensor, it is highly recommended to also replace the intake manifold gaskets to prevent future vacuum leaks.
- For best results, use an OEM (ACDelco) or premium aftermarket brand (Bosch, Delphi) to avoid premature failure and having to repeat the labor-intensive job.
Is Your Cadillac XTS Running Rough? It Could Be the MAP Sensor.
If your 2013-2019 Cadillac XTS is experiencing a rough idle, poor acceleration, or a sudden drop in fuel economy, a failing Manifold Absolute Pressure (MAP) sensor could be the culprit. This small sensor plays a big role in how your 3.6L V6 engine performs. When it fails, it sends incorrect data to the engine's computer, leading to a host of drivability problems. Replacing it is a moderately involved job for this specific vehicle, but understanding the symptoms and your part options can help you make an informed decision.
Symptoms of a Failing MAP Sensor on a Cadillac XTS
A bad MAP sensor can mimic other engine problems, but it typically triggers a specific set of symptoms. The most common sign is the Check Engine Light illuminating on your dashboard. If you use an OBD-II scanner, you might see codes like P0106 (MAP/Barometric Pressure Circuit Range/Performance), P0107 (Circuit Low Input), or P0108 (Circuit High Input).
🎬 Watch: How to diagnose MAP sensor codes P0106, P0107, and P0108.- Rough Idle: Your engine may shake or vibrate noticeably when you're stopped.
- Poor Acceleration and Hesitation: The car may feel sluggish, stumble, or delay when you press the gas pedal.
- Decreased Fuel Economy: An incorrect air-fuel mixture caused by a bad sensor often leads to burning more fuel than necessary.
- Black Smoke from Exhaust: In some cases, a faulty sensor can cause the engine to run too rich (too much fuel), resulting in black smoke.
- Hard Starting: The engine may take longer to crank over or fail to start if the computer can't get a proper air pressure reading.
Don't Mistake Other Issues for a Bad MAP Sensor
Before replacing the MAP sensor, it's wise to rule out other common problems on the 3.6L V6 engine that can cause similar symptoms. A dirty throttle body can cause hesitation and rough idling. Vacuum leaks from cracked hoses or a bad intake manifold gasket can also send incorrect pressure readings to the ECU. It's recommended to have these areas checked to avoid a misdiagnosis.
Choosing the Right Aftermarket MAP Sensor for Your XTS
When shopping for a new MAP sensor, you'll find several brands available. Making the right choice depends on your budget and preference for quality.
Aftermarket Brand Tiers
| Tier | Brands | Quality & Notes |
|---|---|---|
| OEM / Premium Aftermarket | ACDelco, Bosch, Delphi | ACDelco is the original equipment manufacturer (OEM) for GM vehicles, offering a direct fit and factory-grade performance. Bosch is a highly reputable OEM supplier for many brands and is known for its quality and reliability in sensors. Delphi was once part of GM and continues to be a trusted manufacturer of electronic components. For critical sensors, sticking with these brands is highly recommended to ensure compatibility and longevity. |
| Quality Aftermarket | NGK, Standard Ignition (SMP), Spectra Premium, Walker Products | These brands are well-known in the aftermarket and generally offer a good balance of price and quality. Standard Motor Products has a long-standing reputation for producing reliable electronic parts. Spectra Premium and Walker Products are popular choices that design their parts to meet or exceed OE specifications. NGK, famous for spark plugs, also produces a line of reliable engine sensors. |
| Economy Brands | Global Parts, True Tech, Facet, various private labels | While the most budget-friendly, these brands can be a gamble. Some forum users report issues with cheap, unbranded electronic sensors failing prematurely or not performing correctly out of the box. For a component that requires significant labor to access on the XTS, saving a few dollars on the part itself may not be worth the risk of having to do the job twice. |
Installation & Known Issues
Location: On the 2013-2019 Cadillac XTS with the 3.6L V6 engine (both naturally aspirated LFX and twin-turbo LF3), the primary MAP sensor is located on the intake manifold, underneath the upper plenum. This means the intake manifold must be partially disassembled and lifted to gain access, making the replacement more complex than on many other vehicles.
🎬 See this walkthrough on how to remove the upper intake manifold.Pro Tip: While the intake manifold is removed to access the MAP sensor, it is highly recommended to replace the intake manifold gaskets at the same time. These gaskets can become brittle over time and cause vacuum leaks, which lead to similar performance issues. Replacing them during the MAP sensor job is cost-effective and prevents future problems.
Known Issues/TSBs: There are no major recalls or a significant number of Technical Service Bulletins (TSBs) specifically for MAP sensor failure on the 2013-2019 Cadillac XTS. Most common complaints for this vehicle generation relate to the CUE infotainment screen and suspension components.
Frequently Asked Questions (FAQ)
Which MAP sensor do I need for my XTS? The standard V6 or the V-Sport Twin-Turbo?
The naturally aspirated 3.6L V6 (engine code LFX) and the 3.6L Twin-Turbo V6 (engine code LF3) in the V-Sport models may use different MAP sensors due to the different pressure ranges they operate in. The twin-turbo engine often uses multiple pressure sensors. It is critical to verify the correct part number for your specific engine using your vehicle's VIN. The most common OEM part number for the standard LFX engine is ACDelco 12711681.
Can I clean the MAP sensor instead of replacing it?
Sometimes, cleaning a MAP sensor with a dedicated electronic parts cleaner can resolve issues if the sensor is merely dirty. However, given the labor required to access the sensor on the XTS, most mechanics would recommend replacing it to ensure a long-term fix. If you attempt to clean it and the problem persists, you will have to repeat the entire intake manifold removal process.
Is it difficult to replace the MAP sensor myself?
For the Cadillac XTS, this is a moderately difficult DIY job. It requires removing the engine cover, disconnecting various hoses and electrical connectors, and unbolting and lifting the upper intake manifold to access the sensor. If you are not comfortable with this level of disassembly, it is best to leave it to a professional mechanic. The estimated time for this job is around 1.5 to 2 hours.

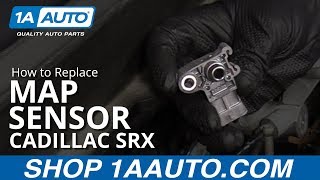

🎬 Watch: Step-by-step MAP sensor replacement on a Cadillac 3.6L engine.What happens if I don't replace a bad MAP sensor?
Driving with a failing MAP sensor is not recommended. It can lead to poor engine performance, stalling, and very poor fuel economy. In the long term, running the engine too rich or too lean can cause damage to other expensive components, such as the spark plugs and catalytic converter.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12711681 12644228 55573248 12591290
The MAP sensor for the Cadillac XTS is typically a 3-pin electronic sensor that mounts directly to the intake manifold. It provides a variable voltage signal to the ECU corresponding to manifold pressure.
