A Guide to Replacing the Starter on a 2013-2020 BMW X3
Don't get stranded; learn the signs of a failing starter and how to choose the right replacement for your X3.
- Starter failure often mimics a dead battery; always test the battery first.
- Bosch is an OE supplier for BMW, making it a reliable aftermarket choice.
- Replacement is a difficult, labor-intensive job that requires removing the intake manifold.
- Check for open safety recalls on your vehicle, as some X3 models have known fire risks related to the starter system.
Is Your BMW X3 Starter Failing?
A failing starter in a BMW X3 often gives warning signs before it leaves you stranded. Many drivers mistake these symptoms for a weak battery. If you experience a slow, labored engine crank, a single loud click, or a series of rapid clicks when you press the start button, the starter is a likely suspect, especially if you've already confirmed your battery is healthy.
Important Safety Recall Information
BMW has issued recalls for certain X3 models due to starter-related fire risks. One recall (NHTSA No. 26V056) affects 2021-2024 models because an internal component can wear out, causing the starter to overheat and potentially catch fire. Another recall (NHTSA ID: 25V636000) was issued for some 2020-2022 X3s for a corroded starter relay that could also lead to overheating and fire, even when the vehicle is parked. While these recalls may fall just outside the 2013-2020 range, they highlight known issues with BMW starter systems. It is critical to check for any open recalls on your specific vehicle using your VIN on the NHTSA website.
Choosing the Right Aftermarket Starter
When replacing the starter on your X3, you have several options. Since the labor can be intensive, choosing a quality part is important to avoid doing the job twice.

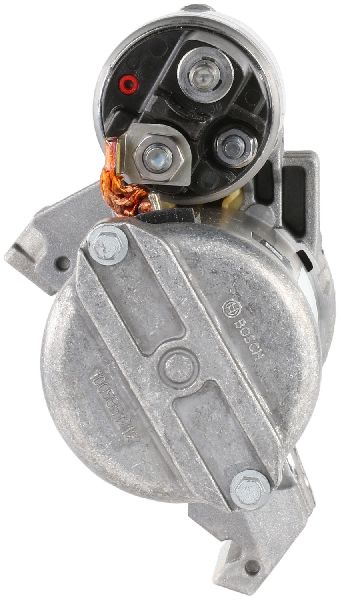

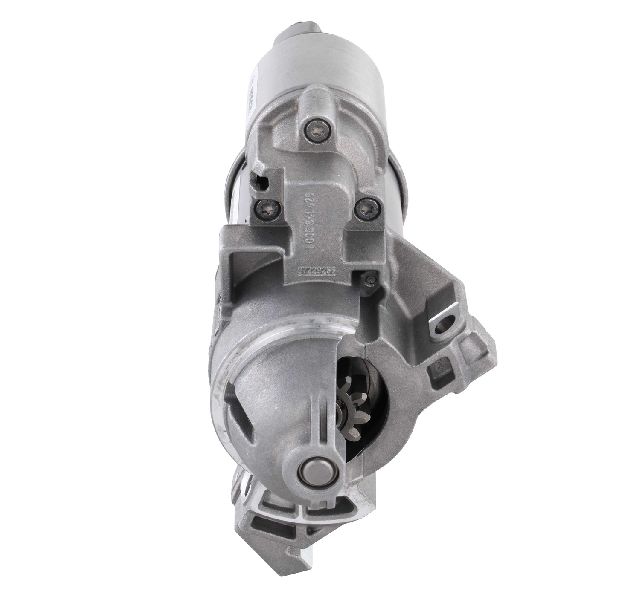

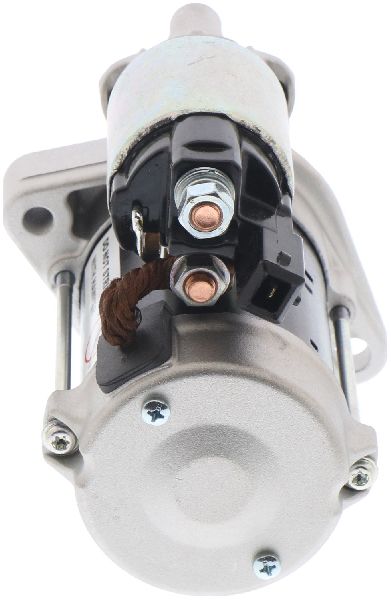

- Bosch (New or Remanufactured): Bosch is an Original Equipment (OE) supplier for BMW. This means a new Bosch starter is often the same part you would get from the dealer, but without the dealer markup. A remanufactured Bosch starter is a more budget-friendly option that is rebuilt to factory specifications. Given their OE status, Bosch is generally considered a top-tier choice for quality and fit.

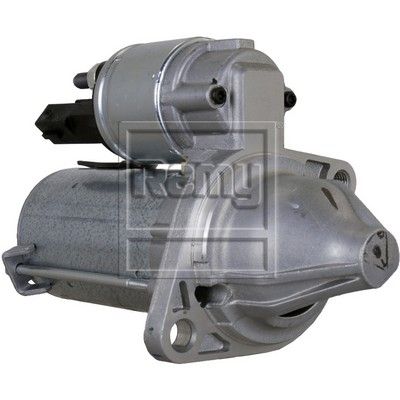

- Remy: Remy is a well-established aftermarket brand. Owner experiences can be mixed, with some reporting solid performance while others have seen premature failures. They can be a good mid-tier option if a Bosch unit is not in your budget.
- BBB Industries: BBB Industries is a major supplier of remanufactured parts to many auto part stores. They are a common budget-friendly choice. While generally considered decent, the quality can be less consistent than a new OE-supplier part.
Pro Tip: Because replacing the starter on an X3 requires removing the intake manifold, it is a labor-intensive job. To save on future labor costs, consider replacing other hard-to-access components at the same time, such as the intake manifold gaskets.
Cost of Replacing Your BMW X3 Starter
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Bosch, Remy, etc.) | $109 - $577 |
| Shop Labor | $450 - $750 |
| Total Estimated Cost | $559 - $1327 |
Cost estimates are approximate and can vary based on your location, vehicle's engine, and the repair shop.
Frequently Asked Questions
Can I drive my X3 with a bad starter?
No. If the starter has failed completely, the engine will not be able to start, leaving you stranded. If it is failing intermittently, you risk being unable to start the car the next time you try.
Is it a bad starter or a dead battery?
This is a common question. If your interior lights and dashboard are bright but the car only clicks or won't crank, the starter is a strong possibility. If the lights are dim and everything seems dead, your battery is the more likely culprit. The best first step is always to test the battery.
Can I replace the starter myself?
For most DIY mechanics, this is a difficult job. The starter is located under the intake manifold, which must be removed for access. This requires significant time and mechanical skill. The job is more complex on all-wheel-drive models due to tight spacing.
Do I need to program the car after replacing the starter?
On BMWs with an automatic engine start-stop (MSA) feature, the vehicle's computer tracks the number of starts. After replacing the starter, this counter should be reset using a BMW diagnostic system to ensure proper function and longevity of the new part.

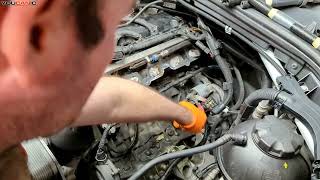

Helpful Videos
Technical Specifications
OEM Part Numbers: 12412354693 12417616502 12417521116 12418621840 12418614519 12418621839 12417638194 12418612576
Primarily 12-volt electric motors. Specific power rating (e.g., 1.7kW, 2.0kW) and gear tooth count vary by engine type (4-cylinder vs. 6-cylinder) and model year. Starters for vehicles with auto start-stop are typically more robust.
