A Ford Fusion Owner's Guide to the 2013-2020 Windshield Washer Pump
Learn to diagnose and replace the windshield washer pump on your 2013-2020 Ford Fusion to keep your view clear.
- Before replacing the pump, check for simpler issues like a blown fuse or a cracked washer hose near the engine's coolant tank.
- The most common failure symptom is the pump motor running with no fluid spray, which often points to a clog, not a dead pump.
- Replacement is a DIY-friendly job that requires accessing the pump through the passenger-side wheel well.
- Quality aftermarket brands like ACDelco and Trico offer a reliable and cost-effective alternative to the more expensive OEM part.
Is Your Fusion's Windshield Washer Pump Failing?
A broken windshield washer pump is a common issue, but it's important to make sure the pump is actually the problem. Before you buy a new part, check for these symptoms and do a couple of quick tests.
Common Symptoms
- No Sound, No Spray: If you activate the washer and hear nothing from the front passenger side of the car, the pump motor has likely failed or is not receiving power. This could also be a blown fuse, so check your owner's manual for the correct fuse location first.
- Pump Hums, But No Fluid Sprays: If you can hear the pump motor running but nothing comes out of the nozzles, the problem might not be the pump itself. This often points to a clog in the system, either at the pump's inlet filter or in the washer lines/nozzles.
- Weak or Uneven Spray: A weak spray that barely hits the windshield can be caused by a failing pump motor, but it's more commonly due to a clog or a leak in the washer fluid hoses.

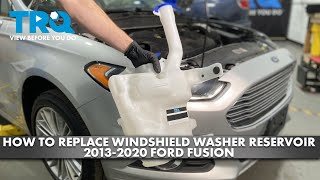

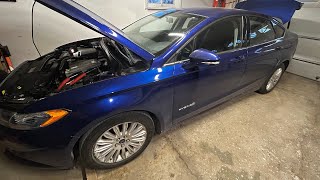

- Visible Fluid Leak: If you notice blue, green, or orange fluid under the front passenger side of your car, you may have a cracked reservoir 🎬 Follow this video if you need to replace the entire reservoir. or a bad seal where the pump enters the tank. A very common issue on the 2013-2020 Fusion is a cracked washer fluid hose where it runs near the hot coolant overflow tank in the engine bay. Always check this hose first. 🎬 See how to find and fix common washer fluid leaks.
Pro Tip: Check for Clogs and Cracks First
Before spending money on a new pump, inspect the washer fluid lines in the engine bay, especially the black plastic hose that runs near the coolant tank. It can become brittle and crack, causing a loss of pressure. Also, some owners report a gel-like substance clogging the pump's filter screen, which can be cleaned out. This can happen from mixing different types of washer fluid.
Choosing a New Aftermarket Washer Pump
For the 2013-2020 Ford Fusion, the original equipment (OEM) Motorcraft pump is a quality part, but aftermarket options provide the same performance for less money. Since this is a simple, non-critical component, a reliable aftermarket brand is a smart choice.
Aftermarket Brand Options
- ACDelco: While often associated with GM vehicles, ACDelco produces reliable replacement parts for many makes and models. They are known for meeting original specifications for fit and function and are considered a dependable, high-quality aftermarket choice.
- Trico: Trico is a well-known brand in the world of wiper blades and washer systems. Their washer pumps are designed to match OEM specifications for a straightforward installation and reliable performance.
Both ACDelco and Trico are solid choices that will restore your washer system's function without the higher cost of an OEM part from the dealer.
Known Issues, Recalls, and Bulletins
There are no active recalls or Technical Service Bulletins (TSBs) for widespread failure of the windshield washer pump itself on the 2013-2020 Ford Fusion. However, be aware of these related issues:
- Brake Hose Recall: Many articles mention a large recall for 2013-2018 Fusions concerning front brake hoses that could leak. This is unrelated to the washer system.
- Wiper Motor Recall: Some Ford vehicles were recalled for faulty wiper *motors* (the part that moves the wiper arms), but this does not affect the washer *pump*.
- Contaminated Fluid Recall (2020 models): A small number of 2020 model year vehicles left the factory with contaminated washer fluid that could damage components. The fix involved flushing the system and replacing the pump and other parts. This was not caused by a faulty pump.
Cost of Replacing a Ford Fusion Washer Pump
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Pump | $24.64 - $42.96 |
| New OEM (Motorcraft) Pump | $50 - $81 |
| Shop Labor | $60 - $120 |
| Total (DIY Aftermarket) | $24.64 - $42.96 |
| Total (Shop-Installed Aftermarket) | $85 - $163 |
Frequently Asked Questions (FAQ)
How difficult is it to replace the washer pump on a 2013-2020 Fusion?

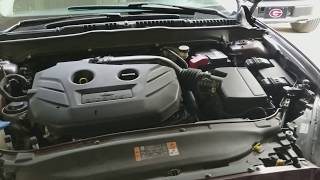

It is a fairly easy DIY job for someone with basic tools. The process involves jacking up the passenger side of the car, removing the front wheel, and partially removing the plastic fender liner to access the pump on the bottom of the reservoir. 🎬 Watch this step-by-step guide to replacing your washer pump. It does not require removing the bumper or headlight. The pump itself just pulls out of a rubber grommet.
Why can I hear the pump but no fluid comes out?
This is a very common symptom. It almost always means the pump is working, but there is a blockage or a major leak. The most likely causes are a clogged filter screen right at the pump's inlet, or a broken/disconnected fluid line between the pump and the nozzles. Check the fluid line in the engine bay first, as it's easiest to access.
Do I need to drain the washer fluid to replace the pump?
Yes, when you pull the old pump out of the reservoir, all the fluid will drain out from the hole. It's best to have a bucket ready to catch the old fluid. You can also try to siphon the fluid out from the filler neck before you begin.
Is there a specific washer pump for the front and rear windshields?
The Ford Fusion is a sedan and does not have a rear wiper or washer. It uses a single pump for the front windshield only.
What OEM part number does this replace?
The washer pump for the 2013-2020 Fusion may have several part numbers depending on the year. Common OEM numbers include BA53-17664-AA (typically for 2013-2016 models) and JL3Z-17664-A (for 2017-2020 models). Aftermarket parts are cross-referenced to fit the entire 2013-2020 range.
Helpful Videos
Technical Specifications
OEM Part Numbers: BA53-17664-AA 8G1Z-17664-A JL3Z-17664-A GR2Z-17664-A
The pump is a small, 12V electric motor that press-fits into a rubber grommet at the bottom of the windshield washer fluid reservoir. It has one electrical connector and one fluid outlet port.
