Chevrolet Equinox Throttle Body Assembly Guide: 2013-2021
Experiencing 'Reduced Engine Power' in your Equinox? Your throttle body might be the culprit.
- The 'Reduced Engine Power' warning is the number one sign of throttle body failure in an Equinox.
- The Throttle Position Sensor (TPS) is integrated into the assembly and cannot be replaced separately; the entire unit is required.
- A 'relearn' procedure is necessary after installation for the engine computer to calibrate to the new part.
- Aftermarket parts like Spectra offer a cost-effective alternative to more expensive OEM parts, but OEM is often preferred by mechanics for this component.
Is Your Equinox Throttle Body Failing?
A common and frustrating issue for 2013-2021 Chevrolet Equinox owners is a sudden message on the dashboard: "Reduced Engine Power." This safety mode is often triggered by a problem with the throttle body assembly. When this happens, your vehicle's speed and performance are severely limited to prevent potential engine damage. Other warning lights, like "Service StabiliTrak" and the Check Engine Light, may also illuminate at the same time.
Common Symptoms of a Bad Throttle Body
- Reduced Engine Power Light: The most prominent sign for Equinox owners.
- Rough or Unstable Idle: The engine may shake, or the RPMs might jump up and down while parked or at a stop.
- Poor Acceleration: The vehicle may feel sluggish or hesitate when you press the gas pedal.
- Engine Stalling: In severe cases, the engine may stall, especially at low speeds or when coming to a stop.
- Check Engine Light: Often with codes like P2135, P0121, or P1101.
The Integrated Throttle Position Sensor (TPS)
On the 2013-2021 Equinox, the throttle position sensor (TPS) is built into the throttle body assembly. It cannot be purchased and replaced separately. If the sensor fails, which is a common cause of the "Reduced Engine Power" mode, the entire throttle body unit must be replaced.
Known Issues, TSBs, and Recalls
While there are no active safety recalls for the throttle body on these specific model years, General Motors has a history of addressing this issue. GM issued a Special Coverage Adjustment (similar to a warranty extension) for earlier model years, including the 2009 Equinox, for the exact same problem: a faulty throttle position sensor causing reduced power mode and setting code P2135. This indicates it's a known failure point on GM vehicles. Technical Service Bulletin (TSB) 12-06-04-003A also exists, providing dealers with a diagnostic and repair procedure for DTC P2135.
Choosing a New Aftermarket Throttle Body
When replacing your Equinox's throttle body, you have a choice between Original Equipment (OEM) from a dealer (ACDelco) and aftermarket brands like Spectra.
- OEM (ACDelco): This is the part your vehicle was built with. Mechanics often recommend sticking with OEM for critical electronic parts like the throttle body to ensure perfect compatibility and reliability. However, it is the most expensive option.
- Aftermarket (Spectra): Aftermarket brands provide a more affordable alternative. Spectra is a known manufacturer that produces a wide range of parts intended to meet original specifications. For many drivers, an aftermarket part offers a good balance of value and performance. While some professional mechanics prefer the guaranteed quality of OEM, an aftermarket unit can be a smart financial choice, especially for an older vehicle.
Pro Tip: Clean It First?
Sometimes, performance issues like a rough idle can be caused by carbon buildup inside the throttle body. Cleaning it with a dedicated throttle body cleaner can sometimes restore performance. However, if you are getting a "Reduced Engine Power" message and codes like P2135, the electronic sensor has likely failed, and cleaning will not fix the problem.
🎬 See how to properly clean carbon buildup from your throttle body.Estimated Replacement Costs
| Part Type | Estimated Part Cost |
|---|---|
| New OEM (ACDelco) | $350 - $600 |
| New Aftermarket (Spectra, etc.) | $242 - $491 |
| Used OEM | $75 - $200 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions (FAQ)
Do I need to perform a 'relearn' procedure after installing a new throttle body?
Yes. After replacement, the engine's computer (ECM) needs to learn the position of the new throttle body. A common relearn procedure for GM vehicles is to start the engine and let it idle in Park for 3 minutes, turn the engine off for 60 seconds, and then repeat the process. Driving the vehicle for a few miles may also allow the computer to adjust automatically.
🎬 Watch a demonstration of the manual throttle body relearn procedure.Is this a difficult part to replace myself?
For a person with basic mechanical skills, this is a very feasible DIY job. It typically involves removing the air intake hose, disconnecting one electrical connector, and removing four bolts. It usually takes about an hour.

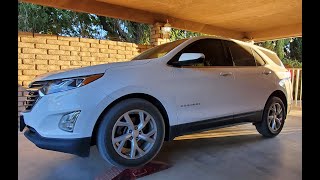

🎬 Watch this step-by-step guide to replacing your Equinox throttle body.Will a new throttle body fix my 'Service StabiliTrak' warning?
It's very likely. The StabiliTrak and traction control systems rely on engine power information to function. When the throttle body fails and puts the car in 'Reduced Engine Power' mode, it often triggers these other warnings as a side effect. Resolving the throttle body issue typically clears these related warnings.
Why can't I just replace the sensor instead of the whole assembly?
For the 2013-2021 Chevrolet Equinox, the Throttle Position Sensor (TPS) is an integral, non-serviceable part of the throttle body assembly. Manufacturers design them this way as a sealed unit, meaning if the sensor fails, the entire component must be replaced.
Helpful Videos

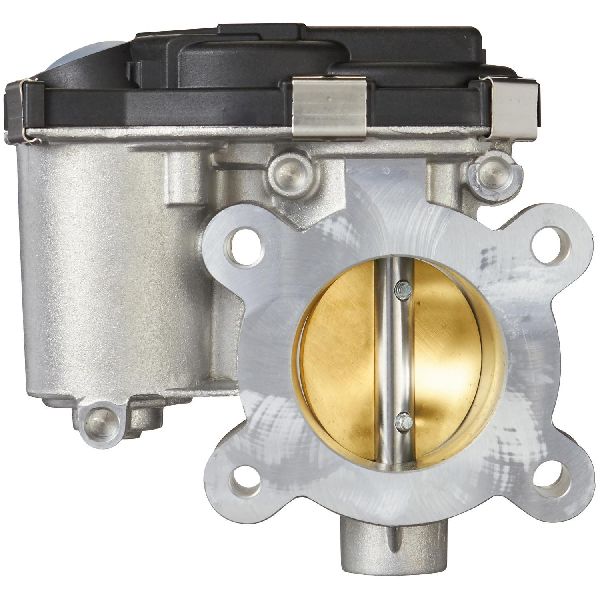

Technical Specifications
OEM Part Numbers: 12670981 12632192 12669143
Electronic Drive-by-Wire with integrated Throttle Position Sensor (TPS). Typically held on by four 10mm bolts.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
