Kia Rio Engine Oil Pressure Switch: A Guide for 2013-2021 Models
Is your oil light on even though your oil level is fine? Your oil pressure switch might be the problem.
- Never ignore an oil pressure light; always check the oil level first.
- A faulty switch is a common, inexpensive repair for the 2013-2021 Kia Rio.
- Symptoms include a flickering oil light with a full oil level or a visible leak from the sensor itself.
- A quality aftermarket switch from a brand like Standard Ignition or Rostra is a reliable, cost-effective alternative to OEM.
Is Your Kia Rio's Oil Light On? Don't Ignore It.
The oil pressure warning light is one of the most serious warnings you can see on your dashboard. It could mean your engine is dangerously low on oil, or it could be a simple, inexpensive sensor failure. For many 2013-2021 Kia Rio owners, a faulty engine oil pressure switch is a common issue. This guide will help you understand the symptoms, choose the right aftermarket replacement, and know what to expect for the repair.
Symptoms of a Failing Oil Pressure Switch on a Kia Rio
The first step is to always check your oil level with the dipstick. If the oil level is full but you're still seeing a warning, you likely have a bad switch. Here are the common signs:
- Flickering or Constant Oil Light: The red oil pressure light on your dash may flicker or stay on constantly, especially at idle or after the engine warms up. This is the most common symptom.
- Incorrect Gauge Reading: If your Rio has an oil pressure gauge, it might read at zero or behave erratically.
- Oil Leak: The switch itself can fail and leak oil. Look for oil residue on or below the sensor, which is located on the engine block, often near the oil filter. A leaking switch can sometimes be misdiagnosed as a more serious rear main seal leak.

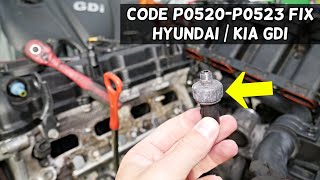

- Check Engine Light: In some cases, a failing switch can trigger the Check Engine Light with codes such as P0520, P0523, or P0524. 🎬 Watch: How to diagnose oil pressure codes on Kia engines.
Critical Warning: Oil Light On = Stop Driving
If your oil pressure light comes on, pull over and turn off the engine as soon as it is safe to do so. Check your oil level. Driving with low oil pressure can destroy your engine in minutes.
Choosing the Right Aftermarket Oil Pressure Switch
For a simple electronic sensor like an oil pressure switch, a quality aftermarket part is a smart, cost-effective choice compared to a more expensive OEM part from the dealer. The key is to select a brand with a reputation for quality control. Based on manufacturing standards and general reputation, here’s how the available brands stack up:
Tier 1: Trusted Aftermarket Brands
- Standard Ignition (SMP): A well-regarded aftermarket leader that manufactures many of its own components in IATF 16949 certified facilities. They are known for extensive testing and often provide performance that meets or exceeds OEM standards.
- Rostra Powertrain: A US-based manufacturer with ISO-9001 and IATF-16949 certifications. Rostra is a known supplier of both OE and aftermarket electronic components, with a focus on quality and reliability.
Tier 2: Reputable Alternatives
- Facet: An Italian company often positioned as an OE-equivalent supplier. They emphasize their use of quality materials and advanced internal technology for durability and accurate pressure response.
- Global Parts / True Tech: These brands are typically value-oriented. While they can provide a functional repair at a low cost, they may not have the same level of documented quality control or manufacturing certifications as Tier 1 brands. They are a suitable choice for budget-conscious repairs.
OEM vs. Aftermarket Quality
While Kia has issued warranty extensions for leaking oil pressure switches on other models, indicating it can be a weak point, the OEM part for the Rio is not prohibitively expensive. However, top-tier aftermarket brands like Standard Ignition and Rostra are often manufactured to the same quality standards (IATF 16949) as original equipment suppliers and offer excellent reliability for less money.
Estimated Replacement Costs for 2013-2021 Kia Rio
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $13 - $26 |
| New OEM Switch | $15 - $30 |
| Shop Labor | $50 - $150 |
| Total Professional Repair | $63 - $180 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch on my 2013-2021 Kia Rio?
The oil pressure switch is screwed into the engine block. On the 1.6L engine common in the Rio, it is typically located near the oil filter housing. You may need to look from underneath the vehicle to spot it.

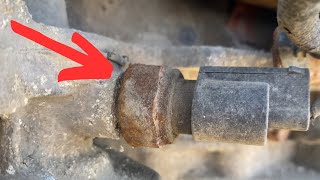

🎬 Watch: See exactly where the oil pressure switch is located.Can I replace the oil pressure switch myself?
Yes, this is a DIY-friendly job for most home mechanics. It involves safely jacking up the car, unplugging the electrical connector, and using a deep socket (often 24mm) to unscrew 🎬 See this step-by-step replacement walkthrough for the 1.6L engine. the old switch and install the new one. Make sure to clean up any spilled oil.
What happens if I ignore a bad oil pressure switch?
Ignoring it is a gamble. If the switch is faulty and leaking, you could run low on oil. If the switch has failed and can no longer warn you of a real low-pressure problem (like a failing oil pump), you could suffer catastrophic engine failure without any warning. For the low cost of the part, it's not worth the risk.
Is a small oil leak from the switch a serious problem?
Yes. Any oil leak should be addressed. A small leak can quickly become a large one, leading to low oil levels that can damage your engine. Since leaking is a primary failure mode for these switches, it's a clear sign that it needs to be replaced immediately.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9475037100 9475037000 9475021030 947502M315
Typically a 1-pin, plug-in style switch with a threaded body for mounting to the engine block. Common tool size for removal is a 24mm deep socket.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
