2014-2016 BMW 228i Windshield Washer Pump: A Complete Replacement Guide
If your washer fluid stops spraying, the pump is the likely culprit—here’s what you need to know before you buy a new one.
- A silent pump means it has likely failed; a humming pump with no spray means it's likely clogged.
- Avoid using washer fluids with special additives (like Rain-X) to prevent clogging the pump's filter.
- Replacement is a manageable DIY job, but requires removing the front passenger wheel and liner to access the pump.
- Always replace the inexpensive rubber grommet/filter with the pump to prevent future leaks and clogs.
Is Your BMW 228i Windshield Washer Pump Failing?
A non-functioning windshield washer system on a BMW 228i is a common issue, but it's rarely a complex one. The pump itself can fail, but more often, the problem is a clog caused by the type of washer fluid used. Before you spend money on a diagnosis, check for these simple signs.
Symptoms of a Bad Washer Pump
- No Sound, No Spray: You pull the washer lever and hear nothing but the wipers moving across a dry windshield. The lack of a distinct humming sound from the front passenger side of the car points directly to a failed pump motor or an electrical issue.
- Sound, But No Spray: If you can hear the pump motor whirring but no fluid comes out, the system is likely clogged. The small filter at the pump's inlet is often blocked by a gel-like sludge. 🎬 Watch how to fix a clogged pump without buying new parts.
- Weak or Uneven Spray: Fluid that just dribbles out or doesn't reach the upper parts of the windshield can be a sign of a dying pump that can't generate enough pressure, or a partial clog.
- Visible Fluid Leaks: A puddle of blue or green washer fluid under the front passenger-side wheel area indicates a leak. This could be from a cracked pump housing or, more commonly, a dried-out rubber grommet where the pump seals to the reservoir.
A Note on Washer Fluids
Many BMW owners in forums report that using washer fluids with additives, like Rain-X, can cause a chemical reaction that creates a gel or slime. This substance clogs the pump's filter screen, causing the pump to strain and eventually burn out. Using only basic blue washer fluid or BMW-specific concentrate is recommended to prevent this common failure.
Choosing the Right Aftermarket Pump: Trico vs. URO Parts
For a non-critical part like a washer pump, an aftermarket replacement offers excellent value compared to a dealer part. Both Trico and URO Parts are common aftermarket choices for your 228i.
- URO Parts: A well-known brand for affordable European car parts. For a simple component like a washer pump, URO is generally considered a reliable, budget-friendly choice that fits correctly and restores function. It's a solid pick for owners focused on cost-effective repairs.
- Trico: While famous for its wiper blades, Trico also manufactures washer pumps. Their pumps are often designed to be universal but are listed as a direct fit for this application. They are known for being easy to install.
Pro Tip: Regardless of which brand you choose, always replace the small rubber grommet/filter that seals the pump to the reservoir. This part is a frequent failure point, causing leaks and clogs, and is very inexpensive to replace at the same time as the pump.
Cost of Replacing a 2014-2016 BMW 228i Washer Pump
The replacement is straightforward for a DIYer, but accessing the pump is labor-intensive. 🎬 See how to remove the fender liner to access the pump. Shops charge accordingly for the time it takes to remove the wheel and fender liner.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Pump | $15 - $39 |
| New OEM Pump | $60 - $88 |
| Shop Labor | $195 - $286 |
| Total Professional Replacement | $240 - $375 |
Frequently Asked Questions
Is there a recall on the 2014-2016 BMW 228i washer pump?
No, there are no recalls or technical service bulletins (TSBs) for the windshield washer pump. However, there is a major recall (NHTSA ID: 24V-608) for the engine's main water pump on these models due to a fire risk. Do not confuse this with the windshield washer pump.
Can I replace the washer pump myself?
Yes, this is a very feasible DIY project if you are comfortable with jacking up your car and removing a wheel. The process 🎬 Watch this step-by-step 228i washer pump replacement walkthrough. involves removing the front passenger wheel and the plastic wheel well liner to access the washer fluid tank. The pump itself simply pulls out from the bottom of the tank.
Where is the washer pump located on my 228i?
The washer pump is inserted into the bottom of the washer fluid reservoir. The entire assembly is hidden behind the fender liner of the front passenger-side wheel well.
My car has headlight washers. Does it use the same pump?
No, vehicles equipped with headlight washers typically have two separate pumps mounted on the reservoir. The pump for the windshield is usually the one mounted lower on the tank.

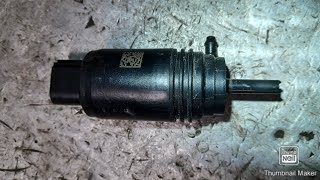

Helpful Videos
Technical Specifications
OEM Part Numbers: 67127302589
Located at the bottom of the washer fluid reservoir, behind the front passenger-side wheel well liner.
