Choosing the Right Disc Brake Pad Set for Your 2014-2016 Cadillac ELR
Understand how your ELR's unique braking system affects brake pad choice and longevity.
- Your ELR's regenerative braking means pads last a very long time, but infrequent use can cause rust and noise.
- Choose high-quality ceramic brake pads from brands like Akebono, Bosch, or ACDelco for quiet, low-dust performance.
- Replacing pads is a standard DIY job, but DO NOT attempt to bleed the brakes without professional, pressure-based equipment.
- It is highly recommended to replace pads and rotors together to ensure smooth, quiet operation.
Understanding Your ELR's Brakes: It's Not a Typical Car
The 2014-2016 Cadillac ELR uses its electric motor for most of its slowing and stopping. This is called regenerative braking. It captures energy to help charge the battery. The main benefit is that your conventional brake pads are used far less often than in a standard car. While this means pads can last for an exceptionally long time, it can also cause unique problems. Because the pads and rotors are not used frequently, they can develop rust or corrosion from moisture. Sometimes, the brake pads can make noise or the calipers can stick, not from being worn out, but from lack of use.
Symptoms of Worn or Failing Brake Pads
Even with regenerative braking, your brake pads will eventually need replacement. Watch for these signs:
- High-Pitched Squealing: Most brake pads have a small metal tab called a wear indicator. When the pad material gets too thin, this tab scrapes against the brake rotor and makes a loud squeal.
- Grinding Noise: If you hear a loud, metallic grinding or growling sound, stop driving as soon as it is safe. This means the pad material is completely gone, and the metal backing plate is grinding against the rotor, causing severe damage.
- Vibration or Pulsing: If you feel a pulsing in the brake pedal or a vibration in the steering wheel when you brake, your brake rotors may be warped. This can happen from overheating or from rust buildup.
- "Service Brake Assist" Message: While this can be caused by many issues, on an ELR it can sometimes point to problems in the complex electro-hydraulic brake system, not just the pads.
A Note on Rust
Because the ELR's friction brakes are used so little, it's common to see a thin layer of rust on the brake rotors, especially after rain or washing the car. This is normal and usually scrubs off the first few times you use the brakes. However, if the brakes are noisy or vibrate constantly, it could be a sign of more significant rust buildup or glazing that needs to be inspected.
Choosing the Right Aftermarket Brake Pads
Since you don't have to change ELR brake pads often, it's worth choosing a quality set to ensure quiet, reliable performance when you need it. Ceramic pads are highly recommended for the ELR. They are known for being quiet and producing very little dust, which keeps your wheels cleaner.
Brand Tiers for the Cadillac ELR
Daily Driver / OEM-Equivalent Brands: These brands offer quality and performance similar to the original parts. They are an excellent choice for most ELR owners.
- ACDelco: As General Motors' own parts brand, ACDelco is a safe bet for a perfect fit and OEM-level performance. Their Professional (Gold) line is considered a top-tier replacement.
- Akebono: A major supplier of original pads to many automakers, Akebono's ProACT line is a premium ceramic option known for being extremely quiet and low-dust.
- Bosch: The QuietCast line from Bosch is a very popular and well-regarded premium ceramic pad that focuses on silent stopping and low dust.
- Wagner: The ThermoQuiet line is another quality ceramic option from a long-standing, reputable brand in the brake industry.
- Raybestos / Centric: These are large aftermarket manufacturers that produce reliable, quality replacement parts that meet or exceed OEM specifications.
Performance Upgrade Brands: If you want more initial bite or are looking for a specific performance characteristic, these brands are a good option. They are often sold as part of a kit with upgraded rotors.
- Powerstop: Specializes in complete brake kits (pads and rotors) that are marketed as a performance upgrade over stock for improved stopping power and low dust.
- Hawk Performance / EBC Brakes: These brands are geared more towards performance driving. They offer aggressive pads that provide excellent stopping power but may produce more noise and dust than daily-driver ceramic pads.
- Brembo: Known for high-performance braking systems, Brembo offers premium aftermarket pads that provide excellent performance, though they can sometimes be dustier than ceramic-focused pads.
Economy Brands: While more affordable, these pads may not offer the same level of noise reduction or low-dust characteristics as premium ceramic options. Given the long life of ELR brake pads, investing in a mid-tier or premium pad is generally recommended.
Cost of Aftermarket Disc Brake Pad Sets (2014-2016 Cadillac ELR)
| Tier | Part Cost (Pads Only) | Typical Brands |
|---|---|---|
| Economy | $31 - $60 | Dynamic Friction, Pronto, Total Stopping Solutions |
| Daily Driver / OEM-Equivalent | $60 - $150 | ACDelco, Bosch, Wagner, Raybestos, Centric |
| Premium / Performance | $150 - $485+ | Akebono, Brembo, Powerstop, Hawk, EBC Brakes |
Note: Prices are estimates for a set of front or rear pads and can vary based on retailer and included hardware. Labor costs are additional.
Known Issues & Recalls
There was a safety recall (NHTSA #14V144) for some 2014 ELR models related to the Electronic Brake Control Module (EBCM) software. This required a software update from a dealer but does not affect the physical brake pads. Additionally, a service bulletin was issued for 2014-2015 models for an EBCM reprogram to fix a brake light issue. These highlight the complexity of the ELR's braking system. Any work that involves opening the hydraulic system, such as bleeding the brakes, is complex and requires special pressure-bleeding equipment; it is not recommended for most DIY mechanics.
Frequently Asked Questions (FAQ)
Do I need special brake pads for an electric vehicle like the ELR?
No, the ELR does not require a physically different type of brake pad. However, because the pads are used so infrequently, it's best to use a high-quality ceramic pad. They resist corrosion better and are less likely to cause noise and dust issues.
Why have my original brake pads lasted over 100,000 miles?
This is normal for the ELR. The regenerative braking system handles up to 80% of your daily stopping needs. The friction brakes are only used for the final few feet of a stop, or in hard braking situations, leading to extremely long pad life.
Can I replace the brake pads on my ELR myself?
Replacing the pads and rotors themselves is a job a skilled DIYer can do, as the mechanical process is similar to other cars. However, you should NOT open the hydraulic system (like when bleeding the brakes) unless you have the proper tools. The ELR/Volt system requires a specific pressure-bleeding procedure to remove air from the complex electro-hydraulic unit, and a simple manual bleed will not work.
Should I replace my brake rotors at the same time as the pads?
It is always best practice to replace pads and rotors together. On the ELR, because of the long intervals between brake jobs, the rotors are more likely to have issues with rust pitting or warping than on a conventional car. Replacing them together ensures smooth, quiet braking performance.
Helpful Videos
Technical Specifications

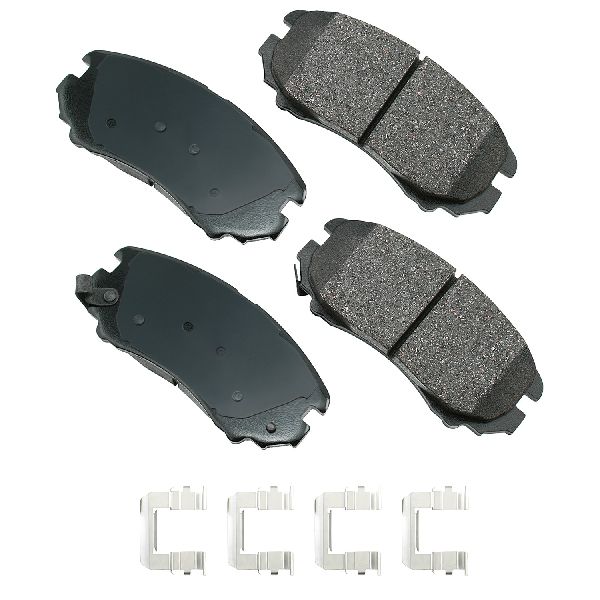

OEM Part Numbers: 22907108 22907109 84351323
The 2014-2016 Cadillac ELR uses front and rear disc brakes. Due to the regenerative braking system, brake pads are typically made of ceramic or low-metallic formulations to manage noise and corrosion from infrequent use.
