Chevrolet SS Engine Oil Pressure Switch: A Guide for 2014-2017 Owners
Is your oil pressure gauge acting strange? Here’s what you need to know about fixing it.
- A bad oil pressure switch is a common issue, but you must rule out actual low oil pressure, which can destroy the engine.
- The sensor is located behind the intake manifold, making replacement a difficult and labor-intensive job not recommended for beginners.
- Always replace the small filter screen located underneath the sensor at the same time.
- There are no recalls for this part, but be aware of TSBs that point to potential oil pump issues on LS engines if a new sensor doesn't fix the problem.
Is Your Oil Pressure Gauge Lying to You?
A faulty oil pressure switch on your 2014-2017 Chevrolet SS can be alarming. You might see the oil pressure gauge drop to zero, or the "Low Oil Pressure" warning might flash on your dash. While this can indicate a serious engine problem, it's often just a failed sensor giving a false reading. These sensors are a known failure point on GM's LS-family of engines. They can fail electronically, start leaking oil, or send incorrect signals.
Symptoms of a Failing Oil Pressure Switch
- Oil Pressure Warning Light: The most obvious sign is the oil warning light on your dashboard turning on or flickering, even if the oil level is correct.
- Incorrect Gauge Readings: The oil pressure gauge may be stuck at zero, maxed out, or jump around erratically.
- Check Engine Light: The sensor can trigger a Check Engine Light. A common trouble code is P0521, which points to a problem with the sensor's performance. 🎬 Watch: Understanding the P0521 code and how to fix it.
- Oil Leaks: Sometimes the sensor itself will leak oil. You might find oil on the back of the engine or dripping down the bellhousing. The leak can also happen internally, filling the electrical connector with oil.
Warning: Sensor Failure vs. Real Low Oil Pressure
While a bad sensor is common, a low oil pressure warning can also mean your engine is truly starving for oil. This could be due to a failing oil pump, which is a known issue on some LS engines. If you hear any engine noise like ticking, knocking, or rattling along with the warning, shut off the engine immediately and have it towed to a professional. Driving with no oil pressure can destroy your engine.
Choosing the Right Aftermarket Part
The oil pressure switch on the LS3 is difficult to access, so you want to use a quality part to avoid doing the job twice. While the OEM ACDelco part is always an option, some owners report failures even with new OEM sensors. Quality aftermarket brands can be a reliable and cost-effective alternative.
- Standard Motor Products (SMP): A well-regarded aftermarket brand that has been around for a long time. They often produce parts that meet or exceed OEM quality, and in some cases, they even re-box the original factory part. They are generally considered a safe bet for sensors.
- Vemo: Often positioned as a premium aftermarket brand, Vemo specializes in sensors and electronic components. They are a strong choice if you are looking for high-quality manufacturing.
- Walker Products: An established name in engine management parts, Walker produces a wide range of sensors. They engineer their parts to be durable and meet OEM specifications for fit and function.
Pro Tip: Check the Filter Screen
There is a small, thimble-shaped filter screen in the engine block, right below the oil pressure sensor. This screen can get clogged with sludge and debris, causing incorrect pressure readings or oil starvation to the sensor. It is highly recommended to replace this small filter when you replace the sensor. 🎬 See how to swap the sensor and screen without removing the manifold. Many new sensors come with a new filter.
Cost of Replacing the Engine Oil Pressure Switch
The location of the sensor behind the intake manifold makes this a labor-intensive job. While the part itself is not extremely expensive, the labor can be several hours.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (ACDelco) Part | $60 - $100 |
| New Aftermarket Part | $46 - $82 |
| Shop Labor | $300 - $550 |
| Total Professional Replacement | $350 - $650 |
Frequently Asked Questions
Where is the oil pressure switch located on my Chevy SS?
The oil pressure switch is located on the top of the engine block, at the very back, behind the intake manifold. It is positioned just below the edge of the cowl, making it very difficult to see and reach.
Can I replace the oil pressure switch myself?
This is a difficult DIY job. Because of the sensor's location, the common procedure requires removing the entire intake manifold. While some experienced mechanics can change it without removing the manifold, it requires special tools and working by feel in a very tight space. For most owners, professional installation is recommended.
Are there any recalls for this part?
No, there are no specific recalls from GM or NHTSA for the engine oil pressure switch on the 2014-2017 Chevrolet SS. There are, however, technical service bulletins (TSBs) for low oil pressure conditions on similar GM V8 engines, which sometimes point to issues with the oil pump itself, not just the sensor.
What tools are needed for the replacement?
If you attempt this job, you will need a full set of mechanic's tools, a torque wrench, and a special oil pressure switch socket, which is typically 1-1/16 inches deep. 🎬 Watch this step-by-step replacement guide for the 6.2L V8 engine. You will also need new intake manifold gaskets if you remove the manifold.

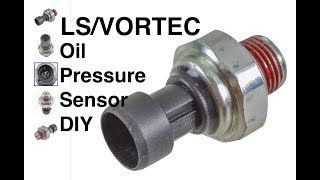

Helpful Videos
Technical Specifications
OEM Part Numbers: 12673134 12621234 19244500
The sensor for the LS3 engine is a 3-wire sensor that provides a variable voltage signal to the ECU based on pressure. It installs with a 1-1/16 inch socket.
