Ford Escape A/C Compressor Clutch Assembly Guide (2014-2019)
Is your 2014-2019 Ford Escape's A/C blowing warm air? The problem might be the A/C compressor clutch.
- Common failure symptoms include no cold air, grinding/squealing noises with the A/C on, and the clutch plate not spinning.
- You can choose to replace just the clutch kit (cheaper, no refrigerant work) or the entire compressor assembly (more reliable, but requires professional A/C service).
- Motorcraft is the OEM brand and is recommended for reliability over many aftermarket options for this specific part.
- If you have a 1.6L engine, check for a broken A/C line near the compressor, as this is a known issue (TSB 19-2287) that also causes a loss of cooling.
Is Your Escape's A/C Clutch Failing?
When the air conditioning in your 2014-2019 Ford Escape stops working, the compressor clutch is a common suspect. Before you assume the entire A/C system is shot, look for these specific signs of a clutch failure.
Symptoms of a Bad A/C Clutch
- No Cold Air: The most obvious symptom is warm or lukewarm air from the vents when the A/C is on. The system seems to be on, but there's no cooling.
- Strange Noises: You may hear grinding, squealing, or rattling sounds from the engine bay when you turn the A/C on. If the noise disappears when you turn the A/C off, it strongly points to a problem with the compressor or its clutch.
- Clutch Not Engaging: With the engine running, have a helper turn the A/C on and off. Look at the very front of the A/C compressor pulley. You should see the outer plate (the clutch) click and start spinning with the pulley. If it doesn't move, the clutch is not engaging.
- Blown Fuses or Relays: Sometimes the problem is electrical. A failing clutch coil can blow a fuse. For this Escape generation, check fuses F27, F71, and F88, and the A/C clutch relay (R11).
Known Issue for 1.6L EcoBoost Engines
Owners of 2014-2016 Escapes with the 1.6L engine should be aware of a specific Technical Service Bulletin (TSB 19-2287). This TSB notes that the A/C inlet line can break where it connects to the compressor. This is caused by pressure from nearby oil cooler lines. The symptom is a sudden loss of cooling and refrigerant. The fix involves replacing the line and installing a new support clip to prevent it from happening again.
Choosing Your Repair: Clutch Kit vs. Full Compressor Assembly
You have two main options for this repair, and the right one depends on your budget and mechanical skill.
1. Replace the A/C Compressor Clutch Kit Only

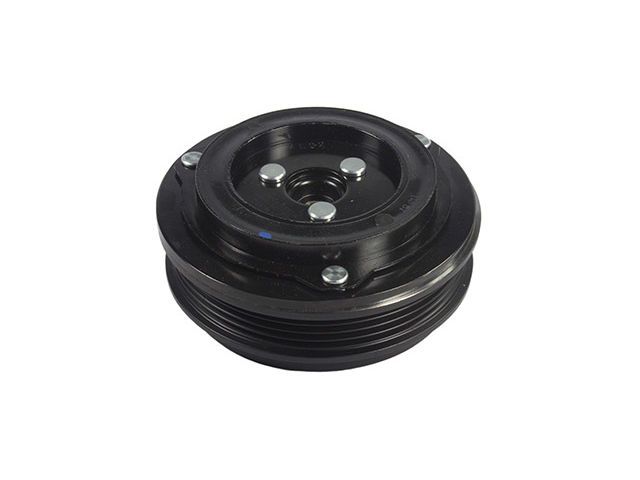

This includes the clutch plate, pulley with bearing, and the electromagnetic coil.
Pros: Much cheaper in terms of parts. Crucially, you do not need to open the sealed refrigerant system. This means you don't have to pay a shop to evacuate and recharge the A/C system.
Cons: It's a more detailed repair that requires special tools like snap-ring pliers and a puller. Most repair shops will not perform this service; they prefer to replace the whole unit to guarantee the repair, as a failing clutch bearing can sometimes be a sign of a future compressor failure.
2. Replace the Entire A/C Compressor and Clutch Assembly
This is a single unit that includes the compressor, clutch, pulley, and bearing. Motorcraft is the original equipment (OEM) manufacturer for Ford, meaning their parts are identical to what was installed at the factory. While aftermarket options exist, owner feedback often suggests that sticking with Motorcraft provides better long-term reliability for this part.
Pros: A more straightforward, though larger, job. It replaces all related wear components at once, providing greater peace of mind. This is the repair nearly all professional shops will perform.
Cons: More expensive part. It REQUIRES a professional to safely evacuate the old refrigerant before installation and recharge the system with the correct amount of refrigerant and oil afterward. Failure to do so will cause the new compressor to fail quickly.
A Note on Brands
Motorcraft is Ford's own brand, so a new Motorcraft compressor is a direct, factory-quality replacement. While various aftermarket brands are available, forum discussions from other Ford owners often highlight performance and longevity issues with non-OEM compressors, sometimes leading them to buy the Motorcraft part after an aftermarket unit fails prematurely. If your budget allows, choosing the OEM part is a safer bet for reliability.
Ford Escape A/C Repair Cost Comparison
| Part / Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Compressor Assembly | $500 - $650 |
| New Aftermarket Compressor Assembly | $301.43 |
| New Aftermarket Clutch Kit Only | $60 - $100 |
| Shop Labor (Full Compressor Replacement) | $140 - $205 |
| Shop Labor (Clutch Only, if you can find one) | $400 - $600 (includes labor) |
Frequently Asked Questions (FAQ)
Can I replace just the A/C clutch myself?
Yes, this is a feasible DIY project if you are mechanically inclined. The main benefit is not needing to handle refrigerant. However, you will need specific tools like snap ring pliers, a clutch holding tool, and possibly a puller. Access is tight, so you'll need to remove the front passenger wheel and splash shield.
Why do shops insist on replacing the whole compressor?
Shops prefer replacing the entire assembly for two reasons: liability and efficiency. If they only replace the clutch and the old compressor fails a month later, the customer will be unhappy. Replacing the whole unit is a more guaranteed repair. It's also often faster for them than the detailed work of swapping just the clutch components.
What is a TSB? Is it a recall?
A Technical Service Bulletin (TSB) is not a recall. It is a notice from the manufacturer to dealerships about a common problem and a recommended repair procedure. Repairs under a TSB are typically only free if your vehicle is still under warranty. There are no active recalls for the A/C compressor clutch on the 2014-2019 Ford Escape.
My A/C works, but there's a loud squealing from a pulley. Is this the clutch?
It could be the bearing inside the A/C clutch pulley. This bearing spins whenever the engine is on, even if the A/C is off. A worn-out bearing will make a constant squealing or grinding noise. In this case, replacing the clutch kit (which includes a new bearing) can solve the problem without replacing the whole compressor.
Technical Specifications
OEM Part Numbers: CV6Z-19703-M CV61-19D629-CE CV6Z19703F
Compressor Type: VS16, Grooves: 4, Voltage: 12V.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
