A Guide to Replacing the Radiator on a 2014-2019 Nissan Versa Note
Keep your Versa Note's engine from overheating by understanding radiator failure and choosing the right replacement part.
- You MUST order the correct radiator for your transmission type (Automatic/CVT or Manual).
- Before replacing the radiator for overheating, verify that the radiator cooling fan is working properly.
- It is best practice to replace the radiator cap, thermostat, and hoses at the same time as the radiator.
- Always bleed the air out of the cooling system after the replacement to prevent overheating issues.
Is Your Versa Note's Radiator Failing?
A bad radiator can lead to serious and expensive engine damage. If you notice any of these signs, it's time to inspect your cooling system immediately. The most common failures on these cars involve the plastic side tanks developing cracks or leaks where they are crimped to the aluminum center section.
Key Symptoms of Radiator Failure:
- Engine Overheating: The most obvious sign is the temperature gauge on your dashboard climbing into the red zone. You might also see steam coming from under the hood.
- Coolant Leaks: Brightly colored puddles of fluid under the front of your car are a dead giveaway. Nissan uses a blue coolant, but it could also be green or pink depending on what's in the system.
- Low Coolant Level: If you constantly have to top off the coolant in the plastic overflow tank, you have a leak somewhere.
- Sweet Smell: Leaking coolant has a distinct sweet smell when it burns off on hot engine parts.
Critical Part Check: Automatic vs. Manual Transmission
Before you order, you MUST verify your Versa Note's transmission type. Radiators for automatic (CVT) transmissions have an extra, integrated cooler for the transmission fluid. They have two extra ports for these lines. The radiator for a manual transmission does not have these. They are NOT interchangeable. Installing the wrong part will lead to severe transmission damage.
Is it the Radiator or Just the Fan?
A very common issue on the Versa Note that mimics a bad radiator is a failed radiator cooling fan assembly. If your car overheats in stop-and-go traffic but the temperature returns to normal on the highway, 🎬 See how to diagnose and swap a faulty radiator fan. your fan is the likely culprit. The fan is supposed to pull air through the radiator when the car isn't moving fast enough. Always check that your fan turns on as the engine gets hot before you decide to replace the radiator.
🎬 Watch: Step-by-step guide to replacing your Versa cooling fan assembly.Choosing the Right Aftermarket Radiator
The original Nissan radiator uses a plastic and aluminum design that can become brittle and leak over time. High-quality aftermarket parts offer excellent performance and value. Here’s a breakdown of common brands.

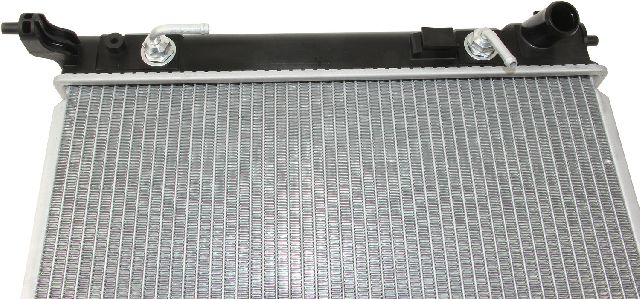

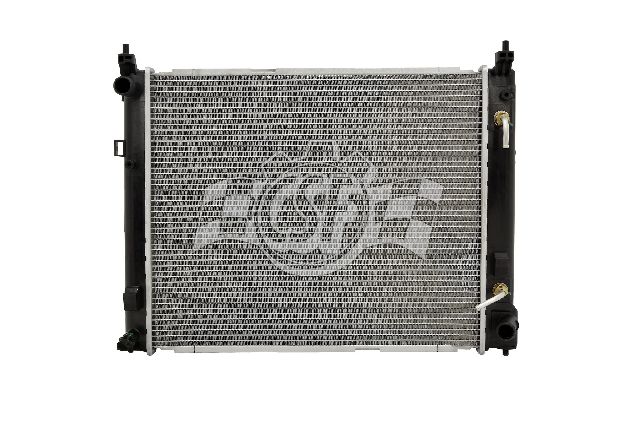

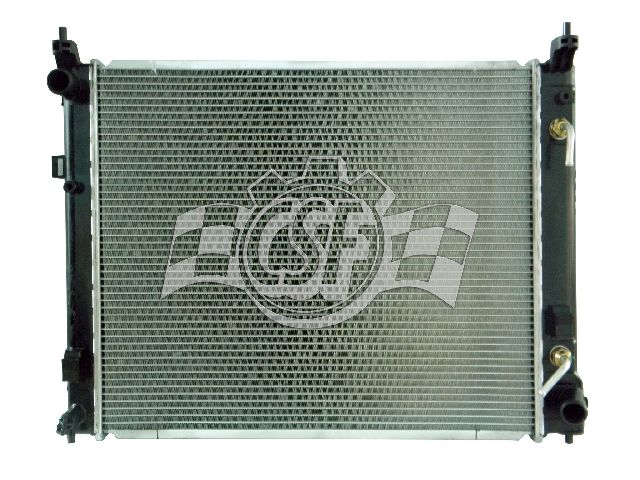

- Premium Tier (OEM Quality): Brands like Denso and CSF are well-regarded in the industry. Denso is a major OEM supplier for many Japanese cars, and their aftermarket parts are known for reliability. CSF is a specialty cooling system manufacturer known for good fitment and sometimes offers slightly thicker cores for improved cooling.

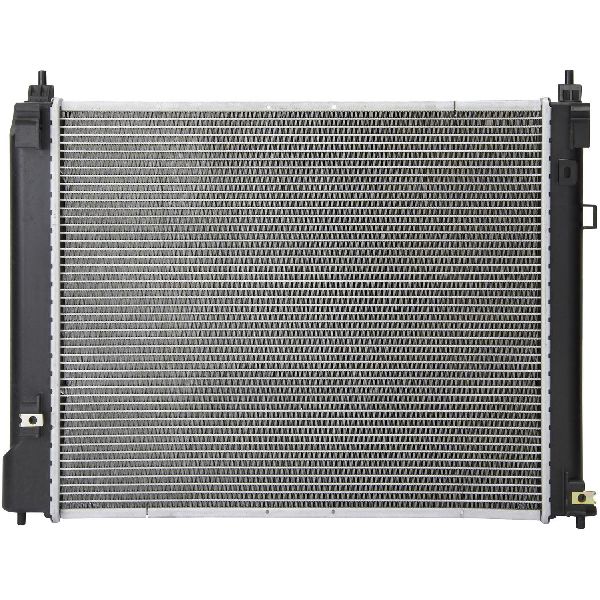

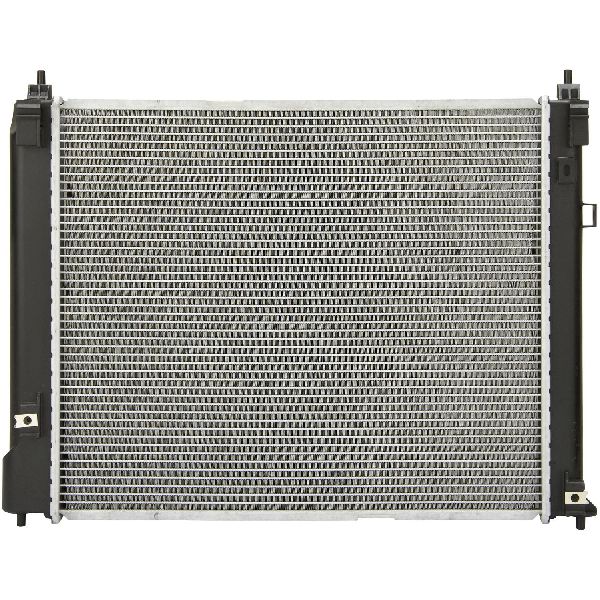

- Standard Tier (Reliable Alternatives): Brands like Spectra Premium and Nissens offer a great balance of quality and price. They are popular choices that generally fit and function correctly. While most find the fitment to be good, it's always wise to inspect any new part for quality before installation.

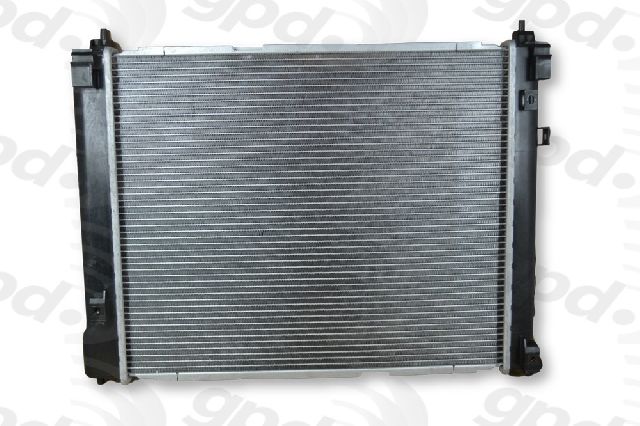

- Economy Tier: Brands like Global Parts are typically the most budget-friendly options. They are functional replacements that meet basic requirements, making them suitable for owners on a tight budget.
Cost of Replacing Your Versa Note Radiator
| Part Type | Estimated Cost |
|---|---|
| New OEM | $275 - $650 |
| New Aftermarket | $140 - $345 |
| Shop Labor | $250 - $450 |
| Total Professional Job | $390 - $800+ |
Pro Tip: When replacing your radiator, it is highly recommended to also replace the radiator cap, upper and lower radiator hoses, and thermostat. These parts are inexpensive and wear out over time. Replacing them all at once prevents future leaks and saves you from having to do the job twice.
Frequently Asked Questions
Are there any recalls on the 2014-2019 Versa Note radiator?
No, as of early 2026, there are no specific recalls from Nissan or the NHTSA for the radiator on the 2014-2019 Nissan Versa Note.
Can I do this replacement myself?
Yes, this is a manageable job for a DIYer with basic tools and some mechanical experience. The process involves draining the coolant, removing the air intake and fan assembly, disconnecting hoses, and swapping the radiator. Expect it to take between 2.5 and 5 hours.
What kind of coolant should I use?
You must use a blue-colored, long-life Asian vehicle antifreeze. Using the wrong type of coolant can cause damage to the cooling system and engine. Always mix concentrated coolant with distilled water according to the instructions.
What is the most common mistake when ordering this part?
The most common and costly mistake is ordering a radiator for the wrong transmission type. An automatic (CVT) Versa Note requires a radiator with a built-in transmission fluid cooler, while a manual transmission model does not. They cannot be interchanged.
Helpful Videos
Technical Specifications
OEM Part Numbers: 21460-3VB3A 214101HS3A 214601HS3A 214601HS3B
Most radiators for this vehicle feature a plastic tank construction with an aluminum core. The core is typically a 1-row design. Radiators for automatic (CVT) models include an integrated concentric oil cooler for the transmission fluid.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
