Your 2014-2020 Nissan Pathfinder Engine Oil Pressure Switch: A Complete Guide
Is your oil light on? Here’s what to know about the oil pressure switch in your Pathfinder before you buy a new one.
- First, rule out low oil level. If the oil is full but the light is on, the switch is a likely culprit.
- A flickering light with engine noise is a critical issue; a flickering light with no noise often points to the sensor.
- Replacement is a simple, one-hour job for a DIYer, located behind the passenger-side wheel.
- Aftermarket brands like Beck Arnley offer near-OEM quality for less money, making them a smart choice for this repair.
Is Your Pathfinder's Oil Light On? Don't Panic Yet.
Seeing the red oil warning light flicker on your 2014-2020 Nissan Pathfinder's dashboard is alarming. While it can signal a serious problem like low oil level or a failing oil pump, it's often caused by a much simpler and cheaper part: a faulty engine oil pressure switch. This switch can fail over time, sending false signals to your dash. This guide will help you understand the symptoms, choose the right aftermarket replacement, and decide if this is a job you can tackle yourself.
First Things First: Check Your Oil!
Before you suspect any parts have failed, do the simple check first. Pull over safely, turn off the engine, wait a few minutes, and check the oil level using the dipstick. If the oil level is low, topping it off may solve the problem. If the level is fine, the issue could be the switch or, more seriously, the oil pump itself. If you hear any knocking or loud mechanical noises along with the oil light, stop the engine immediately and have the vehicle towed to a professional.
Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch on your Pathfinder will give you a few clear signs:
- Oil Warning Light Comes On: The most common symptom is the red oil pressure light on your dash illuminating, especially if you've confirmed the oil level is correct. It might flicker at idle and go away as you accelerate.
- Erratic or Incorrect Gauge Readings: If your Pathfinder has an oil pressure gauge, it might read zero, max out, or jump around randomly. A gauge that reads high as soon as you turn the key is a classic sign of a failed sensor. 🎬 Watch how a faulty sensor behaves on the dashboard gauge.
- Check Engine Light: Sometimes, a failing oil pressure sensor can trigger the Check Engine Light. A common trouble code associated with this is P0520 (Engine Oil Pressure Sensor/Switch Circuit).
- Visible Oil Leak: The switch itself can develop a leak. You might see oil seeping from the sensor body or its electrical connector.
Choosing the Right Aftermarket Part: OEM vs. Aftermarket
For a simple sensor like this, you don't always need to pay dealership prices for an OEM part. Aftermarket parts offer good value, but quality can vary. For the 2014-2020 Pathfinder, here’s a breakdown of common aftermarket brands.
Brand Tiers Explained
Tier 1: Beck Arnley. This brand is well-regarded for sourcing parts that meet or exceed OE specifications, often using the same manufacturers as Nissan. If you want as close to OEM quality as possible without the OEM price, Beck Arnley is a trusted choice for Japanese vehicles.
Tier 2: Standard Ignition (SMP). A major player in the aftermarket, Standard produces reliable parts and has its own manufacturing and quality control processes. While generally dependable, some users across various car forums have reported occasional premature failures, but it remains a solid mid-range option.
Tier 3: Global Parts. This brand typically represents the most budget-friendly option. While it may function correctly, there is less information available about its long-term reliability and manufacturing standards compared to the other tiers. It can be a viable choice if the budget is the primary concern.
How Much Does a New Oil Pressure Switch Cost?
The cost to replace the oil pressure switch on your Pathfinder is very reasonable, especially if you do it yourself. The part itself is not expensive, and labor is minimal for a professional.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Part | $110 - $150 |
| New Aftermarket Part | $73.15 - $124.99 |
| Shop Labor | $63 - $93 |
| Total Professional Replacement | $173 - $243 |
Frequently Asked Questions (FAQ)
Can I replace the Pathfinder's oil pressure switch myself?
Yes, this is a very DIY-friendly job for most home mechanics. The switch is located on the lower part of the engine on the passenger side. You'll need to safely jack up the vehicle, remove the front passenger wheel, and take off a small plastic splash shield to get access. The job requires basic tools, a 27mm or a specific oil pressure switch socket, and should take less than an hour.

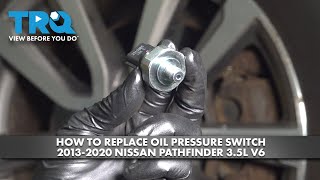

🎬 Watch this step-by-step guide to replacing the switch yourself.What does the code P0520 mean?
P0520 is a generic diagnostic trouble code (DTC) for "Engine Oil Pressure Sensor/Switch Circuit Malfunction." This means the engine's computer has detected a problem with the sensor or the circuit it's on. It could be a bad sensor, a wiring issue, or a poor connection. This code strongly points towards a sensor problem rather than a mechanical oil pressure issue.

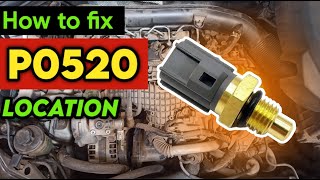

🎬 See a detailed breakdown of the P0520 diagnostic code.Is a flickering oil light always a bad sensor?
Not always. A flickering light can mean the sensor is failing, but it can also be a sign of a more serious problem. It could indicate that your oil pressure is right on the borderline of being too low, often caused by a worn oil pump or worn engine bearings. If the light appears and you notice any new engine noises, treat it as a serious mechanical issue and have your oil pressure professionally tested.
What happens if I ignore a bad oil pressure switch?
Ignoring a bad switch is risky. If the switch is faulty and causing a false warning, it's an annoyance. However, you lose your only warning system for actual low oil pressure. If a real oil pressure problem develops later, you won't be alerted, and you could end up with catastrophic engine failure that could cost thousands of dollars to repair. For the low cost of the part, it's not worth the risk.
Helpful Videos
Technical Specifications
OEM Part Numbers: 25070-CD000 25070-CD00A 25070-7DB0A 25070-1MC0A 25070-3JT0A 25070-5TA0A
The oil pressure switch for the 2014-2020 Pathfinder is a single-pin sensor that threads into the engine block. It requires a 27mm or specialized oil pressure switch socket for removal and installation, and should be torqued to 11 ft-lbs.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
