Ford Expedition Fuel Pump Driver Module: A Guide for 2014-2021 Models
If your Expedition is stalling, hesitating, or won't start, the fuel pump driver module could be the culprit.
- Symptoms of a bad FPDM include stalling, no-start, hesitation, and rough idle.
- Before buying, you MUST verify if your Expedition has an external module on the frame or one inside the fuel tank.
- Aftermarket Dorman OE FIX modules are an upgrade, designed with standoffs to prevent the corrosion that plagued the original part.
- For external modules, this is a very easy and fast DIY replacement, often taking less than 30 minutes.
Is Your Expedition Stalling or Not Starting?
A common issue for Ford Expedition owners is a sudden stall or a crank-no-start condition. While several parts could be to blame, the Fuel Pump Driver Module (FPDM) is a frequent cause. This is especially true for vehicles operated in regions where road salt is used, which can lead to corrosion of externally mounted modules. Symptoms often start with hesitation when accelerating or a rough idle before progressing to a complete no-start.
Important: Check Your Vehicle Before Buying
During the 2014-2021 model years, Ford changed the location of the Fuel Pump Driver Module. On some models, it is an external part bolted to the vehicle's frame, often near the spare tire. On other models, it is integrated into the fuel pump assembly inside the gas tank. These aftermarket parts are for vehicles with an EXTERNAL module. You must confirm your Expedition's specific setup before purchasing a replacement part.
Common Failure Symptoms
- Crank, No Start: The engine turns over but never fires up.
- Engine Stalling: The engine may die unexpectedly while driving or idling, sometimes becoming more frequent as the module heats up.
- Hesitation and Power Loss: The vehicle may stumble or lack power during acceleration as the module fails to command adequate fuel flow.
- Rough Idle: The engine may run poorly or sputter at a stop.
- Check Engine Light: A failed module can trigger a Check Engine Light with codes like P1233, indicating a loss of communication with the FPDM. 🎬 Watch: Diagnosing a P1233 code and no-start condition
Choosing the Right Aftermarket Part
When replacing a failed external FPDM, you have a choice between standard replacements and upgraded designs. The original Ford modules were often made of bare aluminum and mounted directly to the steel frame, leading to severe galvanic corrosion that would destroy the part.
Brand Tiers for Your Expedition:

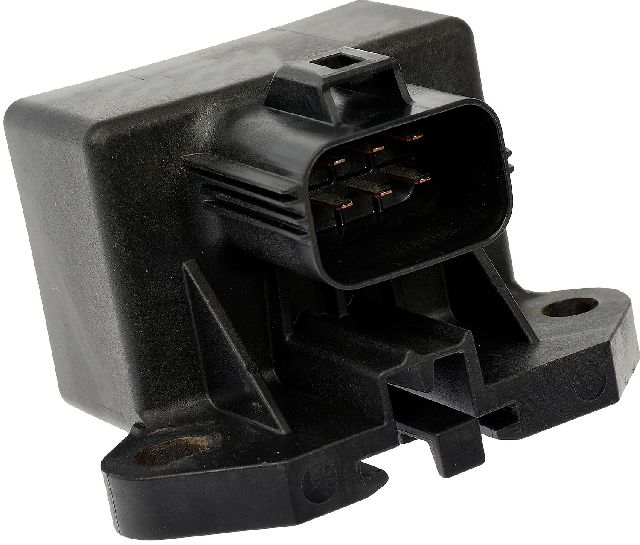

- Dorman (OE FIX): Dorman offers an "OE FIX" version that directly addresses the original design flaw. Their modules often feature a protective coating and, most importantly, come with rubber spacers or standoffs. These standoffs create a gap between the aluminum module and the steel frame, preventing the corrosion that causes failure. This is considered an upgrade over the original part. 🎬 See why these upgraded modules are more reliable replacements
- Standard Ignition: As a reputable manufacturer, Standard Ignition provides a quality replacement that meets original equipment specifications. It serves as a reliable direct-fit alternative if you are looking for a solid, dependable part.
Pro Tip: A Worthwhile Preventive Fix
Because the original external modules are so likely to fail from corrosion, many mechanics and owners recommend replacing the part proactively, especially on vehicles over five years old or those driven in the salt belt. The cost of the part is much less than a tow bill.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Dorman, Standard) | $85 - $99 |
| New OEM (Ford) | $160 - $220 |
| Shop Labor (for external module) | $75 - $150 |
Frequently Asked Questions
Can I replace the FPDM myself?
Yes, for externally mounted modules, this is a very DIY-friendly job. The module is typically located on a frame crossmember above the spare tire. The most time-consuming part of the job is often lowering the spare tire for access. The replacement itself usually involves just two bolts and one electrical connector, taking as little as 15-20 minutes.
🎬 Watch this step-by-step guide to replacing the external moduleWhy did my original module fail?
The most common reason for external module failure is corrosion. Ford's original design mounted the bare aluminum housing of the module directly against the vehicle's steel frame. When exposed to moisture and road salt, this combination of two different metals creates an electrical reaction (galvanic corrosion) that eats away at the aluminum, eventually exposing the internal electronics to the elements.
Is there a recall for the Fuel Pump Driver Module?
There are no specific, widespread recalls for the external FPDM on 2014-2021 Expeditions for this corrosion issue. There have been recalls for other fuel system components, like the high-pressure fuel pump on some 2018 models (NHTSA 18V392000) and the in-tank low-pressure pump on some 2022 models (NHTSA 25V455), but these do not cover the externally mounted driver module.
What happens if I buy this part but my module is in the tank?
If your vehicle's FPDM is integrated into the in-tank fuel pump assembly, this external module will not work. In that case, the entire fuel pump assembly must be replaced to fix the issue. This is why it is critical to visually inspect your vehicle for an external module before making a purchase.
Helpful Videos
Technical Specifications
OEM Part Numbers: HL3Z-9D370-A GA8Z-9D370-A 6L1Z-9D372-AD LC3Z-9D370-C
Controls voltage to the vehicle's electric fuel pump based on PCM input. Aftermarket versions are available for models with an externally mounted module.
