GMC Canyon Starter Motor Guide (2014-2021): Symptoms, Costs, and Replacement
Is your GMC Canyon failing to start? This guide covers the common causes and what to expect for a starter replacement.
- Starter replacement on the 3.6L V6 is a very difficult, labor-intensive job; the 4-cylinder is much easier.
- Symptoms include a single click, slow cranking, or grinding noises; rule out a weak battery first.
- Labor costs are the biggest expense for V6 models, often exceeding $700 due to the 5+ hour job time.
- ACDelco is the OEM-equivalent brand, offering a guaranteed fit and factory performance.
Is Your GMC Canyon Starter Failing?
A bad starter is a common issue that can leave your truck dead in the water. For 2014-2021 GMC Canyon owners, especially those with the 3.6L V6 engine, a starter replacement can be a surprisingly complex and expensive job. Before you buy a part, it's important to correctly diagnose the problem, as a weak battery can have similar symptoms.
Common Failure Symptoms
- Single Loud Click: You turn the key and hear one solid 'click', but the engine doesn't crank. This often points directly to a failed starter motor or solenoid.
- No Sound at All: If your battery is good and the dashboard lights come on, but you get no sound when trying to start, the starter could be the culprit.
- Slow, Labored Cranking: The engine turns over much slower than usual, as if the battery is dying. This can mean the starter is wearing out and drawing too much power.
- Grinding Noise: A harsh grinding sound during or after starting can indicate the starter gear is not engaging correctly with the flywheel or is failing to retract.
- Intermittent Starting: The truck starts fine one day but fails the next. This is a classic sign of a starter on its way out.
Pro Tip: Always check your battery first. A weak or dead battery is the most common cause of starting problems and often produces a rapid clicking sound, unlike the single click of a bad starter. Have your battery tested before deciding 🎬 See how to diagnose a single click no-start condition to replace the starter.

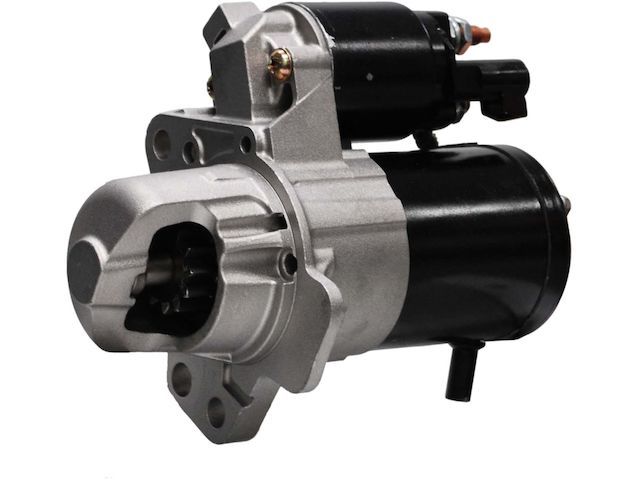

Choosing a New Aftermarket Starter
When replacing the starter, you have a choice between OEM and aftermarket parts. For this specific repair, quality and reliability are key, especially on V6 models where the labor is intensive.
- ACDelco: As the original equipment manufacturer for General Motors, ACDelco parts are designed to be a direct fit and perform to factory specifications. Choosing an ACDelco starter is the closest you can get to the original part that came with your truck. They are a trusted, reliable choice.
- MPA (Motor Parts of America): MPA is a large, well-known supplier of aftermarket starters. They offer a quality alternative to the OEM part, often at a more competitive price point. These parts are built to meet or exceed OEM specifications and are a solid choice for a cost-effective repair.
Known Issues and Bulletins
While no specific recalls exist for the 2014-2021 GMC Canyon starter motor, GM has issued Technical Service Bulletins (TSBs) for later models (24-NA-078) with similar engine designs for grinding noises caused by the starter hanging up. This indicates that starter-related issues are on GM's radar. The most significant issue for owners is the difficult replacement process on V6 models.
V6 vs. 4-Cylinder Replacement Warning
The starter replacement job differs dramatically between engines.

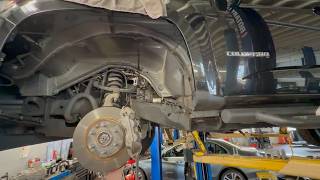

3.6L V6: The starter is located on the driver's side, tucked behind the motor mount. Replacement is a very involved and difficult job that requires lifting the engine and removing the motor mount for access. This is not recommended for a beginner DIY mechanic and has a high labor cost at shops. 🎬 Watch: Why this V6 starter replacement is not a DIY job
2.5L 4-Cylinder: The starter is located on the passenger side and is significantly easier to access and replace.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter | $121 - $274 |
| Shop Labor | $722 - $1,059 |
| Total Professional Installation | $843 - $1,333 |
Frequently Asked Questions
Can I drive my Canyon with a bad starter?
No. If the starter has failed completely, the engine will not crank, and the vehicle cannot be driven. If it is failing intermittently, you risk being stranded the next time you try to start the truck.
Can I jump-start a truck with a bad starter?
No. Jump-starting provides power to a weak battery. If the starter motor itself is broken, extra power from another vehicle won't make it work.
Why is the replacement so expensive for the V6 model?
The high cost is almost entirely due to labor. The starter is in a very difficult-to-reach location, requiring the mechanic to remove the driver-side motor mount and lift the engine to gain access. This process can take a professional 5 or more hours.
Is this a DIY job?
For the 2.5L 4-cylinder engine, it is a manageable DIY job for someone with basic tools. For the 3.6L V6 engine, it is considered a very difficult and advanced repair that is not recommended for most DIY mechanics due to the need to lift the engine.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12674768
12 Volt, Clockwise Rotation. Tooth count can vary by engine and year.
