A Land Rover Range Rover Owner's Guide to the CV Joint Boot Kit (2014-2021)
Don't let a simple torn boot lead to a costly axle replacement on your Range Rover.
- Check the inside of your front wheels for greasy splatter; this is the first sign of a torn CV boot.
- If you only have a torn boot but no noise, replace the boot kit immediately to save the expensive CV joint.
- If you hear clicking when turning, the joint is already damaged and the entire CV axle needs replacement.
- GKN Loebro is an OEM supplier to Land Rover, offering dealer-level quality at a lower price.
Symptoms of a Failing CV Boot
The first sign of a problem is usually not a noise, but a mess. A torn or split CV boot will fling grease as the axle spins. You'll often find dark, greasy splatter on the inside of your wheel, on the brake components, or along the suspension arms. If you see this, the boot has failed and needs immediate attention.
If the problem is ignored, the grease will continue to escape and dirt will get inside the joint. This is when you'll start to hear noises. A clicking or popping sound, especially when making tight turns at low speeds, is a classic sign of a worn and failing CV joint. Some owners also report a thumping or knocking sound from the front end during acceleration in a turn, which can point to a dry CV joint.
Choosing the Right Aftermarket CV Boot Kit
When it comes to drivetrain parts on a sophisticated vehicle like the Range Rover, quality is crucial. You need a part that fits perfectly and is made from durable materials that can withstand heat and constant flexing.
- OEM (Original Equipment Manufacturer): These are the parts you would get from a Land Rover dealership. They are guaranteed to fit and function correctly, but they come at a premium price. A genuine Land Rover boot kit can be significantly more expensive than an aftermarket alternative.
- Premium Aftermarket (GKN Loebro): For many European vehicles, including Land Rover, GKN is the original equipment manufacturer that supplies the parts to the automaker in the first place. Choosing a GKN Loebro boot kit often means you are getting the exact same part that came on your Range Rover from the factory, but without the dealership markup. Given their reputation for quality and OEM status, GKN is a trusted choice for this repair.
Pro Tip: Check for Recalls
While the wheel and suspension are being serviced, it's a good time to be aware of other potential issues. A notable safety recall (NHTSA 25V-514) was issued for 2014-2017 Range Rover models concerning potential cracks in the front suspension knuckle. This is a critical component that connects to the upper control arm. Ask your mechanic to inspect this area, or check with a dealer to see if your vehicle is affected and has been repaired.
Estimated Replacement Costs
The cost to replace a CV boot kit can vary based on local labor rates. The part itself is not expensive, but the labor to access it is where most of the cost lies. If the joint is already making noise, most shops will recommend replacing the entire CV axle, which is a much more expensive repair.
| Part / Service | Estimated Cost |
|---|---|
| New OEM CV Boot Kit (Part Only) | $150 - $220+ |
| New Aftermarket CV Boot Kit (Part Only) | $32 - $75 |
| Shop Labor (Independent Shop) | $240 - $525 |
| Total (Aftermarket Kit at Indy Shop) | $272 - $600 |
Warning: Clicking Means More Cost
If your CV joint is already clicking, simply replacing the boot and adding new grease is not enough. The noise indicates that internal damage has already occurred. At this point, you will likely need to replace the entire CV axle shaft 🎬 See this complete walkthrough for replacing the entire CV axle. to ensure a safe and lasting repair. A full CV joint replacement can cost between $1,095 and $1,363.
Frequently Asked Questions
Do I need to replace the whole axle or just the boot?
If you've caught the problem early (a torn boot with no noise), you can just replace the boot kit. This saves the joint from damage. If you hear any clicking, popping, or grinding noises when turning, the joint is already damaged and the entire CV axle assembly should be replaced for safety and reliability.
Is this a difficult DIY job?
Replacing a CV boot on a Range Rover is a moderately difficult job that requires proper tools, including a heavy-duty jack and stands, a 32mm hub nut socket, and potentially a ball joint separator or puller. It involves disassembling parts of the suspension. 🎬 Watch: How to remove the front axle on your Range Rover. While possible for an experienced home mechanic, many owners will prefer to have a professional shop perform the work.
🎬 Watch: Step-by-step guide to replacing a Range Rover CV boot.What happens if I don't replace a torn CV boot?
A torn boot will allow all the lubricating grease to escape and let in dirt, sand, and water. This contamination will quickly destroy the precision-machined surfaces inside the CV joint. The joint will fail, leading to the clicking noises, and if ignored long enough, it could break apart completely, leaving you stranded.
Should I replace boots on both sides at the same time?
The boots are made of the same material and have been exposed to the same conditions, so they tend to age at a similar rate. If one has failed due to age, it's wise to inspect the other side very carefully. If it shows signs of cracking or aging, replacing both at the same time can save you from having to do the same job again in the near future.
Helpful Videos
Technical Specifications
OEM Part Numbers: LR034533 LR034530

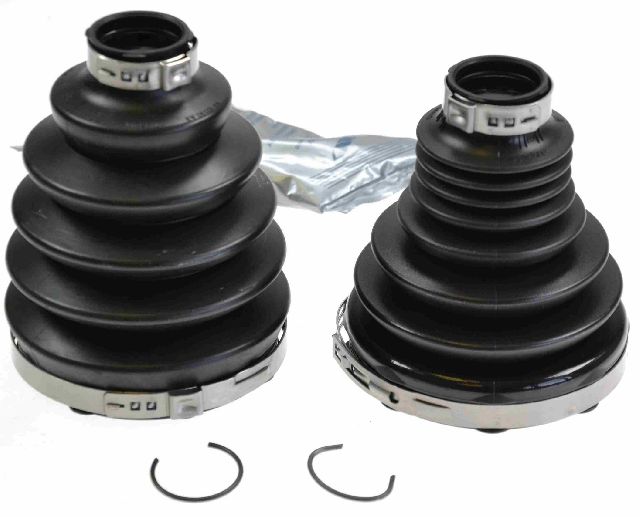

Kit typically includes one CV boot, two clamps, and a packet of specialized CV joint grease. Made from durable rubber or thermoplastic elastomer (TPE) to resist heat and debris.
