Chevrolet Express 2500 Vehicle Speed Sensor: A 2014-2022 Replacement Guide
Fix your van's erratic speedometer and harsh transmission shifting by understanding the vehicle speed sensor.
- Symptoms often appear as transmission problems (harsh shifting) or a faulty speedometer.
- For 2022-2023 models, check for the free TCM software recall (NHTSA 24V839000) before buying parts.
- This is an easy and inexpensive DIY replacement that can be done in under an hour.
- Aftermarket brands like Delphi, Standard Ignition, and Holstein offer reliable, cost-effective alternatives to OEM parts.
Is Your Express Van's Speedometer or Shifting Acting Up?
A failing vehicle speed sensor can cause some very noticeable and annoying problems. Because this single sensor provides data to multiple systems, its failure can look like a major transmission problem when it's often just a simple, inexpensive sensor fix. Recognizing the symptoms is the first step to getting your work van back on the road and running reliably.
Recall Alert for 2022-2023 Models
Before replacing any parts on a 2022 or 2023 Express van, be aware of GM recall N242471620 (NHTSA ID: 24V839000). Incorrect software in the Transmission Control Module (TCM) can cause symptoms like harsh shifting, reduced power, or unintended deceleration. These symptoms mimic a bad speed sensor. A GM dealer can update the software for free to fix this issue.
Common Symptoms of a Bad Vehicle Speed Sensor
- Erratic or Dead Speedometer: The speedometer needle may jump around randomly, read incorrectly, or not move at all.
- Harsh or Incorrect Shifting: Your transmission may shift hard, delay shifts, or refuse to shift into overdrive, causing the engine to rev high at highway speeds.
- Cruise Control Won't Engage: The cruise control system relies on a steady speed signal, so it will stop working if the sensor fails.
- Check Engine Light: A failing VSS will often trigger the check engine light and store trouble codes like P0500 or P0501. 🎬 Watch: 4 signs of a bad transmission speed sensor
- ABS Light: The Anti-lock Brake System (ABS) may also use this data, and a failure can sometimes trigger the ABS warning light.
Choosing the Right Aftermarket Part
When replacing the VSS, you don't have to go back to the dealer. Quality aftermarket brands offer reliable parts that meet or exceed original specifications. For this part, the available brands offer a clear choice between OEM-level quality and excellent value.
Brand Quality Tiers
- Top Tier (OEM Equivalent): Delphi is a well-known Original Equipment (OE) manufacturer for GM. Choosing a Delphi sensor means you are likely getting a part made to the exact same standards as the one your van came with from the factory. They are known for reliability and a perfect fit.
- Professional Grade: Standard Ignition (also known as Standard Motor Products or SMP) is a highly respected brand used by professional mechanics for decades. They are known for extensive testing and quality control, making them a very reliable choice for a long-lasting repair.
- Quality Value: Holstein offers a strong balance of quality and affordability. They use high-quality materials and back their sensors with a 3-year/36,000-mile warranty, which is excellent for an aftermarket part. Reviews often point to Holstein as a great value alternative to more expensive options.
Pro Tip: Check Your Build Date
GM issued a Technical Service Bulletin (TSB 17-NA-147) that indicates a part change for the output speed sensor. Vehicles built before March 2, 2017, may use a different part number than vehicles built after that date. Always verify the part fits your specific vehicle, but be aware of this mid-generation change.
Cost of Replacing the Vehicle Speed Sensor
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $50 - $57 |
| New OEM Sensor | $100 - $150 |
| Shop Labor | $75 - $150 |
| Total (DIY) | $50 - $57 |
| Total (Shop Installed) | $125 - $207 |
Frequently Asked Questions
Where is the vehicle speed sensor located on the Express 2500?
The vehicle speed sensor (or output speed sensor) is located on the driver's side of the transmission, toward the rear where the driveshaft connects. It is held in by a single bolt and has an electrical connector attached.
Can I replace the VSS myself?
Yes, this is a great DIY job for beginners. You will need basic hand tools, including a wrench or socket set. The job involves safely raising the vehicle, unplugging the electrical connector, removing one bolt, and swapping the old sensor for the new one. The entire process usually takes less than an hour.

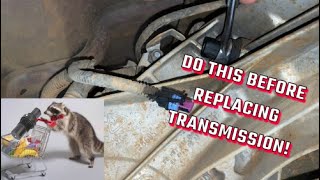

🎬 Watch: Step-by-step 4L80E speed sensor replacement walkthroughCan I drive with a bad speed sensor?
You can, but it is not recommended for long. Your van may have unpredictable and harsh shifting, which is not safe and can put extra strain on your transmission. You also won't have a working speedometer or cruise control. It is best to get it replaced as soon as possible.
What's the difference between an input and output speed sensor? 🎬 See this guide on speed sensors and external wiring
Your transmission has both. The input sensor measures how fast the engine is turning the transmission's input shaft, while the output sensor measures how fast the output shaft is spinning to the wheels. The computer compares these two signals to control shifting. The output sensor is the one that provides the signal for the speedometer.
Helpful Videos
Technical Specifications
OEM Part Numbers: 24278522 24265535 24289782 24292335 24279771
The primary Vehicle Speed Sensor function is served by the Automatic Transmission Output Speed Sensor, typically located on the driver's side of the transmission housing. It is a magnetic sensor that generates a signal based on the rotation of a reluctor wheel on the transmission output shaft.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
