Chevrolet Camaro Engine Oil Pan Replacement Guide (2014-2023)
Seeing oil spots under your Camaro? This guide covers the common causes and replacement options for your engine oil pan.
- Before any repair, check if the oil pan bolts are loose and can be tightened, as this is a very common and cheap fix.
- Replacement is extremely labor-intensive and expensive, as the engine must be lifted or the subframe dropped.
- Certain 2016 SS models had a service campaign for loose oil pickup tube bolts, which could cause engine failure.
- Aftermarket pans from brands like Dorman and Spectra are cost-effective, reliable choices for fixing leaks on daily drivers.
Is Your Camaro's Oil Pan Failing?
Oil pan failures on the 2014-2023 Chevrolet Camaro are almost always about leaks, not catastrophic cracks. While a direct impact from road debris can certainly crack the cast aluminum pan, the more common issues are simpler (and sometimes cheaper) to fix.
CHECK THIS FIRST: Loose Oil Pan Bolts
Before you spend a dime on parts or diagnostics, check the oil pan bolts. A widespread issue reported by many Camaro owners is that these bolts can loosen over time from the factory. Simply tightening the bolts to the proper torque specification can often stop a small leak. This should be the very first thing you or your mechanic checks.
Symptoms of a Leaking Oil Pan
- Oil Puddles: The most obvious sign is a puddle of dark brown or black oil on the ground under the front of your car.
- Low Oil Warning Light: If the leak is significant, your dashboard may show a low oil level or low oil pressure warning. This is a serious condition that requires immediate attention to prevent engine damage.
- Burning Oil Smell: Oil dripping onto the hot exhaust pipes will create a sharp, unpleasant burning smell.
- Visible Oil on the Pan: The bottom of the oil pan and nearby components will be coated 🎬 Watch: How to identify and confirm an oil pan leak. in a layer of oily grime.
Known Issues, TSBs, and Recalls
While there are no widespread formal recalls for the oil pan across all 2014-2023 models, there was a notable service campaign for certain 2016 Camaro SS models with the 6.2L LT1 V8 engine. This program (GM #N162039770) addressed a condition where the oil pickup tube bolts could loosen, potentially causing the tube to separate from the oil pump and lead to oil starvation. The fix involved dealers inspecting the pan and replacing the bolts or the entire oil pan if necessary.
Choosing the Right Aftermarket Oil Pan
If you've confirmed your pan is cracked or the leak persists after tightening the bolts, a replacement is necessary. For most owners, an aftermarket pan is a smart, cost-effective choice.

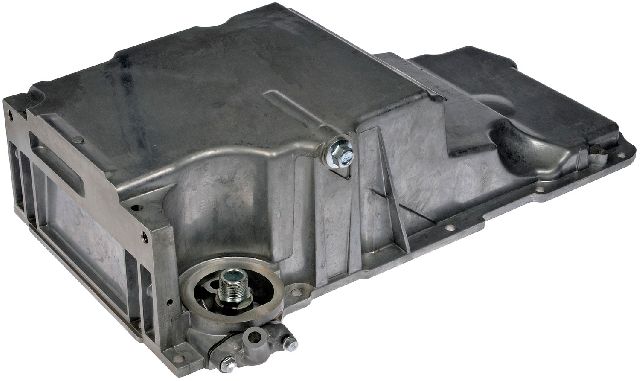

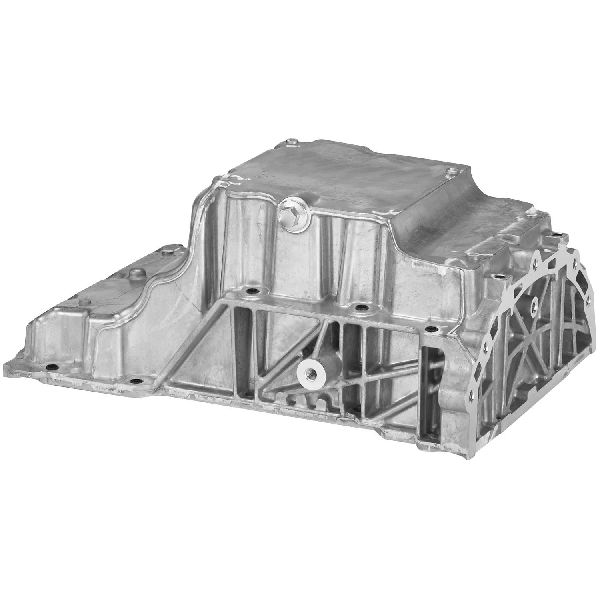

- OEM-Equivalent Brands (Dorman, Spectra): Brands like Dorman and Spectra specialize in producing parts that are direct replacements for the factory original. They are designed to fit and function just like the OEM part but at a lower cost. These are not high-performance upgrades, but they are a reliable and affordable solution for fixing a leak on a daily driven Camaro.
- Material: Most Camaro oil pans are cast aluminum. Aftermarket replacements from these brands will typically match the original material and design.
- Fitment is Key: The Camaro was available with several different engines (Turbo 4-cylinder, V6, V8) across these years. The oil pans are NOT interchangeable. Always confirm the part fits your exact year and engine model before purchasing.
Pro Tip: Gasket vs. Sealant
Many modern engines, including those in the Camaro, use RTV (Room Temperature Vulcanizing) sealant instead of a traditional pre-made gasket to seal the oil pan to the engine block. When replacing the pan, it is absolutely critical to also replace the gasket or apply new, high-quality RTV sealant. Never reuse an old gasket or sealant.
Cost to Replace a Camaro Engine Oil Pan
Be prepared: the majority of the cost for this repair is in the labor, not the part itself. Replacing the oil pan on a Camaro is a very difficult and time-consuming job. The front subframe must be lowered or the engine must be lifted to get the pan out. This is not a simple driveway repair for most people.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $45 - $585 |
| New OEM Oil Pan | $180 - $300 |
| Shop Labor | $1,300 - $2,000+ |
| Total Estimated Cost | $1,400 - $2,300+ |
Frequently Asked Questions
Why is it so expensive to replace the oil pan on a Camaro?
The high cost is due to the labor involved. To access and remove the oil pan, a mechanic must either lift the engine or drop the entire front subframe assembly. This process can take anywhere from 8 to 11 hours, making labor the biggest part 🎬 See a Camaro owner's real-world diagnosis and repair cost breakdown. of the bill.
Can I replace the oil pan myself?
For most DIY mechanics, this is not a recommended job. It requires an engine hoist or the ability to safely support the engine while dropping the subframe. It is a complex procedure with many steps. 🎬 Watch: A walkthrough of removing the oil pan with the engine in. If you just have a small leak, first try checking if the pan bolts are loose, which is a much easier DIY task.
Is an aftermarket oil pan from Dorman or Spectra as good as the original?
For the purpose of sealing a leak on a daily driver, yes. These brands provide a cost-effective alternative that meets original equipment specifications. While a dedicated track car might benefit from a specialized high-performance pan, a standard aftermarket replacement is perfectly suitable for most Camaro owners.
Do I have to replace the gasket or sealant when I replace the pan?
Yes, absolutely. Never reuse the old gasket or sealant. A new seal is critical to prevent leaks. The cost of the gasket or RTV sealant is very small compared to the labor, so skipping this step is a costly mistake.
Helpful Videos
Technical Specifications
Material: Cast Aluminum. Seal: Typically uses RTV sealant, not a separate pre-formed gasket.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
