Nissan Pathfinder ABS Wheel Speed Sensor Guide for 2014-2023 Models
Seeing ABS, 4WD, and traction control lights on your Pathfinder's dash? A faulty wheel speed sensor is a likely cause.
- An illuminated ABS light often brings the VDC/Traction Control and 4WD error lights with it.
- Use an ABS-capable OBD2 scanner to identify which specific wheel sensor has failed before buying parts.
- Be aware of the separate ABS actuator recall for 2017-2019 models, which causes the same warning light.
- Prepare for the possibility of the old sensor being seized by rust; have rust penetrant and pry tools ready.

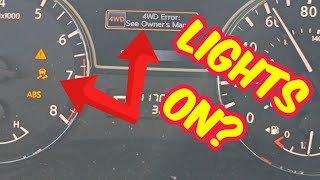

Is Your Pathfinder's Dashboard Lit Up Like a Christmas Tree?
If the ABS, VDC/SLIP, and sometimes even the 4WD error lights are on, a common culprit is a failing ABS wheel speed sensor. This sensor provides essential speed data for several systems, and when it fails, those systems are disabled as a safety precaution. While your normal brakes should still work, you will not have the benefit of anti-lock braking, traction control, or stability control until the issue is fixed.
Important: Check for ABS Actuator Recalls
Nissan issued a major safety recall for the ABS actuator pump on 2017-2019 Pathfinders (and other models). This is NOT the wheel speed sensor. The actuator can leak brake fluid onto an internal circuit board, which can cause the ABS light to turn on and, in rare cases, lead to a fire. If you own a vehicle in this year range and your ABS light is on, contact a Nissan dealer to see if your vehicle is part of this recall campaign (NHTSA ID: 18V-601, R1916) before replacing any parts.
Symptoms of a Bad ABS Wheel Speed Sensor
A bad sensor sends incorrect data or no data at all. This confuses the vehicle's computer and triggers several warnings.
- ABS Light On: The most common sign of a problem in the anti-lock braking system.
- Traction Control (VDC/SLIP) Light On: The traction and stability systems rely on wheel speed data, so they shut down when a sensor fails.
- 4WD Error Message: On 4WD Pathfinders, a bad sensor can prevent you from shifting into four-wheel drive.
- Brake Pedal Pulsing: The ABS may activate incorrectly at low speeds, causing the pedal to pulse when it shouldn't.
- Longer Stopping Distance: With the ABS disabled, your wheels can lock up during a hard brake, increasing the distance it takes to stop.
Choosing the Right Aftermarket Sensor
For a part like an ABS sensor, you don't always need to pay the high price for an OEM part. Quality aftermarket brands offer a reliable alternative for your Pathfinder.
OEM (Original Equipment Manufacturer): This is the exact part Nissan installed at the factory. It guarantees perfect fit and function but comes at the highest cost, often over $175 per sensor. If you want zero guesswork, this is your choice.

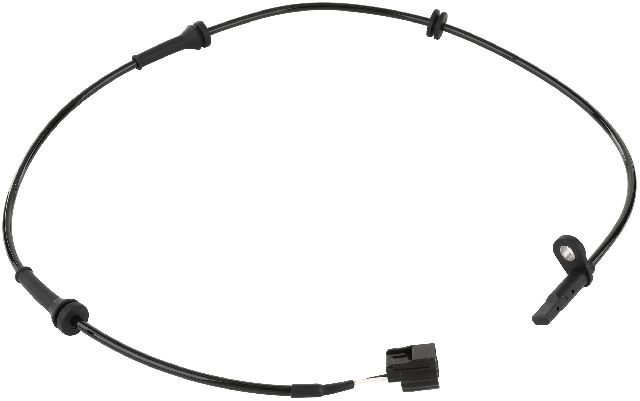

Premium Aftermarket (e.g., Delphi): Brands like Delphi are known for making high-quality parts that often meet or exceed OEM specifications. They are a trusted choice for sensors and electronics, providing OEM-level performance at a lower price point. User reviews often favor Delphi for its reliability.
Quality Aftermarket (e.g., Holstein): Brands like Holstein offer a great balance of value and quality. They are a dependable replacement for the original sensor and often come with new mounting hardware, which is a helpful addition. For many Pathfinder owners, this tier provides a perfectly reliable repair without the high cost of premium brands or OEM.
| Part Type | Estimated Part Cost |
|---|---|
| New OEM | $175 - $260 |
| New Aftermarket (Delphi, Holstein) | $79.26 - $112.64 |
| Shop Labor | $100 - $200 |
Pro Tip: Prepare for a Seized Sensor
Replacing the sensor involves removing a single 10mm bolt. However, due to its location, the sensor often gets seized in the wheel hub from rust and corrosion. Be prepared with rust penetrant, a pry bar, and possibly a hammer and small chisel. In severe cases, the old sensor may break during removal and need to be carefully drilled out.
🎬 Watch: How to remove a stuck or broken ABS sensorFrequently Asked Questions (FAQ)
Which wheel sensor is bad?
You cannot know which sensor is bad without a proper diagnostic tool. You need an OBD2 scanner that can read ABS-specific codes (e.g., C1107, C1108). The code will tell you exactly which wheel sensor has failed. 🎬 Watch: Diagnosing ABS and 4WD error codes with a scanner Most auto parts stores can scan this for you, or a mechanic can diagnose it quickly.
Can I replace just one sensor?
Yes. You only need to replace the sensor that has failed. The sensors operate independently, so there is no need to replace them in pairs.
Is it hard to replace an ABS sensor on a Pathfinder?
The job can be easy or hard. If the sensor is not seized, it's a simple DIY task that takes less than an hour. If the sensor is rusted in place, it can become very difficult and time-consuming to remove without breaking it. Watching a tutorial video for the 2013-2020 Pathfinder can give you 🎬 See this step-by-step wheel speed sensor replacement walkthrough a good idea of the process.
Do I need to reset the computer after replacing the sensor?
After replacing the sensor, the ABS light may turn off on its own after driving a short distance. However, the proper way to complete the job is to use an OBD2 scanner to clear the stored fault codes from the ABS module.
Helpful Videos
Technical Specifications
OEM Part Numbers: 47910-3JA0B 47910-3JA0A

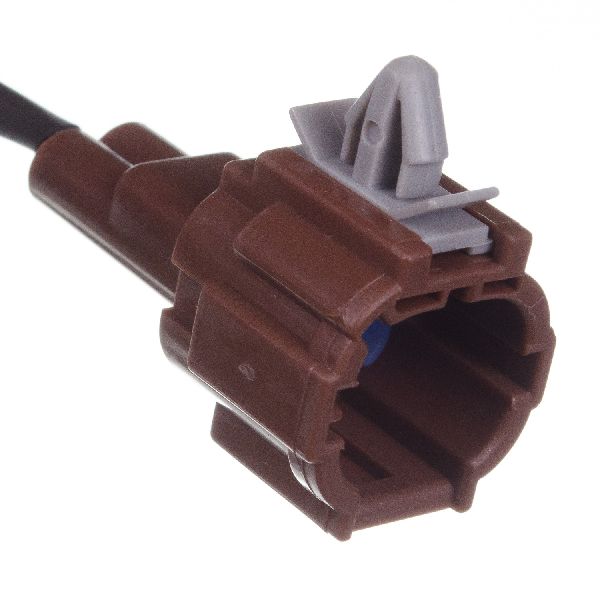

This is a Hall effect magnetic sensor that reads the rotational speed from a tone ring located on the wheel hub or axle. It connects to the main wiring harness via a single weatherproof connector.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
