Nissan Versa Ignition Coil Guide for 2014-2024 Models
Keep your Versa running smoothly by understanding when and how to replace a failing ignition coil.
- A bad coil on a Versa often triggers misfire codes (P0301-P0304).
- Accessing the coils requires removing the intake manifold, so consider replacing all four coils and the spark plugs at the same time.
- Hitachi is a known OEM supplier for Nissan; premium aftermarket brands like NGK and Delphi are also excellent choices.
- Continuing to drive with a bad coil can lead to costly catalytic converter damage.
Is Your Versa's Ignition Coil Failing?
A bad ignition coil on a Nissan Versa will almost always make itself known through poor engine performance. Because each cylinder has its own coil, the failure of one can make the engine feel unbalanced and weak. The check engine light is often the first sign, but you may notice other symptoms first.
Diagnosing the Problem
If your check engine light is on, the first step is to read the diagnostic trouble codes (DTCs) with an OBD-II scanner. Codes P0300 (random misfire) or P0301, P0302, P0303, and P0304 point to a misfire in a specific cylinder (1, 2, 3, or 4, respectively). A common diagnostic trick is to swap the suspected bad coil with a coil from a different cylinder. For example, if you have a P0302 code (Cylinder 2 misfire), swap the coil from cylinder 2 with the one from cylinder 3. Clear the codes and drive the car. If the code returns as P0303, you've confirmed the ignition coil is the faulty part.
🎬 Watch a diagnostic walkthrough for identifying a faulty Versa coil.Choosing the Right Aftermarket Ignition Coil
When replacing an ignition coil, you have a choice between original equipment (OEM) and various aftermarket brands. For the Nissan Versa, the original coils are often made by Hitachi.
| Brand Tier | Brands | Quality & Performance |
|---|---|---|

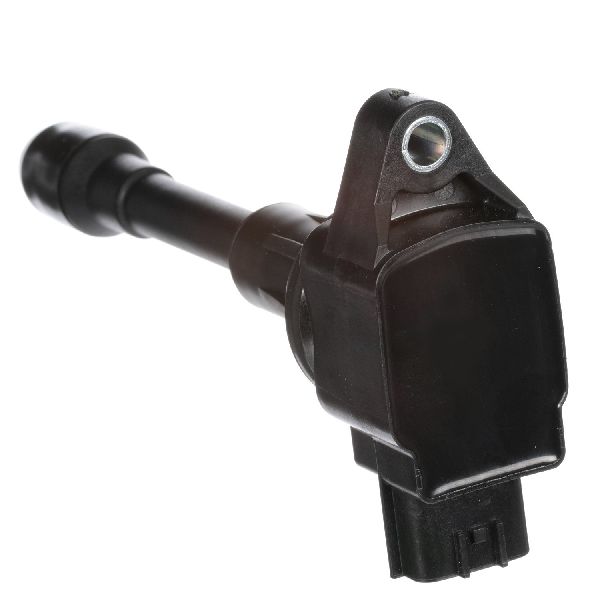

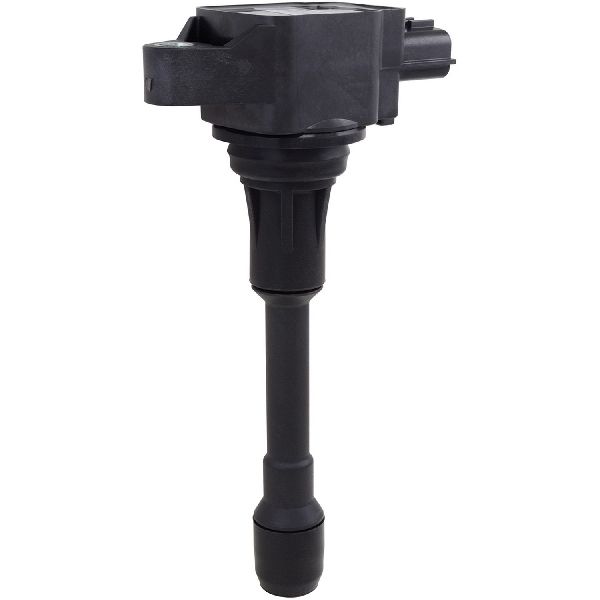

| OEM / Premium Aftermarket | Hitachi, NGK, Delphi, Denso | These brands are often original equipment suppliers or produce parts that meet or exceed OE standards. They offer the best reliability and longevity, making them a top choice for a direct replacement. Hitachi is a known OEM supplier for Nissan. |

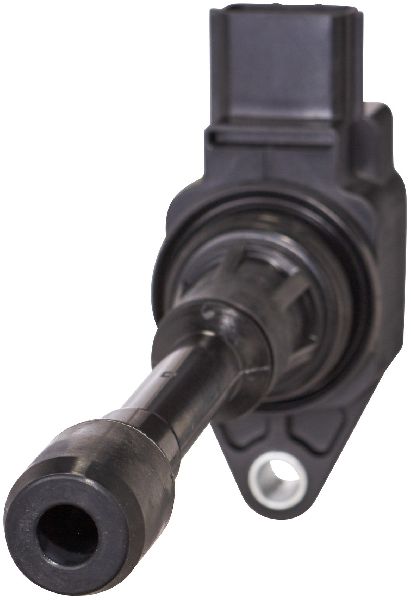

| Quality Aftermarket | Standard Ignition, Spectra, Walker Products | These are reputable brands that offer a good balance of quality and price. They are a solid choice for most repairs and are engineered to be reliable replacements. |

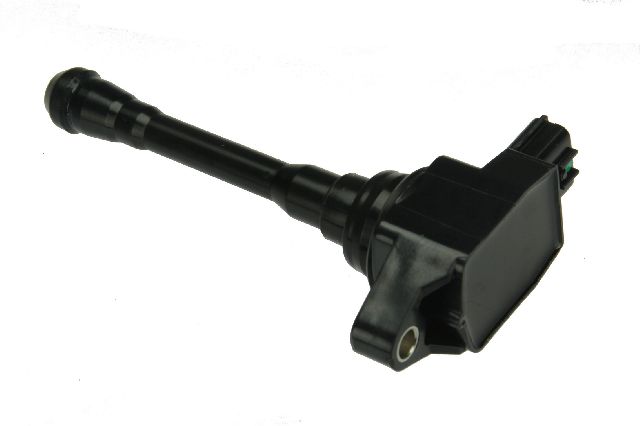

| Economy / Budget | DriveWire, Skyward, Global Parts, URO Parts | These brands provide a low-cost alternative. While they can get your car back on the road, some owner experiences suggest they may not have the same durability as premium brands, potentially leading to another replacement sooner. |
Known Issues, Recalls, and TSBs
Searches for the 2014-2024 Nissan Versa did not reveal any widespread recalls or Technical Service Bulletins (TSBs) specifically for ignition coil failure. However, there were recalls for the ignition switch on some 2014, 2017, and 2018 models, which could cause the engine to shut off while driving. This is a separate part from the ignition coils. Always check for open recalls on your specific vehicle using its VIN.
How-To: Replacing a Nissan Versa Ignition Coil
Replacing the ignition coils on a 1.6L Nissan Versa is a straightforward job that most DIYers can handle. However, accessing the coils requires removing the plastic intake manifold that sits on top of the engine.
- Disconnect the Battery: Always disconnect the negative battery terminal first.
- Remove the Intake Manifold: Disconnect several hoses and electrical connectors, then unbolt the plastic intake manifold to gain access to the coils below. It's highly recommended to replace the intake manifold gasket at the same time to prevent vacuum leaks. 🎬 See how to remove the intake manifold and replace coils.
- Replace the Coil(s): Each coil is held down by a single 10mm bolt. Disconnect the electrical connector, remove the bolt, and pull the old coil straight out.
- Install the New Coil: A small amount of dielectric grease inside the new coil's boot can make future removal easier and ensures a good seal. Seat the new coil firmly onto the spark plug, reinstall the bolt, and reconnect the electrical connector.
- Reassemble: Reinstall the intake manifold (with a new gasket), reconnect all hoses and sensors, and finally, reconnect the battery.
Pro Tip: While you have the coils out, it's a great time to inspect and replace your spark plugs if they are due. Using the correct iridium plugs is recommended for longevity.
🎬 Learn how to inspect coils while replacing your spark plugs.Frequently Asked Questions
Should I replace all four ignition coils at once?
While not strictly necessary, it is often recommended. Ignition coils are all the same age and operate under the same conditions. If one has failed, others may soon follow. Replacing them all at once can save you from repeating the labor of removing the intake manifold in the near future.
Can a bad ignition coil damage other parts?
Yes. Driving with a misfiring cylinder can allow unburned fuel to enter the exhaust system, which can overheat and damage the catalytic converter—a much more expensive repair.
What tools do I need to replace the coils?
You will need a basic socket set with 8mm and 10mm sockets, extensions, a ratchet, and possibly pliers for hose clamps. A torque wrench is recommended for reinstalling the intake manifold bolts to the correct specification.
Is an OEM coil better than an aftermarket one for my Versa?
An OEM coil (often Hitachi) is a guaranteed fit with proven durability. However, premium aftermarket brands like NGK and Delphi offer comparable quality, often at a better price. For daily driving, a quality aftermarket coil is a perfectly reliable choice. Budget-friendly coils are available but may have a shorter lifespan.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22448-5RB0A 22448-1HC0A
Coil-on-Plug (COP), 4 required for 1.6L HR16DE engine.
