Ram ProMaster 1500 Engine Camshaft Position Sensor: A Comprehensive Guide
Understanding the signs of failure and how to choose the right replacement for your 2014-2024 ProMaster van.
- Your ProMaster's 3.6L engine has two camshaft position sensors; the rear one (Bank 1) is very difficult to access.
- Symptoms include a check engine light (codes P0340, P0344, etc.), no-start or long crank times, stalling, and poor performance.
- For critical sensors, choosing a premium aftermarket brand like Delphi, NTK, or Hitachi is a reliable alternative to more expensive OEM parts.
- A TSB (18-054-14) exists for 2014 models with long crank times, which may require replacing the Bank 1 sensor.
Understanding Camshaft Position Sensor Failure in Your ProMaster
The camshaft position sensor is vital for the smooth operation of your ProMaster's 3.6L Pentastar engine. When one of these sensors starts to fail, it sends incorrect or inconsistent data to the engine's computer, which can cause a range of problems from annoying to severe. It's important to recognize the symptoms early to avoid getting stranded or causing further engine issues.
Key Symptoms of a Failing Sensor
A bad camshaft position sensor can mimic other engine problems, but there are several common signs to watch for. The most obvious is the Check Engine Light. If the light is on, getting the diagnostic trouble codes (DTCs) read is the first step. Codes like P0340, P0344, P0365, and P0369 often point directly to a camshaft sensor issue.
- Difficulty Starting or No-Start: The engine may crank for a long time before starting, or it might not start at all. This happens because the computer doesn't have the correct camshaft position to initiate fuel and spark.
- Poor Engine Performance: You might notice your van struggling to accelerate, sputtering, or running rough. Stalling, especially when the engine is warm, is another common complaint.
- Reduced Fuel Economy: When the sensor provides bad data, the engine's computer can't time fuel injection properly, often leading to increased fuel consumption.
A Note on the 3.6L Pentastar Engine
The 3.6L V6 in your ProMaster has two cylinder banks. Bank 1 is the rear bank, close to the firewall, and Bank 2 is the front bank, which is easier to access. Each bank has one camshaft position sensor that reads both the intake and exhaust camshafts for that bank. Replacing the sensor on Bank 1 is significantly more difficult due to its tight location.
Choosing the Right Aftermarket Camshaft Position Sensor
When it comes to critical engine sensors, quality matters. While an OEM Mopar sensor is always an option, several reputable aftermarket brands offer reliable performance, often at a better price. For a part like this, it's generally wise to avoid the cheapest options, as failure can leave you stranded. Forum discussions among Chrysler/Dodge/Jeep owners often recommend sticking with OEM or high-quality OEM-equivalent brands for critical sensors.
Brand Quality Tiers

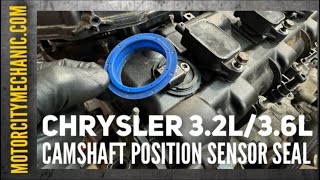

- Premium Aftermarket (OEM-Equivalent): Brands like Delphi, Hitachi, and NGK (NTK) often manufacture the original parts for automakers. Choosing one of these brands is the closest you can get to OEM quality, ensuring excellent fit, performance, and longevity. 🎬 Quick Tip: Don't forget to check the sensor seal during installation. They are highly recommended for this critical part.
- Quality Aftermarket: Brands like Standard Ignition (SMP) and Walker Products have a long-standing reputation for producing reliable parts that meet or exceed OE specifications. They offer a good balance of quality and value.
- Budget-Friendly: Brands like Dorman, Crown Automotive, and others offer a more affordable solution. While Dorman can sometimes offer innovative fixes, quality can be inconsistent for electronic parts. These may be suitable for a quick fix, but for long-term reliability, a higher-tier brand is often a better investment.
Pro Tip: Consider Replacing in Pairs or Sets
Since the 3.6L engine uses two identical sensors, and they are exposed to the same conditions, it's often a good idea to replace both at the same time, especially if your van has higher mileage. This is particularly true if you are paying for labor to access the difficult-to-reach rear sensor. Some retailers sell them in multi-packs for this reason.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
While there are no specific recalls for the camshaft position sensor itself on the 2014-2024 ProMaster, several TSBs have been issued for related issues on vehicles with the 3.6L Pentastar engine.
- TSB 18-054-14: This bulletin addresses an intermittent extended crank or long start time on some 2014 ProMaster models. It involves inspecting the serial number on the Bank 1 (rear) camshaft position sensor and replacing it if it falls within a specific batch.
- TSB #05149141A: This TSB from 2015 requested that technicians contact engineering before replacing camshaft position sensors for a range of fault codes (P0340, P0344, P0365, P0369, etc.) to gather more data on the issue.
- Mechanical vs. Electrical: Sometimes, camshaft sensor codes are not caused by a bad sensor but by a mechanical issue within the engine, such as a problem with the camshaft phaser. This can cause the sensor's signal to be erratic, triggering a fault code.
No widespread safety recalls directly targeting the camshaft position sensor were found via NHTSA searches.
Cost of Replacement
The cost to replace a camshaft position sensor can vary widely based on which sensor needs replacing and who does the work.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $32 - $389 (Price varies by brand and whether you buy a single sensor or a set) |
| Shop Labor | $238 - $350 (This can be higher if the difficult-to-access rear sensor is being replaced) |
| Total Professional Replacement | $357 - $468+ |
Frequently Asked Questions (FAQ)
How many camshaft position sensors does my ProMaster 1500 have?
If you have the 3.6L Pentastar V6 engine, your vehicle has two camshaft position sensors. One is located on the front cylinder bank (Bank 2) and the other is on the rear cylinder bank (Bank 1). Each sensor reads two camshafts.
Can I replace the camshaft position sensor myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical skill, especially for the front sensor (Bank 2). It is located on top of the valve cover on the driver's side of the engine. 🎬 Watch: See exactly where to find the sensors on your engine. The rear sensor (Bank 1) is much more difficult to access against the firewall and may require removing other components like the upper intake manifold.
What are the most common fault codes for a bad sensor?
The most common Diagnostic Trouble Codes (DTCs) are P0340/P0344 (related to the Bank 1 sensor) and P0365/P0369/P0390/P0394 (related to the Bank 2 sensor). An intermittent code (like P0344) means the signal from the sensor is cutting out sporadically.
Is it safe to drive with a bad camshaft position sensor?
It is not recommended. While the vehicle may still run, it could stall unexpectedly at any time, which is a significant safety risk. Driving with a bad sensor can also lead to poor fuel economy and potentially cause other engine issues over time.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5149141AF 05149141AF 5184101AG 05184101AH
The 3.6L Pentastar V6 uses two 4-wire, Hall-effect dual-reading sensors, one for each cylinder bank. Each sensor monitors the position of both the intake and exhaust camshafts for its respective bank.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
