Ram ProMaster 3500 (2014-2024) Engine Camshaft Position Sensor: A Complete Guide
Experiencing stalling, a rough idle, or starting problems with your ProMaster 3500? A faulty camshaft position sensor could be the culprit.
- A failing camshaft sensor on a ProMaster 3500 commonly causes stalling, no-start conditions, and a rough idle.
- The 3.6L Pentastar V6 engine, found in most of these vans, has two camshaft position sensors; one is easy to access, but the other requires removing the intake manifold.
- While value-priced aftermarket sensors are available, the difficult labor for the front sensor makes a high-quality OEM or premium aftermarket part a wise investment.
- Diagnostic trouble codes like P0340 and P0344 are clear indicators of a camshaft position sensor circuit failure.
Understanding the Camshaft Position Sensor in Your ProMaster
If your work van suddenly stalls, struggles to start, or the check engine light comes on, a failing camshaft position sensor is a likely suspect. This small but vital sensor provides the engine's computer with the information it needs to time everything correctly. When it starts to fail, the signal can become intermittent or stop altogether, confusing the computer and causing noticeable engine problems. Given the heavy use these commercial vans often see, sensor failure due to heat and oil contamination is not uncommon.
Symptoms of a Failing Camshaft Position Sensor
A bad camshaft sensor will almost always trigger the Check Engine Light, but you'll likely notice other performance issues first. Here’s what to watch for:
- Check Engine Light: A diagnostic scan will likely show codes like P0340, P0344, P0365, or P0369, which point directly to a fault in the camshaft position sensor circuit. 🎬 Watch: Understanding common causes for the P0340 diagnostic code.
- Engine Stalling: The engine may stall unexpectedly while driving or when coming to a stop. This is a serious safety concern.
- Hard Starting or No Start: The engine may crank for a long time before starting, or it may not start at all. This happens because the computer doesn't know when to fire the fuel injectors and spark plugs.
- Rough Idle and Poor Performance: You might feel a rough or erratic idle, engine stumbling, and a general lack of power or hesitation when you accelerate.
How Many Sensors Does My ProMaster Have?
Most 2014-2024 Ram ProMaster 3500 vans are equipped with the 3.6L Pentastar V6 engine, which has two (2) camshaft position sensors. They are located on the top of the valve covers at the driver's side of the engine. 🎬 See this video to locate the sensors on your engine. The front sensor is under the intake manifold, making it much harder to access than the rear one. Some earlier models (2014-2017) were available with a 3.0L EcoDiesel engine, which has one sensor. Always verify your engine type before ordering.
Choosing the Right Aftermarket Part
When replacing this sensor, you have a choice between OEM (Mopar) and a wide range of aftermarket brands. For a critical part like this, reliability is key.
- Premium Aftermarket (e.g., Delphi, Hitachi, NGK/NTK, Standard Ignition): These brands often have a strong reputation for quality, sometimes even being the original equipment manufacturer for various automakers. They are engineered to meet or exceed OEM specifications and are a reliable choice for your work van.

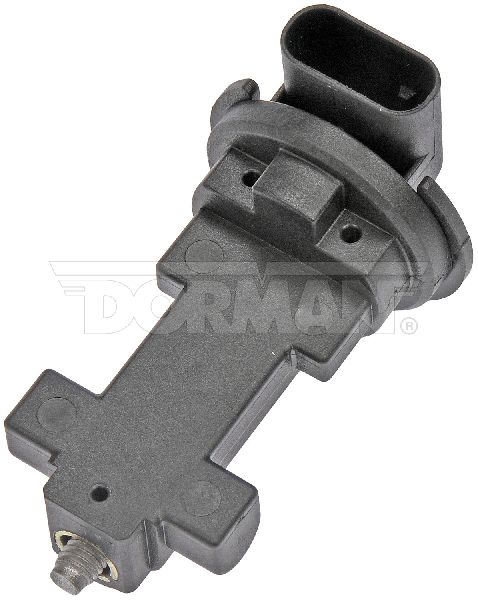

- Standard Aftermarket (e.g., Dorman, Walker Products, Holstein): These brands offer a good balance of quality and value. Dorman is known for providing direct-fit replacements with features designed to match the original part's function and durability.
- Value Options (e.g., Crown, Encore, Global Parts, True Tech): These brands provide a more budget-friendly solution. While they can get your van back on the road, long-term durability might be a consideration compared to premium or OEM parts.
OEM vs. Aftermarket: While Mopar is the original part, many owners find success with premium aftermarket brands like NTK or Delphi. Given the labor involved, especially for the front sensor on the 3.6L engine, choosing a quality, reliable part from the start is often the most cost-effective decision to avoid a repeat repair.
Cost of Replacing a Ram ProMaster 3500 Camshaft Position Sensor
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $32.72 - $388.86 |
| New OEM (Mopar) Sensor | $100 - $320 per sensor |
| Shop Labor | $262 - $537 |
| Total Professional Replacement | $381 - $656+ |
Note: Costs are estimates and can vary based on your location, the specific part chosen, and the repair shop's labor rates. The labor cost can be significantly higher if the front sensor (under the intake manifold) needs replacement.
Frequently Asked Questions (FAQ)
Can I drive my ProMaster with a bad camshaft position sensor?
It is not recommended. While the van might still run, it can stall without warning, which is a significant safety hazard in traffic. It's best to get it repaired as soon as possible.
Is this a difficult DIY repair?
For the 3.6L V6, it depends on which sensor has failed. The rear sensor is relatively easy to access on the driver's side of the engine. However, the front sensor is located underneath the intake manifold, which must be removed to access it. 🎬 Watch: A complete walkthrough of removing the intake manifold. This makes the job significantly more complex and time-consuming. If you are not comfortable removing the intake manifold, this repair is best left to a professional.
What's the difference between a camshaft and a crankshaft sensor?
They work together, but measure different things. The camshaft sensor tracks the position of the camshafts (which control the valves), while the crankshaft position sensor tracks the position of the crankshaft (which is connected to the pistons). The computer uses both signals to get a complete picture of the engine's cycle for precise timing.
Are there any recalls for this part?
As of now, there are no specific recalls issued by the NHTSA for the engine camshaft position sensor on the 2014-2024 Ram ProMaster 3500. However, a technical service bulletin (TSB) was noted for 2014 models with the 3.6L engine related to intermittent long crank times, which can be a symptom of a sensor issue.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5149141AF 68095463AA
The 3.6L Pentastar V6 engine uses two sensors. The 3.0L EcoDiesel uses one sensor. The sensor is a Hall effect type that reads the camshaft's position and sends a signal to the ECU.
