Engine Oil Cooler and Gasket Guide for the 2015-2016 BMW 428i xDrive Gran Coupe
Understanding the common oil leaks on your N20 engine and how to fix them before they cause major problems.
- The problem is almost always the rubber gaskets, not the metal oil cooler itself.
- This is a critical repair; leaking oil can destroy the serpentine belt, risking catastrophic engine failure.
- While the job can be done DIY, it is complex, requiring removal of the intake manifold and draining fluids.
- Always replace the serpentine belt if it has been contaminated with oil.
Is Your BMW Leaking Oil? It Might Be the Oil Cooler Gasket
If you own a 2015-2016 428i xDrive Gran Coupe, you have the BMW N20 engine. A very common issue on this engine is not a failure of the oil cooler itself, but of the gaskets that seal it to the oil filter housing and the engine block. Over time, constant exposure to heat makes these rubber gaskets hard, brittle, and flat, which allows oil to leak out. This is one of the most frequent sources of oil leaks on the N20 engine.

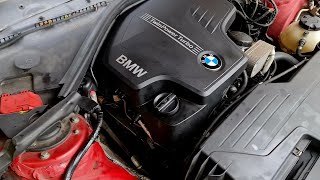

🎬 Watch: A guide to common N20 engine oil leak locations.A Critical Leak to Fix Immediately
An oil leak from the filter housing is more than just a messy drip. The housing is located directly above the main serpentine belt. Leaking oil will soak the belt, causing it to soften, swell, and eventually slip off or shred. If the belt fails, it can be pulled into the engine through the front crankshaft seal, leading to catastrophic engine failure. This is why addressing this leak promptly is essential.
Symptoms of a Failing Oil Cooler or Gasket
Watch for these clear signs that your oil cooler or its gaskets need attention:
- Visible Oil Leak: You'll see oil residue or grime on the passenger side of the engine, specifically around the oil filter housing and on the alternator below it.
- Burning Oil Smell: Oil dripping onto the hot engine or exhaust components will create a distinct burning smell inside or outside the car.
- Low Coolant Warnings: The gaskets also seal coolant passages. A failure can cause coolant to leak externally, sometimes mixing with the leaking oil to form a brownish sludge.
- Oil and Coolant Mixing: In severe cases, the gasket can fail internally, allowing oil and coolant to mix. This creates a milky, tan-colored sludge in your coolant tank or under the oil cap. This requires immediate repair. 🎬 See a visual breakdown of bad oil cooler gasket symptoms.
Choosing the Right Aftermarket Engine Oil Cooler
When replacing the oil cooler or its gaskets, you have several aftermarket options. While the cooler itself is a robust metal part that rarely fails, it is often replaced as an assembly during a gasket job for peace of mind. Here's a look at the available brands:
- Nissens: Widely regarded as a high-quality brand, Nissens is an original equipment (OE) supplier for many German car manufacturers. Choosing Nissens is often like buying the original part without the dealership markup, making it a top-tier choice for reliability.
- Vemo: Vemo is a well-known German aftermarket brand that offers a solid balance of quality and price. It's generally considered a reliable mid-tier option for cooling system components.

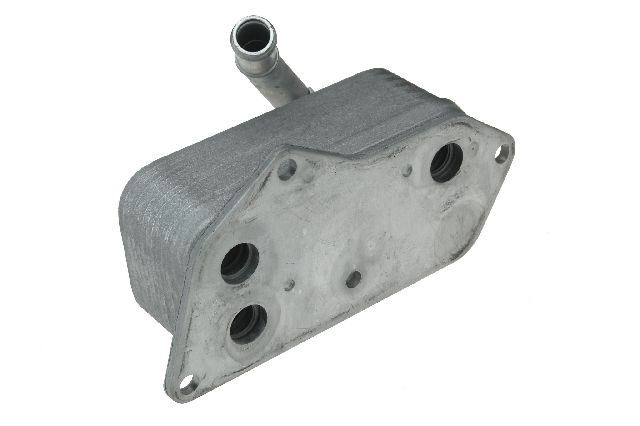

- URO Parts: URO Parts has a reputation for being a budget-friendly option. While some of their standard parts have mixed reviews, their 'URO Premium' line offers improved quality. For a critical part like this, ensure you are getting a high-quality gasket, as premature failure is a known issue with some cheaper aftermarket gaskets.
- Derale: Derale is more known for universal and high-performance cooling systems rather than direct-fit OEM replacement parts for BMWs. Ensure any Derale part is confirmed as a direct fit for your specific vehicle before purchasing.
Pro Tip: The most critical component in this repair is the gasket itself. Many mechanics recommend using a Genuine BMW or OEM-supplier gasket (like Elring or Victor Reinz) even if you use an aftermarket cooler, as they have the best track record for longevity.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Cooler | $72.63 - $117.35 |
| New OEM Oil Cooler | $250 - $400 |
| Gasket Kit Only (OEM) | $40 - $65 |
| Shop Labor | $450 - $900 |
Frequently Asked Questions (FAQ)
Do I need to replace the whole oil cooler or just the gaskets?
In most cases, only the gaskets have failed. The cooler is a simple metal heat exchanger with a low failure rate. However, since the labor is the same, many owners and shops choose to replace the entire assembly for peace of mind, especially on higher-mileage vehicles.
Is this a DIY-friendly repair?
This is a moderately difficult DIY job. It requires removing the intake manifold to access one of the bolts holding the oil filter housing. You will also need to drain the coolant and some of the oil. If you have the right tools (including E-Torx sockets) and are comfortable with a multi-hour job, it is achievable.
🎬 Follow this step-by-step DIY walkthrough for the N20 gasket replacement.Are there any recalls for this issue?
There are no specific recalls for the engine oil cooler or its gaskets on the 2015-2016 428i Gran Coupe. However, there was a recall for a water pump electrical connector that could short circuit, which is another part of the cooling system.
What other parts should I replace at the same time?
Since you'll be draining the coolant and oil, it's the perfect time for an oil change and coolant flush. You must also replace the intake manifold gaskets since the manifold has to be removed for access. Most importantly, inspect the serpentine belt. If it has any signs of oil contamination, it must be replaced.
Helpful Videos
Technical Specifications
OEM Part Numbers: 11427525333 11428637821 11428637820
The engine oil cooler for the N20 engine is a coolant-to-oil heat exchanger. It is mounted directly to the oil filter housing assembly on the passenger side of the engine. The assembly is sealed to the engine block with a large profile gasket and the cooler is sealed to the housing with a smaller square-cut gasket.
