Hyundai Genesis Windshield Washer Pump Replacement Guide (2015-2016)
Everything a 2015-2016 Hyundai Genesis owner needs to know before replacing a faulty windshield washer pump.
- A failed washer pump is the most common reason for the washer system not working on a 2015-2016 Genesis.
- Aftermarket pumps from brands like Trico offer a reliable, cost-effective alternative to expensive OEM parts.
- Replacement is a simple DIY job that takes less than an hour with basic tools.
- There are no specific recalls for the washer pump on this vehicle, but always check for clogged nozzles first.
Is Your Windshield Washer Not Spraying?
A non-working windshield washer system is more than an annoyance; it can be a serious safety issue when your view is obscured. For the 2015-2016 Hyundai Genesis, the cause is often a failed windshield washer pump. This is a common wear-and-tear item. Fortunately, replacing it is a straightforward job that is well within the reach of a DIY mechanic.
Symptoms of a Failing Washer Pump
Diagnosing a bad washer pump is usually simple. Look for these common signs:
- No Sound, No Fluid: You press the washer button and nothing happens. You don't hear the hum of the pump motor, and no fluid sprays out. This often points to a dead pump or an electrical issue like a blown fuse.
- Pump Hums, But No Fluid Sprays: You can hear the pump motor running, but little or no fluid comes out of the nozzles. This could mean the pump's internal impeller has failed, or the system has a clog or leak.
- Weak or Uneven Spray: If the spray is weak, it could be a sign of a dying pump that can no longer create enough pressure. However, you should first check for clogged nozzles, which can be cleaned with a small pin.
- Fluid Leaking Under the Car: If you see a puddle of washer fluid under the front passenger side of your Genesis, the pump's grommet may have failed, or the reservoir or a hose could be cracked. 🎬 Watch: How to fix a leaking windshield washer fluid system.
Check for Clogs and Leaks First
Before buying a new pump, make sure your reservoir is full and check for obvious leaks in the hoses. Sometimes, sludge can build up and clog the nozzles or lines. Try cleaning the nozzle openings with a pin to see if that restores flow.
Choosing a New Aftermarket Pump
When replacing the washer pump on your Genesis, you have two main choices: OEM (Original Equipment Manufacturer) or aftermarket. For a simple part like this, an aftermarket pump offers excellent value.
- OEM: An OEM pump from a Hyundai dealer is guaranteed to fit and perform exactly like the original. However, it is the most expensive option.
- Aftermarket (Trico and others): Aftermarket brands like Trico are designed to meet or exceed original equipment performance. They are built to fit correctly without modification and offer significant cost savings, making them a smart choice for this repair. Reviews for Trico pumps are generally positive, citing easy installation and reliable function.
Pro Tip: Check Front and Rear Application
The 2015-2016 Genesis sedan may use the same pump for both the front and rear windshield washers. However, always verify the part number and connector type before purchasing to ensure you get the correct component. Some pumps have reversed hose connections that can cause your controls to work backward.
Cost of Replacing a Windshield Washer Pump (2015-2016 Hyundai Genesis)
| Part Type | Estimated Cost |
|---|---|
| New OEM | $70 - $120 |
| New Aftermarket (Trico, etc.) | $24 - $35 |
| Shop Labor | $80 - $150 |
Frequently Asked Questions
Is there a recall on the 2015-2016 Genesis washer pump?
No. While there was a recall for the windshield wiper motor on some older Genesis models, there are no active recalls or common Technical Service Bulletins (TSBs) for the windshield washer pump on the 2015-2016 Hyundai Genesis.
Can I replace the washer pump myself?
Yes, this is a very DIY-friendly job. Accessing the pump requires removing the front passenger wheel and part of the plastic wheel well liner. No special tools are needed, and the pump simply pulls out from the reservoir and unplugs from a single electrical connector. The entire job can typically be done in under an hour.

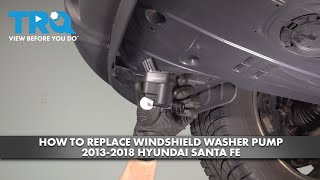

🎬 See this step-by-step pump replacement walkthrough on a similar Hyundai.Where is the washer pump located on the 2015-2016 Genesis?
The washer pump is located at the bottom of the windshield washer fluid reservoir. The reservoir itself is situated inside the front passenger-side fender, behind the wheel well liner.
Do I need to drain the washer fluid to replace the pump?
Yes. When you pull the old pump out of the reservoir, all the fluid will drain out. It's best to have a bucket ready to catch the old fluid before you begin. This is also a good time to clean any sediment out of the bottom of the reservoir.
🎬 Watch: A helpful guide on how to replace a washer pump.Helpful Videos
Technical Specifications
OEM Part Numbers: 98510-3W000
Voltage: 12V, Terminal Quantity: 2, Terminal Type: Blade. The pump pushes into a rubber grommet on the washer fluid reservoir.
