Lexus NX200t Starter Replacement Guide (2015-2017)
Everything you need to know before replacing the starter on your 2015-2017 Lexus NX200t.
- A single loud click is a classic sign of a bad starter, while rapid clicking usually means a dead battery.
- No recalls or TSBs exist for the starter on this vehicle; failures are due to normal wear.
- Replacement is a moderately difficult DIY job (2-4 hours) that requires removing the airbox for access.
- For best results, choose a new aftermarket starter from an OEM-supplier brand like Denso.
Is Your NX200t Starter Failing?
A starter problem can leave you stranded. The most common starting issues for the NX200t are a weak battery, a failing alternator, or a bad starter. If the battery is healthy, the starter itself is the next likely culprit. Signs of a failing starter are often clear 🎬 Watch: See and hear these common bad starter symptoms and shouldn't be ignored.
Common Failure Symptoms:
- Single Loud Click: You press the start button and hear one loud click, but the engine doesn't crank. This often points to a failed starter solenoid.
- Slow, Labored Cranking: The engine turns over much slower than usual, as if the battery is weak. If the battery tests good, the starter motor may be drawing too much power due to internal wear.
- Grinding Noise: A harsh grinding sound during or after starting can mean the starter gear is not meshing correctly with the flywheel or is failing to retract.
- No Sound at All: You press the start button and nothing happens—no click, no crank. This could be a dead battery, but it can also indicate a complete failure of the starter motor or its electrical circuit.
- Intermittent Starting: The car starts fine sometimes but fails to crank at other times. This can be an early sign of starter failure. One owner reported an intermittent long-crank issue that was difficult to diagnose.
Known Issues, Recalls, or Service Bulletins
Our research found no specific recalls or Technical Service Bulletins (TSBs) from Lexus or the NHTSA related to the starter motor for the 2015-2017 Lexus NX200t. While there are recalls for the fuel pump and other components on these model years, they do not affect the starting system. Starter failure on the NX200t appears to be a result of normal wear and tear over time and mileage rather than a specific manufacturing defect.
Choosing a New Aftermarket Starter
When replacing your starter, you have a choice between Original Equipment (OEM) from a Lexus dealer and various aftermarket brands. For the NX200t, high-quality aftermarket starters offer excellent reliability and value.
Brand Tiers for Your Lexus
- Premium Aftermarket (OEM-Equivalent): Brands like Denso and Bosch are top choices. Denso is a major original equipment supplier for Toyota and Lexus, so their aftermarket parts are often identical to the factory-installed ones. Choosing a new Denso starter is the closest you can get to OEM quality.
- Quality Aftermarket: Brands like Remy and WAI Global are solid mid-tier options. Remy has a long history and is generally considered reliable, though some mixed reviews exist. WAI Global manufactures new units tested to OEM specifications and can be a good value.
- Standard/Economy Aftermarket: Brands like BBB Industries fall into this category. They provide a functional replacement at a lower cost, but may not have the same long-term durability or stringent quality control as premium brands.
Cost of Replacing Your Lexus NX200t Starter
The total cost depends on the part you choose and whether you do the work yourself or hire a professional. Shop labor for this job is relatively low, estimated at around 1-1.5 hours.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter | $113 - $354 |
| Shop Labor | $61 - $90 |
| Total Professional Replacement | $337 - $443 |
Frequently Asked Questions (FAQ)
Is it hard to replace the starter on a 2015-2017 NX200t myself?
The replacement is considered to have an intermediate difficulty level. It requires removing the battery and the air filter box assembly to access the starter. The starter itself is held on by two 14mm bolts. If you have a good set of tools, including sockets and extensions, and are comfortable working in the engine bay, it is a feasible DIY job that can take 2-4 hours.
🎬 See this step-by-step starter replacement walkthroughShould I buy a new or remanufactured starter?
For this vehicle, new aftermarket starters are widely available and recommended. A new starter from a quality brand like Denso or WAI Global uses all-new components and often comes with a better warranty. While a remanufactured starter from a top brand can be reliable, the price difference for a new unit is often small enough to justify the extra peace of mind.
Will a bad starter drain my battery?
Yes. A failing starter motor can develop high internal resistance, causing it to draw excessive current from the battery each time you try to start the car. This can quickly drain a healthy battery and put extra strain on the vehicle's electrical system.
What tools are needed for the replacement?
You will need a basic socket set (10mm, 12mm, 14mm), ratchet, extensions, and potentially a universal joint adapter. A flat-blade screwdriver for hose clamps and trim clip removal tools are also helpful. Always disconnect the negative battery terminal with a 10mm wrench before starting any work.
Helpful Videos

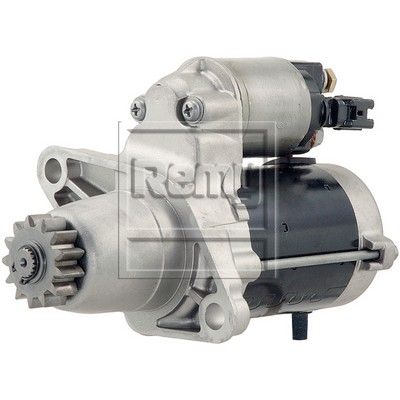

Technical Specifications
OEM Part Numbers: 28100-36160 28100-0V050
12 Volt, Clockwise Rotation, 1.7kW Power Rating, Gear Reduction Type
