Ford Transit Throttle Body Guide for 2015-2018 Models
If your Transit van suddenly loses power and the wrench light comes on, a faulty throttle body is the most likely culprit.
- The most common failure symptom is the 'wrench light' combined with a sudden loss of power (limp mode).
- This is a known issue acknowledged by Ford; aftermarket replacements are a reliable and cost-effective fix.
- Cleaning the throttle body will not fix the electronic fault that causes limp mode; replacement is required.
- A 'relearn' procedure is necessary after installation to ensure proper idle and performance.
Is Your Ford Transit Suddenly Losing Power?
A very common and frustrating problem for 2015-2018 Ford Transit owners is a sudden loss of power, where the van can barely accelerate. This is often accompanied by a wrench icon on the dashboard. 🎬 Watch: What the dreaded wrench warning light looks like This safety feature is called "limp mode" or "limp home mode." It's designed to protect the engine while allowing you to drive slowly to a safe location. In most cases, the cause is a failing electronic throttle body. This issue is widespread across many Ford vehicles from this era, including the Transit's 3.5L, 3.7L, and 3.2L diesel engines.
Known Issue: Customer Satisfaction Program 16B32
Ford issued a Customer Satisfaction Program (not a full recall) in 2016 for this exact problem on some 2016 Transit vans. The issue was identified as contamination inside the throttle body's motor, leading to a poor electrical connection. This triggers fault codes P2111 or P2112 and puts the van into limp mode. While the program expired on September 30, 2017, it confirms that the original equipment (OEM) throttle bodies were known to have this fault. Even if your van wasn't covered, the symptoms and failure are the same.
Choosing the Right Aftermarket Throttle Body
When your original throttle body fails, you have a choice between another OEM part from Ford or an aftermarket one. For this specific issue, aftermarket parts are a reliable and cost-effective solution. The original parts have a known, documented fault, and aftermarket brands often address these weaknesses.
- Standard Ignition (Standard Motor Products): Often considered a top-tier aftermarket brand, Standard sometimes manufactures parts for the original automaker. Their products are known for quality and reliability, meeting or exceeding OEM specifications.
- Dorman: Dorman is a well-known brand that specializes in creating affordable replacement parts. They are particularly good at identifying common OEM failures and engineering solutions to fix them. For a common issue like this, a Dorman part is a solid, budget-friendly choice.
Pro Tip: The failure is almost always electronic. If your van is in limp mode with a wrench light, cleaning the throttle body is very unlikely to fix it. Replacement is the proven solution.
Cost to Replace Ford Transit Throttle Body
| Part Type | Estimated Cost |
|---|---|
| New OEM (Ford) | $280 - $423 |
| New Aftermarket (Dorman, Standard Ignition) | $153 - $181 |
| Shop Labor | $73 - $115 |
| Total Professional Replacement (Aftermarket Part) | $226 - $296 |
Frequently Asked Questions (FAQ)
What is the 'wrench light' on my Transit dashboard?
The wrench light is the powertrain malfunction indicator. Unlike the check engine light, it specifically points to a problem with the powertrain or throttle control system. When it comes on, the van's computer will often restrict engine power (limp mode) to prevent damage.
Do I need to program or 'relearn' the new throttle body?
Yes, a relearn procedure is required after installation. This allows the van's computer to learn the new throttle body's closed and open positions. Without it, you may have a high or unstable idle. 🎬 Watch: How to perform the throttle body relearn process The procedure can often be done without special tools by following a sequence of turning the key, letting the engine idle, and driving the vehicle. Some shops may use a scan tool to perform the reset.
Can I just clean my old throttle body?
If you are only experiencing a slightly rough idle, cleaning might help remove carbon buildup. However, if you are getting the wrench light and limp mode, the problem is almost certainly an internal electronic failure. In this common failure scenario, cleaning will not solve the problem and replacement is necessary.
Is this a difficult DIY replacement?

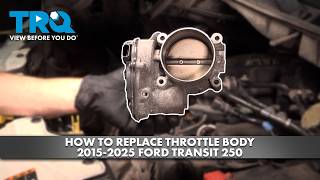

For a moderately experienced DIYer, this is a straightforward job. The throttle body is usually easy to access at the front of the engine. The process involves removing the air intake tube, disconnecting one electrical plug, and removing four bolts. 🎬 See this step-by-step throttle body replacement walkthrough The most important part is performing the relearn procedure correctly after installation.
Helpful Videos
Technical Specifications
OEM Part Numbers: 7T4Z-9E926-FA 8S4Z-9E926-B
Electronic 'drive-by-wire' throttle body assembly with integrated motor and position sensor. Typically held on by four 8mm or 10mm bolts.
