A Guide to the 2015-2018 Volvo V60 Fuel Pump Module Assembly
If your V60 is stalling or having trouble starting, this guide will help you understand if the fuel pump module is the problem.
- A failing fuel pump is a serious safety issue; do not drive a vehicle that stalls unexpectedly.
- Before replacing the pump, rule out easier fixes like the PEM module or the fuel pressure sensor TSB for 2015-16 models.
- For reliability, choose a premium aftermarket brand like Bosch or Delphi over cheaper, unbranded options.
- Replacement is a difficult DIY job that requires a special lock ring tool and extreme caution when handling fuel.
Is Your V60's Fuel Pump Module Failing?
A failing fuel pump can be difficult to diagnose because its symptoms often mimic other engine problems. However, certain signs are very common when the in-tank fuel pump module in a 2015-2018 V60 begins to wear out. Paying attention to these warnings can help you address the issue 🎬 Watch: A visual guide to common bad fuel pump symptoms before it leaves you stranded.
Common Symptoms of a Bad Fuel Pump Module:
- Engine Sputtering: You might feel the engine sputter or jerk, especially at consistent highway speeds. This suggests the pump is struggling to supply a steady stream of fuel.
- Difficulty Starting: The engine may take longer than usual to crank and start, or it might not start at all. This happens when the pump can't build enough initial fuel pressure.
- Sudden Stalling: The engine may cut out unexpectedly while driving, which can be very dangerous. This can happen if the pump fails intermittently.
- Loss of Power: You may notice your V60 feels sluggish, hesitates during acceleration, or struggles when climbing hills.
- Whining Noise: A noticeable whining or humming sound from the rear of the car, near the fuel tank, can be a sign of a worn-out pump motor.
- Check Engine Light: A failing pump can trigger a Check Engine Light, sometimes with codes related to fuel pressure.
Known Issues and Recalls for Volvo Fuel Systems
While the 2015-2018 V60 has no direct fuel pump recalls, it's important to be aware of related issues that can cause identical symptoms. Diagnosing these first can save you from replacing a perfectly good fuel pump.
- Fuel Pump Fuse Recall (2019-2020 Models): Volvo recalled many 2019-2020 models, including the V60, for a low-pressure fuel pump fuse that could blow and cause the engine to stall. While your model year isn't covered, it highlights a sensitivity in the fuel system's electronics.
- Fuel Pressure Sensor TSB (2015-2016 Models): Volvo issued a Technical Service Bulletin (TSB P29929) for some 2015-2016 models for a faulty low-pressure fuel sensor that could cause stalling and a check engine light (code P018C00).
- Pump Electronic Module (PEM) Failure: These Volvos have a separate Fuel Pump Control Module, or PEM. Due to its location, it can corrode and fail, perfectly mimicking a bad fuel pump by cutting power to it. Always consider the PEM as a possible culprit for a "crank, no start" condition. 🎬 See how to check your PEM before replacing the pump
Choosing the Right Aftermarket Part: OEM vs. Aftermarket Brands
When your fuel pump module fails, you have several replacement options. The price differences are significant, but so are the potential differences in quality and longevity.
OEM (Original Equipment Manufacturer): A genuine Volvo part is the safest but most expensive choice. It guarantees perfect fit and performance but can cost several times more than an aftermarket alternative.
Bosch: Bosch is a massive German parts manufacturer and is the original supplier for many European car parts, including for Volvo. Choosing a Bosch fuel pump module is often the smartest move. You are likely getting a part of the same or better quality as the original, but without the dealer markup.
Delphi: Delphi is another top-tier, OE-quality supplier. While they were originally the parts division for General Motors, they manufacture high-quality components for many brands. A Delphi module is a reliable and trusted choice for your V60.
Cost of Replacing a Volvo V60 Fuel Pump Module
| Part Type | Estimated Part Cost |
|---|---|
| New Aftermarket (Bosch, Delphi) | $272 - $967 |
| New OEM (Genuine Volvo) | $1,800 - $1,900 |
| Used OEM | $75 - $200 |
| Shop Labor | $366 - $537 |
Frequently Asked Questions (FAQ)
Can I just replace the pump motor instead of the whole assembly?
While it is sometimes possible to replace only the small electric motor inside the module, it is not recommended. The assembly also contains the filter and fuel level sender, which can also wear out. Replacing the complete module ensures all components are new and reliable, and it prevents potential compatibility issues.
Is replacing the fuel pump module a DIY job?
This is an advanced DIY job. While it doesn't require dropping the entire fuel tank, it involves working with gasoline, which is dangerous. You also need a special lock ring tool to remove and install the module. Due to the fire risk and special tools, many owners choose to leave this job to a professional.
🎬 Watch: DIY guide for fuel pump access and tank removalDo I need to replace the fuel pump seal?
Yes, absolutely. The large O-ring or seal that goes between the module and the fuel tank is a one-time-use part. Reusing the old seal will almost certainly cause a fuel leak and dangerous gasoline fumes in the cabin. Always install a new seal with a new pump module.
Why is there such a large price range for aftermarket pumps?
The price reflects the quality of the components. Premium brands like Bosch and Delphi invest heavily in research, use high-grade materials, and adhere to strict quality control, just like the original manufacturer. Lower-priced options cut corners on the pump motor, wiring, and plastic housing, leading to a much shorter lifespan.
Helpful Videos
Technical Specifications
OEM Part Numbers: 31478640 31372880 32140068

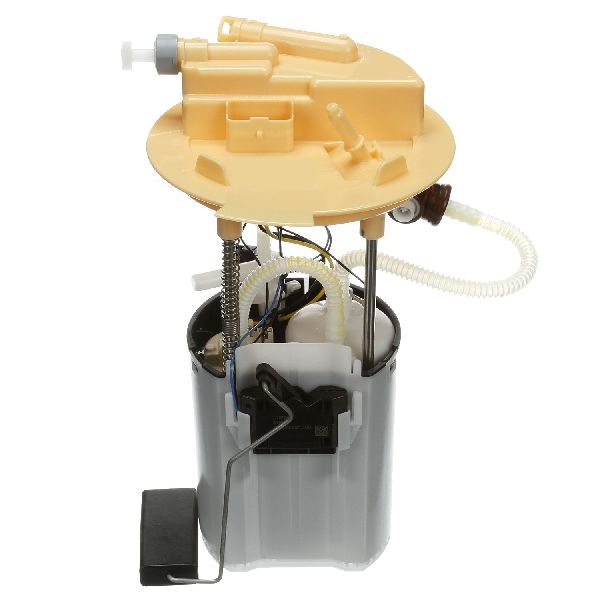

This is a complete in-tank fuel pump module assembly. It includes the low-pressure pump, sending unit, and filter. Note: Part numbers can vary by specific engine and chassis number. Always verify the correct part number with your vehicle's VIN before ordering.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
