Mazda 3 Engine Oil Pressure Switch Guide (2015-2021)
Is your red oil light on even with a full dipstick? Here’s what to know before replacing the oil pressure switch on your 2015-2021 Mazda 3.
- Never drive your Mazda 3 if the red oil pressure light is on; stop the engine immediately.
- First, always verify your engine oil level with the dipstick. A faulty switch can trigger the light even when the oil level is correct.
- For 2018-2021 models with codes P0524 or P055F, the problem is often a sticking oil solenoid valve, not the pressure switch, as noted in Mazda TSB 01-004/21.
- Replacement is a simple DIY task for most, located near the oil filter.
Is Your Mazda 3 Oil Pressure Switch Failing?
When an oil pressure switch fails, it can give false signals. The most common symptom is the red oil pressure warning light on your dashboard coming on or flickering, especially when the engine is warm or at idle. You might check your dipstick and find the oil level is perfectly fine. This can be confusing, but it often points directly to a faulty switch that is incorrectly reporting low pressure.
Warning: Red vs. Amber Oil Light
Your Mazda has two different oil lights. A red oil can light means low oil PRESSURE, which is critical. Stop the engine immediately. An amber/yellow oil can light indicates low oil LEVEL. You should add oil soon. Confusing the two can be a costly mistake.
🎬 Watch: Why you should never ignore a Mazda oil warningA Critical Note on Known Issues (TSBs)
For some 2018-2021 Mazda 3 models, the low oil pressure warning and check engine light (with codes P0524 or P055F) may not be caused by the pressure switch itself. Mazda issued a Technical Service Bulletin (TSB 01-004/21) explaining that contamination in the oil can cause the engine oil solenoid valve to stick. This valve helps control oil pressure, and when it malfunctions, it triggers the same warnings as a bad pressure switch. The official fix is to replace the solenoid valve, change the engine oil and filter, and update the vehicle's software. Before replacing the pressure switch, it's wise to consider if this TSB applies to your vehicle, especially if you see codes P0524 or P055F.
🎬 See how to diagnose these specific Mazda oil pressure codesChoosing the Right Aftermarket Oil Pressure Switch
The OEM Mazda part is reliable, but a quality aftermarket switch can offer the same performance for less money. For a simple sensor like this, the main differences between brands are material quality and manufacturing consistency.
| Brand Tier | Brands | Our Take |
|---|---|---|

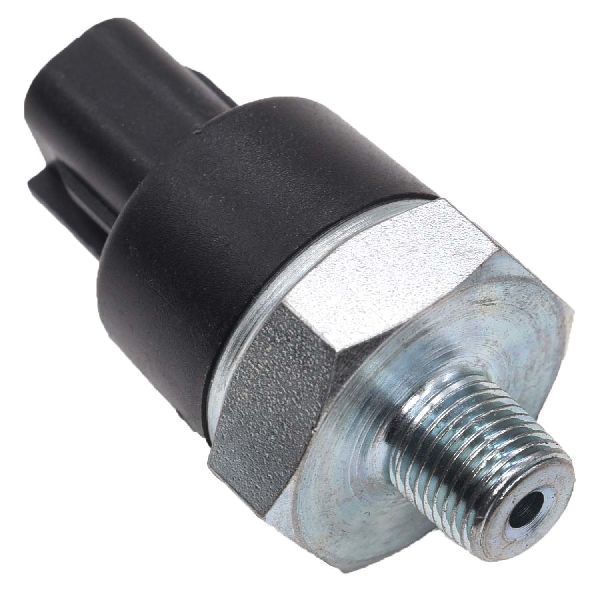

| Good | Walker Products | Walker is known for striking a good balance between affordability and performance that meets original equipment (OE) standards. Reviews for their sensors are generally positive, noting good fit and function, making them a solid, reliable choice for most owners. |
| Better | Standard Ignition (SMP) | Standard Motor Products is a well-regarded aftermarket manufacturer. Many professionals and DIYers trust the brand, and some of their parts are even rumored to be rebranded OEM parts. While one user on a forum reported a failure after a year, the general consensus is positive for quality and reliability. |

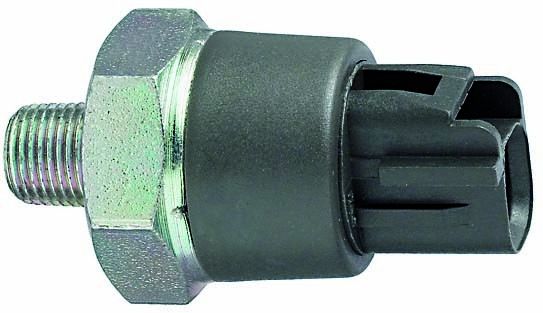

| Other Options | Facet | Facet is a known brand, but there is limited feedback available from North American Mazda owners. Without more data on long-term reliability for this specific vehicle, it's harder to assess compared to Walker or Standard. |
Frequently Asked Questions
Can I drive with the oil pressure light on?
No. If the red oil pressure light is on, you should pull over safely and turn off the engine as soon as possible. Driving without proper oil pressure can destroy your engine in minutes. It is best to have the vehicle towed.
Where is the oil pressure switch located on a 2015-2021 Mazda 3?
The engine oil pressure switch is typically screwed into the engine block, often located near the oil filter housing. To access it, you will likely need to remove the plastic undertray (aerodynamic under cover No. 2).
Is replacing the oil pressure switch a DIY job?
Yes, for most home mechanics with basic tools. After safely raising the vehicle and removing the under cover, the job involves unplugging the electrical connector and unscrewing the old sensor with a deep socket or wrench. Always check that the engine is cool before starting work.
🎬 Watch this step-by-step Skyactiv oil pressure switch replacement guideWill a new switch fix my oil light problem?
If the switch itself has failed, then yes. However, if your Mazda falls under the TSB for a sticking oil solenoid valve (common in 2018-2021 models), a new pressure switch will not solve the problem. If you have codes P0524 or P055F, investigate the TSB first.
What happens if I ignore a faulty oil pressure switch?
The biggest risk is that you won't be alerted if a real oil pressure problem occurs. If the switch is crying wolf, you might start to ignore the light. If your oil pump actually fails later and the light doesn't work or you ignore it, you could face catastrophic engine failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: PE01-18-501B PE01-18-501A PE01-18-501
The oil pressure switch for the 2015-2021 Mazda 3 with the Skyactiv-G engine is a single-pin sensor that threads into the engine block. It operates as a simple on/off switch, closing a circuit to ground to illuminate the dashboard warning light when oil pressure drops below a preset threshold.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
