Engine Coolant Thermostat Guide for the 2015-2021 Mazda 6
Understand common thermostat problems in your Skyactiv engine and learn how to choose the right replacement part.
- For 2018-2021 models, check with a Mazda dealer first; a common thermostat failure (code P0126) is likely covered by a 15-year/150,000-mile warranty extension.
- The most common failure mode is stuck-open, leading to a cold-running engine, poor heat, and a P0128 or P0126 check engine light code.
- When buying a part, OEM is strongly recommended for reliability. If choosing aftermarket, Gates is a trusted option.
- Ensure you purchase the correct part—either the thermostat insert or the complete housing assembly—and that it has the correct OEM temperature rating (approx. 180°F).
Is your Mazda 6 engine slow to warm up?
A common issue for the 2015-2021 Mazda 6 is a faulty engine coolant thermostat. Unlike many cars where thermostats fail by getting stuck closed and causing overheating, the thermostat in the Mazda 6 often fails by sticking open. This leads to a different set of symptoms.
Top 5 Signs of a Failing Thermostat
- Check Engine Light: The most common sign is a check engine light with diagnostic trouble codes P0126 or P0128. These codes specifically mean the engine coolant temperature is below the normal regulating temperature.
- Engine is Slow to Warm Up: You'll notice the temperature gauge takes much longer than usual to reach the middle, or it may not get there at all during short trips.
- Fluctuating Temperature Gauge: While driving, especially on the highway or downhill, the temperature gauge may drop from its normal position and then climb back up.
- Poor Heater Performance: Because the engine isn't reaching its full operating temperature, the air blowing from your heater vents may only be lukewarm, particularly when the car is idling.
- Blue Low Coolant Temp Light Stays On: The blue indicator light on your dashboard may stay on for an extended period after starting the car or even come back on while driving.
Known Issue & Warranty Extension for 2018-2021 Mazda 6
Mazda has recognized a common problem with the thermostat on 2018-2021 Mazda 6 models with the 2.0L and 2.5L non-turbo engines. A Technical Service Bulletin (TSB 01-005/24) has been issued for this issue, which commonly causes code P0126:00.
More importantly, Mazda created a Special Service Program (SSP D8) that extends the warranty for this specific failure to 15 years or 150,000 miles from the vehicle's original in-service date. If your 2018-2021 Mazda 6 has these symptoms, contact a Mazda dealer. You are likely eligible for a free repair. This program does not apply to 2015-2017 models.
Choosing the Right Aftermarket Thermostat
If your vehicle is a 2015-2017 model or is otherwise not covered by the warranty extension, you'll need to purchase a replacement part. For this specific component, sticking with the Original Equipment (OEM) part is highly recommended by mechanics and owners for reliability. However, if you opt for an aftermarket part, here is a breakdown of common brands.
Brand Quality Tiers:
- Tier 1 (OEM Equivalent): An OEM Mazda thermostat is your best bet. For some aftermarket brands like Beck Arnley, you may even find an OEM part in a different box. Gates is also a well-regarded brand that many professionals trust.
- Tier 2 (Standard Aftermarket): Brands like Calorstat and Stant (specifically the "SuperStat" line) are generally considered reliable standard replacements.
- Tier 3 (Economy): Motorad is a budget-friendly option, but some owners have reported premature failures. Use with caution if long-term reliability is your primary concern.
Pro Tip: The thermostat on these models is part of a larger assembly called the Coolant Control Valve (CCV). You can buy just the thermostat insert or the entire housing. For the TSB-related issue on 2018+ models, Mazda created a kit (PYFD-15-16Z) to replace just the thermostat component within the housing. Ensure the part you buy matches what you intend to replace.
Cost of Replacing a Mazda 6 Thermostat
| Part Type | Estimated Cost |
|---|---|
| New OEM (Thermostat Assembly) | $340 - $495 |
| New OEM (Thermostat Insert Only) | $27 - $38 |
| New Aftermarket (Inventory Range) | $10.77 - $40.31 |
| Shop Labor | $180 - $265 |
| Total Professional Job (OEM Assembly) | $520 - $760 |
| Total Professional Job (Aftermarket Insert) | $190 - $305 |
Note: Costs are estimates and can vary by location and the specific parts required. The high OEM cost reflects the full Coolant Control Valve assembly common on later models.
Frequently Asked Questions
Is there a recall for the Mazda 6 thermostat?
No, there is no official safety recall for the thermostat. However, for 2018-2021 models, Mazda has a warranty extension program (SSP D8) that covers the cost of repair for the common thermostat failure that causes code P0126.
Do I have to replace the entire thermostat housing?
Not always. The thermostat itself is a small, replaceable component inside the main housing. For many repairs, you only need to replace the thermostat and its gasket. However, housings can crack or warp over time, and sometimes it's easier or necessary to replace the complete assembly.
What temperature is the OEM Mazda 6 thermostat?
The OEM thermostat begins to open between 80.5-83.5°C (177-182°F). It is critical to use a replacement thermostat with the same temperature rating to ensure proper engine performance and efficiency.
Can I still drive my Mazda 6 with a bad thermostat?
If it's stuck open (causing a cold-running engine), you can drive the car to get it repaired, but it's not recommended for long. Driving for extended periods with the engine too cool can increase fuel consumption, raise emissions, and potentially lead to engine sludge buildup over time. If the thermostat is stuck closed (causing overheating), you should pull over immediately and have the vehicle towed to prevent catastrophic engine damage.

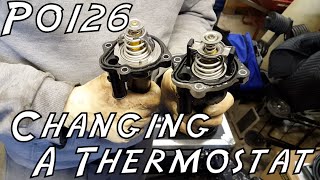

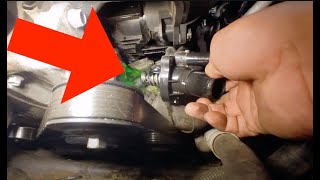

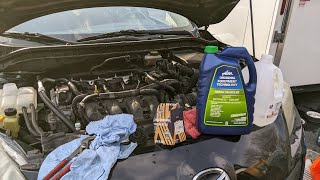

Helpful Videos
Technical Specifications
OEM Part Numbers: PYFD-15-16Z PYFD-15-16ZA PE01-15-171
Initial Opening Temperature: 80.5 - 83.5°C (177 - 182°F)
