Guide to the 2015-2021 Mazda 6 Serpentine Belt
Everything a Mazda 6 owner needs to know about serpentine belt function, failure, and replacement.
- Inspect the belt at every oil change for cracks, fraying, or glazing.
- A squealing noise is the first sign of a problem; don't ignore it.
- Strongly consider replacing the hydraulic belt tensioner with the belt due to a known Mazda TSB for leaks.
- If the belt breaks, the engine will overheat. Pull over immediately to prevent severe damage.
Is Your Serpentine Belt Failing?
A failing serpentine belt gives clear warning signs. Being able to spot them can save you from a sudden breakdown. If the belt breaks completely, your car will lose power steering, the battery will stop charging, and the engine will quickly overheat.
Common Failure Symptoms
- Squealing or Chirping Noises: This is the most common symptom, often heard when starting the engine or turning on the A/C. It indicates the belt is slipping.
- Visible Wear: A visual inspection can reveal cracks, fraying, glazing (a shiny surface), or missing ribs on the belt.
- Accessory Failure: Dimming headlights or a battery warning light point to a problem with the alternator, which is driven by the belt. Loss of power steering or poor A/C performance are also signs.
- Rattling Noise: While the belt itself can make noise, a rattling or fluttering sound often points to a failing belt tensioner, which is a common issue on these vehicles.
A Known Issue: The Belt Tensioner
For the 2015-2021 Mazda 6, a frequent source of belt-related problems is not the belt itself, but the hydraulic belt tensioner. Mazda issued a Technical Service Bulletin (TSB 01-019/19) for a wide range of models, including the Mazda 6, for tensioners that can leak hydraulic fluid. This leak prevents the tensioner from keeping the belt tight, leading to slipping, noise, and premature belt wear. You might see oily gunk or splatters around the tensioner assembly. Because of this known issue, it is highly recommended to inspect the tensioner for leaks and consider replacing it at the same time as the belt, especially on earlier models in this year range 🎬 Learn how to remove and install a new belt tensioner. or those with high mileage.
Choosing Your Aftermarket Replacement Belt
When it's time for a replacement, you don't have to buy an OEM part from the dealer to get excellent quality. Top-tier aftermarket brands like Dayco and Gates are often the original suppliers for car manufacturers and produce belts that meet or exceed OEM specifications.
Both Dayco and Gates are well-regarded brands in forums by mechanics and Mazda owners. You can confidently choose either brand based on price and availability. They are known for making durable EPDM rubber belts that resist noise and wear.
| Part | Average Cost |
|---|---|
| New Aftermarket Serpentine Belt (Dayco, Gates) | $25.15 - $34.67 |
| New OEM Serpentine Belt | $40 - $60 |
| Shop Labor for Belt Replacement | $80 - $150 |
| Aftermarket Belt Tensioner | $50 - $130 |
Frequently Asked Questions
When should I replace my Mazda 6's serpentine belt?
Mazda's official maintenance schedule for the 2015-2021 Mazda 6 only calls for inspection, not a specific replacement interval. However, most mechanics and owners recommend replacing it as a preventive measure around 75,000 to 100,000 miles, or sooner if you see any signs of wear like cracking or fraying.
Is this a difficult DIY job?

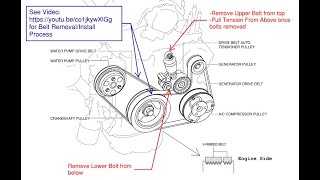

For a moderately experienced DIYer, this is a very feasible job. It requires removing the passenger-side front wheel and a splash shield for access. The key step is using a long 17mm wrench to slowly release the pressure on the hydraulic tensioner to slip the old belt off and the new one on. The entire process typically takes about an hour.
🎬 See how to replace the serpentine belt on a Mazda 6.Should I replace anything else with the serpentine belt?
Yes. Due to the known TSB for leaking hydraulic tensioners on Skyactiv engines, it is strongly recommended to replace the belt tensioner at the same time. Many owners also replace the separate, smaller stretch belt for the water pump, as it requires removing the main serpentine belt to access.
🎬 Watch a complete walkthrough for replacing both belts and the tensioner.What happens if the serpentine belt breaks while driving?
If the belt breaks, you will immediately lose power steering, making the wheel very difficult to turn. The alternator will also stop working, so your battery will no longer charge, and the car will eventually die. Most critically, the water pump will stop circulating coolant, causing the engine to overheat, which can lead to severe engine damage. You should pull over safely as soon as possible.
Helpful Videos
Technical Specifications
OEM Part Numbers: PY01-15-909A

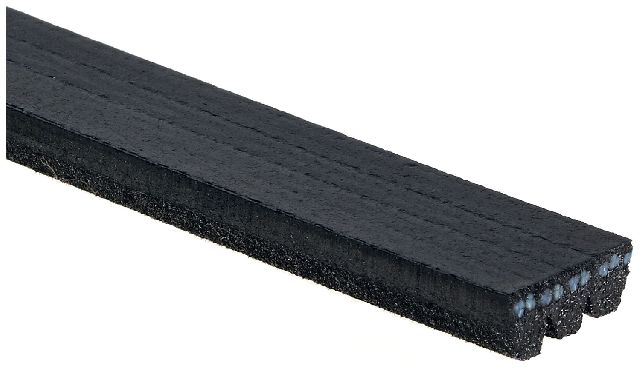

The 2.5L Skyactiv engine uses a single main serpentine belt (Poly-V, 6-rib) and a separate stretch belt for the water pump.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
