Engine Auxiliary Water Pump on the 2015-2021 Volkswagen Jetta: A Complete Guide
If your Jetta's heater is blowing cold air, the small electric auxiliary water pump could be the reason.
- The most common sign of failure is no heat at idle, often paired with a P261A check engine code.
- This electric pump is separate from the main engine water pump, which is known for leaking coolant.
- Failure will not cause your engine to overheat, but it will leave you without cabin heat.
- Replacement is a straightforward job that is much simpler and cheaper than replacing the main water pump.
Is Your Jetta's Auxiliary Water Pump Failing?
The auxiliary water pump is a common failure item on modern Volkswagens. Because it's an electric motor that runs intermittently, it eventually wears out. When it fails, it will give you clear signs that something is wrong.
Main Pump vs. Auxiliary Pump: A Critical Distinction
Your Jetta has two water pumps. The main engine water pump (part of a large thermostat housing assembly) is a known weak spot, prone to leaking coolant. This guide is about the smaller, separate electric auxiliary water pump, which typically fails electrically and causes heating problems. Coolant leaks are almost always from the main pump, not the auxiliary one.
Symptoms of a Bad Auxiliary Water Pump
- No Heat at Idle: The most common symptom is having no warm air from your vents when the car is stopped or at low speeds. The heat may return when you start driving at higher RPMs.
- Check Engine Light with Code P261A: The car's computer is very good at detecting when this pump fails. A fault code P261A, which means "Coolant Pump 'B' Control Circuit/Open, 🎬 Watch: Diagnosing the P261A code on a Volkswagen" is a definitive sign the pump has an internal electrical problem.
- Buzzing or Whining Noise: You might hear a high-pitched buzzing sound from the engine bay. This sound can sometimes continue for a short period after the engine is turned off and is caused by an electrical short inside the failing pump motor.
- Poor Defroster Performance: Because the defroster uses the same system, an inability to clear your windshield is another key symptom. 🎬 See: How to diagnose a failing water pump
Choosing the Right Aftermarket Part
When replacing this pump, you don't necessarily need to buy a part from the Volkswagen dealer. Several reputable aftermarket companies make high-quality replacements. Since the failure is almost always electrical, choosing a brand known for quality electronics and cooling parts is key.
- OEM Supplier (Best): Brands like Bosch are often the original manufacturer for Volkswagen. Choosing a Bosch pump often means you are getting the exact same quality as the dealer part without the dealer markup.
- Premium Aftermarket (Good): Gates is a highly respected name in cooling systems and drive components. Their parts are known for reliability and are a trusted choice for mechanics. Nissens is another strong European brand specializing in cooling and climate control parts.
- Standard Aftermarket (Value): Brands like Four Seasons offer a more budget-friendly option that meets original specifications and provides reliable function for daily driving.
Replacement Cost
Replacing the auxiliary water pump is much less expensive than replacing the main water pump assembly. The job is simpler and does not require removing major engine components like the intake manifold.
| Part Type | Estimated Part Cost |
|---|---|
| New OEM (Dealer) | $240 - $310 |
| New Aftermarket | $155 - $270 |
| Shop Labor | $100 - $200 |
| Total Estimated Cost | $255 - $470 |
Pro Tip: Check for Leaks Anyway
While you are working on the cooling system, carefully inspect the area around the main water pump and thermostat housing (a larger plastic assembly) for any signs of pink/purple dried coolant residue. These are notorious for leaking, and it's better to know if you have two developing problems at once.
Frequently Asked Questions (FAQ)
My mechanic found code P261A. Do I need a new pump?
Yes, almost certainly. The P261A code specifically points to an open electrical circuit within the auxiliary water pump. This is not a wiring issue in the car itself but an internal failure of the pump's motor. Replacement is the only fix.
Is this the same as the water pump covered by the class-action lawsuit?
No. The well-known Volkswagen water pump class action settlement and related warranty extension cover the main engine water pump and thermostat housing, which is prone to cracking and leaking coolant. This auxiliary pump is a separate component with a different function and failure mode.
Can I replace the auxiliary water pump myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical skill. It involves draining some coolant, locating the pump (often low on the front of the engine), disconnecting hoses and an electrical connector, and swapping the part. You will need to properly bleed the cooling system afterward to prevent air pockets.
🎬 Watch: Step-by-step Jetta water pump replacement walkthroughWill the car overheat if I don't replace it?
No, a failed auxiliary water pump will not cause the engine to overheat. The main water pump handles primary engine cooling. However, you will not have cabin heat, and on turbo engines, the long-term health of the turbocharger could be affected by improper cooling after shutdown.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5Q0965567N 5G0965567A 5Q0965567 2Q0965567 5N0965561A

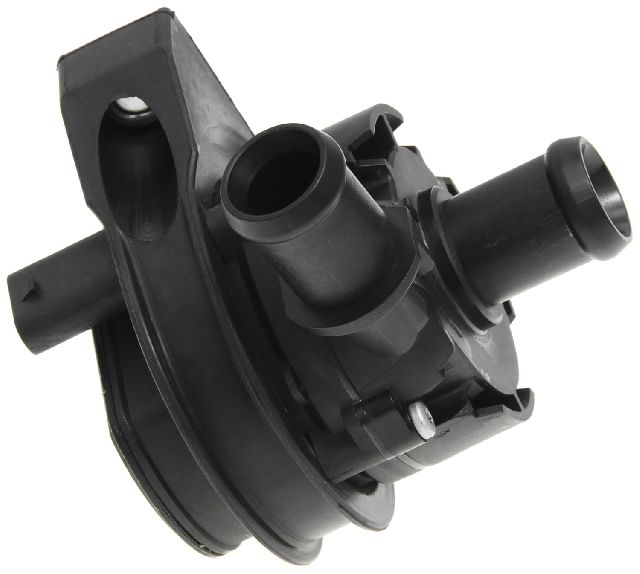

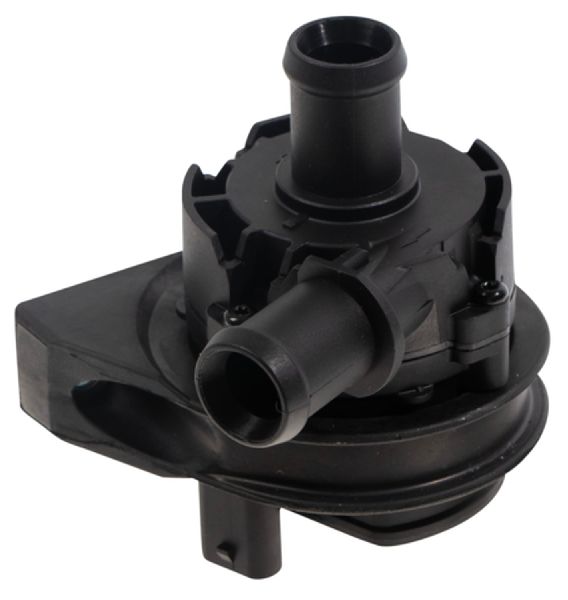

Electric centrifugal pump, typically with a 2-pin or 3-pin electrical connector. Controlled by the vehicle's ECU for cabin heating and turbocharger cooling.
