Audi A3 Engine Coolant Thermostat & Housing Guide (2015-2023)
Understand the common thermostat and water pump issues in your Audi A3 before you buy a replacement part.
- The thermostat and water pump are a single integrated unit on the 2015-2023 Audi A3 and must be replaced as a complete assembly.
- The original OEM plastic housing is a known failure point, prone to cracking and causing coolant leaks.
- Symptoms include a low coolant light, overheating, a sweet smell, or visible pink/purple coolant residue under the intake manifold.
- When replacing, it is critical to also replace the small water pump drive belt and use the correct G13-type coolant.
A Known Point of Failure
If you own a 2015-2023 Audi A3 with the 1.8T or 2.0T engine, the water pump and thermostat assembly is a well-documented weak point. The original component uses a thermoplastic (plastic) housing that is known to become brittle and crack from constant exposure to heat and coolant. This issue is so widespread that it has resulted in class-action lawsuits against Volkswagen and Audi. Leaks often start small, but can lead to major engine damage if ignored.
Symptoms of a Failing Thermostat Assembly
A failing thermostat or housing on your A3 will give you clear warning signs. You should stop driving and inspect the vehicle if you notice these symptoms.
- Low Coolant Warning Light: This is often the first sign. You may see the warning on your dashboard before 🎬 Watch: How to diagnose and fix a low coolant warning you ever see a puddle on the ground.
- Visible Coolant Leaks: You may find pink or purple dried coolant residue on top of the transmission or under the intake manifold. As the leak worsens, you might see puddles of coolant under the car.
- Engine Overheating: If the thermostat fails closed or coolant levels are too low, the temperature gauge will climb into the red. Pull over immediately to prevent engine damage.
- Engine Running Too Cold: If the thermostat is stuck open, the engine will take a very long time to warm up, or the temperature gauge may not reach the normal middle position. This can trigger a Check Engine Light with code P0128.
- Sweet Smell: The smell of maple syrup from your engine bay or through your vents is a classic sign of leaking coolant. 🎬 See a real-world example of an A3 losing coolant
OEM Plastic vs. Aftermarket Options
The original Audi part is made of plastic, which is the root of the problem. Many owners and mechanics consider aftermarket assemblies with aluminum housings to be a significant upgrade for durability. However, the quality of aftermarket parts can vary. OEM-supplier brands like Behr are a safe bet, while performance brands like Mishimoto may offer enhanced cooling at a higher price. Economy brands like Motorad are available, but some users report mixed reliability. It is critical to replace the entire assembly (water pump and thermostat housing), not just one component.
Choosing the Right Aftermarket Thermostat Assembly
When shopping for a replacement, you will find several options. It is highly recommended to purchase a complete kit that includes the assembly, new seals, and the small drive belt.
- Good (Economy): Motorad - A budget-friendly option. While Motorad is an OEM supplier for some carmakers, community feedback on aftermarket quality is mixed. It may be a viable short-term solution.

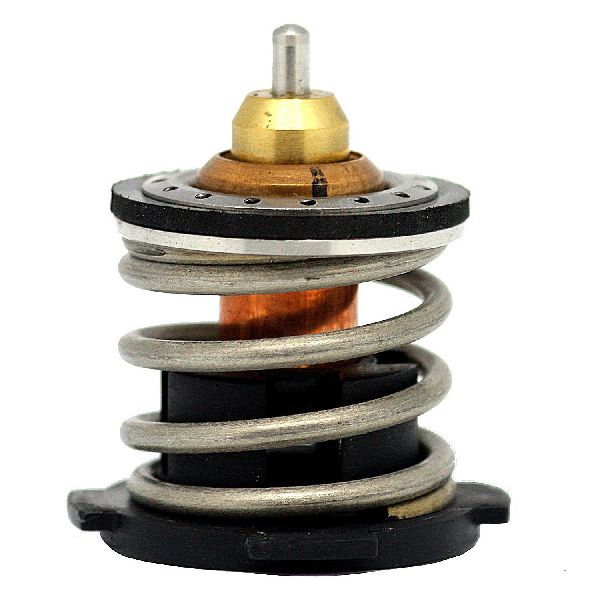

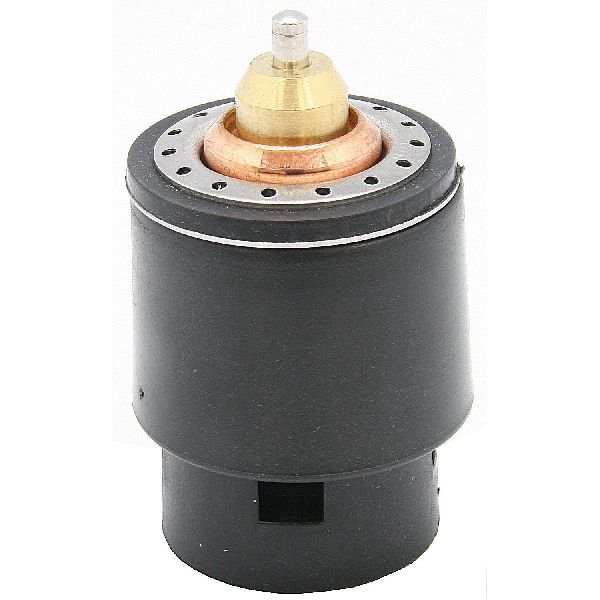

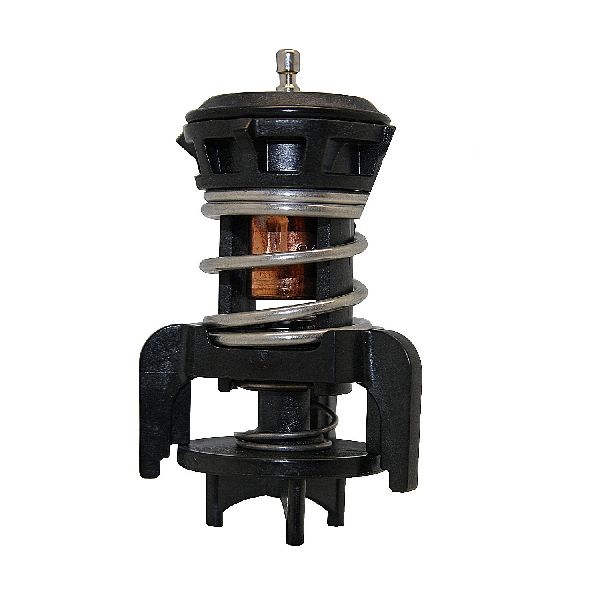

- Better (OEM Supplier): Calorstat by Vernet - Calorstat is a well-regarded European brand that supplies parts to many automakers. Choosing a part from an OEM supplier like Calorstat or Behr often provides a good balance of quality and price, similar to the original part without the dealer markup.
- Best (Performance Upgrade): Mishimoto - Known for performance cooling products, Mishimoto may offer thermostat assemblies with upgraded materials, such as full metal housings, designed to be more durable than the OEM plastic. This is often the choice for enthusiasts looking for a long-term solution, though it comes at a premium price.
Cost of Replacement
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Assembly | $15.91 - $93.88 |
| New OEM Assembly | $250 - $460 |
| Shop Labor | $400 - $800 |
Pro Tip: Replace as a Kit
Always replace the water pump, thermostat housing, and the small water pump drive belt at the same time. They are all located together, and the labor to access them is significant. 🎬 Watch this step-by-step DIY replacement guide for the A3 Replacing them all at once prevents having to do the same job twice when another part of the old assembly fails.
Frequently Asked Questions (FAQ)
Do I have to replace the water pump with the thermostat?
Yes. For the 2015-2023 Audi A3, the thermostat is integrated into the same housing as the water pump. They are sold as a single assembly and must be replaced together. Attempting to replace only one part is not possible and would not address the common failure of the plastic housing itself.
Is there a recall for the Audi A3 thermostat housing?
While there have been class-action lawsuits and some warranty extensions related to the water pump/thermostat assembly on VW and Audi vehicles, there is no universal, open safety recall for this specific part on all 2015-2023 A3 models as of early 2024. There was a recall for an auxiliary electric coolant pump on some older models, but this is a different part. You can check for recalls specific to your vehicle's VIN on the NHTSA website.
What is a TSB? Is there one for my A3's coolant leak?
A Technical Service Bulletin (TSB) is a document from the manufacturer to its dealers about known issues and recommended repair procedures. Audi has issued TSBs, such as 2071515/1 and 2061604/5, that address coolant leaks from the coolant pump and thermostat housing area on 2.0T engines, including the A3. This confirms that Audi is aware of the problem. A TSB is not a recall and does not mean the repair is free if your vehicle is out of warranty.
Why is the OEM part made of plastic?
Automakers use plastic composites for many engine components to save weight, reduce manufacturing costs, and integrate complex shapes. While these plastics are designed to be durable, the constant exposure to high temperatures and corrosive coolant in the A3's cooling system often leads to premature failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06L121111H 06L121111G 06L121111J 06L121111K 06L121111L 06L121012A 06K121011
Integrated thermostat, water pump, and housing assembly. Electronically controlled. Typically includes main housing, thermostat, water pump, temperature sensor, and seals. Driven by a small belt off a balance shaft.
